Overview

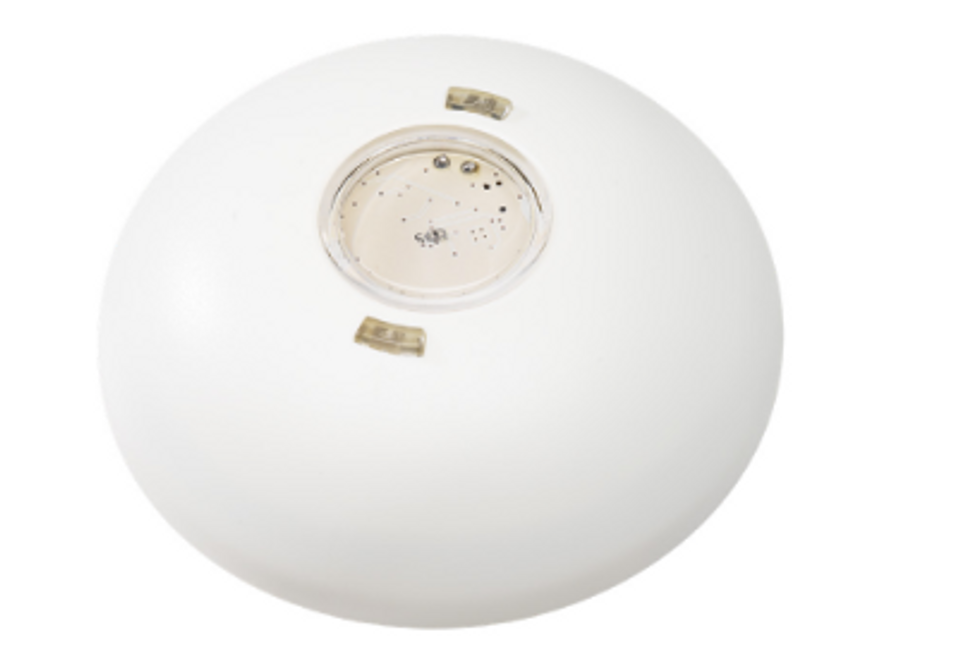

Having the lights on full in an already well-lit area means wasted energy and larger electric bills. Unison Paradigm Light Sensors are the sensible way to solve those problems and lower energy expenditures. The Light Sensors have a neutral look that easily blends into their surroundings. The sensors are ready to go in their standard form, or you can detach the sensor’s RemoLux head from the controller, creating a remote sensor. It is perfect for atriums and other spaces with high ceilings. The Light Sensor can also be installed indoors or outdoors.

APPLICATIONS

• Houses of worship
• Education
• Hospitality
• Healthcare facilities
• Office buildings
• Conference rooms
• Meeting rooms
• Retail

FEATURES

• Sensor controller with or without integrated Light Sensor
• RemoLux: The Light Sensor can be mounted within the controller housing or remotely
  • - Remote sensors connect using Belden 8471 or two #16 AWG wires
  • -A filler plate is provided for use with the controller when remoting the Light Sensor.
• DuaLux: Supports up to two sensors to average light levels in large areas
• Single Light Sensor for indoor, outdoor, and atrium use
• Software configurable to activate or deactivate any Paradigm system function
• LinkConnect: two-wire, topology-free bus for power and communication
• Each sensor counts as one station with up to two light heads
• Available in white and black finish
• Supports daylight harvesting (switched and dimmed)

REGULATORY AND COMPLIANCE

• UL and cUL Listed
• CE Certified
• Compliant with California Title 24 when properly installed and configured

Specifications

FUNCTIONAL

• On and Off set-points configured using LightDesigner software
• Programmable control for any circuit, zone, group, or space
• Configurable delay/offset
• Light Sensor can be mounted within the controller housing or remotely; a filler plate is included for remote head applications
• Support for up to two sensors with averaging of light levels
• Light Sensor can be used for indoor, outdoor, and atrium applications

MECHANICAL

• Constructed of injection-molded, ABS plastic in Pure White (RAL 9010) or Black (RAL 9004)
• Electronics assembly and mounting plate included
• Two cantilevered configuration buttons
• No visible means of attachment
• Surface- or backbox-mountable using included mounting plate
  • Supports drywall, plaster, wood, and concrete
  • Mounts to any standard electrical box (supplied by other manufacturers)
  • Mounts to compressed-fiber ceilings using wire-form adapter
• Supports internal or remote mounting of light sensor
  • Remote Light Head mounts to any half-inch or three-quarter knockout
• Remote Heads use conformal-coated circuit boards resistant to corrosion from moisture
  • IP65 rated when used with a weather-tight backbox

ELECTRICAL

• Controller connects via LinkConnect control network utilizing low-voltage Class 2 wiring
  • Topology-free and polarity-independent wiring over Belden 8471 or equivalent and one #14 AWG ESD drain wire
  • Wiring may be bus, loop, home-run, or any combination of these
• Light Sensors, when remoted, connect using two #16 AWG wires up to 1,000 ft (304 m) away from controller

ENVIRONMENTAL

• Sensor Head ambient room temperature: -25 to 65°C / -13 to 149°F
• Sensor Controller ambient room temperature: 0 to 65°C / 32 to 149°F
• Ambient humidity: Maximum 90% non-condensing
