Overview

Buildings waste electricity as a result of lights being left on in an unoccupied room. Occupancy and Vacancy Sensors are a convenient and simple solution for any facility to eliminate wasted energy by automatically turning off lighting loads when a room is empty. The low-profile, sleek sensors can be installed anywhere to provide uninterrupted, 24/7/365 operation, without affecting the look and beauty of their surroundings.

APPLICATIONS

• Houses of worship
• Education
• Hospitality
• Healthcare facilities
• Office buildings
• Conference rooms
• Meeting rooms
• Retail

Features

• Supports for occupancy or vacancy detection as required
  • Mode programmed via commissioning software
• Passive infrared (PIR) and Acoustic sensing technology
• Two mounting options available:
  • Ceiling-Mount
  • Wall-Mount
• Multiple Lensing options available
• Walk-thru mode for coverage verification
• Field-installed coverage masks (Ceiling only)
• LinkConnect: two-wire, topology-free bus for power and communication
• Ceiling Sensor available in black and white
• Wall Sensor available in cream, black and white

REGULATORY AND COMPLIANCE

• UL and cUL LISTED
• CE marked

Specifications

FUNCTIONAL

• Supports software-configured Auto-On/Auto-Off functionality (occupancy sensing) or Manual-On/Auto-Off (vacancy sensing) functions

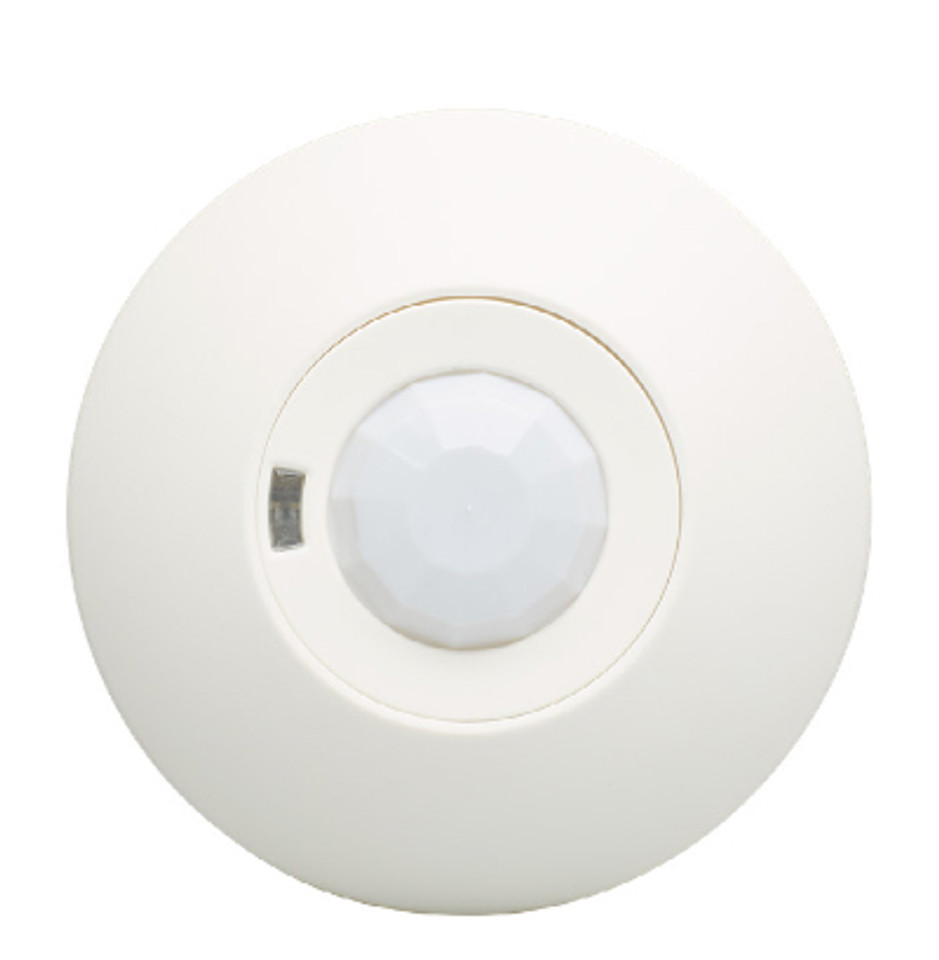

• Ceiling Sensor:
  • 360-degree coverage pattern
  • Includes configurable coverage masks
  • Small room: 450 sq. ft. at 8’ ceiling, 800 sq. ft. at 12’ ceiling
  • Large room: 1800 sq. ft. at 8’ ceiling, 3000 sq. ft. at 12’ ceiling
  • High ceiling: 300 sq. ft. at 10’ ceiling, 7000 sq. ft. at 40’ ceiling
• Wall Sensors
  • Wide: 60’ coverage at 7-10’ mounting height. 140 degree field of detection
  • Narrow: 16’ by 75’ coverage pattern at mounting height of 7-10’. 40 degree field of detection
• Supports walk-thru mode for verifying coverage area
  • Sensor lens illuminates for walk-thru and test mode operation
  • Red illumination for PIR detection
  • Green illumination for Acoustic Detection
• Sensor coverage tested to NEMA WD 7-2000

MECHANICAL

• Constructed of injection-molded, ABS plastic in Pure White (RAL9010), Black (RAL 9004) or Cream (RAL 9003 - Wall only)
• Electronics assembly and mounting accessories included
• Accessible configuration buttons
• No visible means of attachment
• Ceiling Mount:
  • Surface- or box-mountable
  • Supports drywall, plaster, wood and concrete mounting
  • Mounts to standard electrical box (supplied by others)
  • Mounts to compressed fiber ceilings with included wire mounting option
• Wall Mount:
  • Flush-mount to industry standard backbox, RACO 690 or equivalent

ELECTRICAL

• Connect via LinkConnect two-wire control network utilizing low-voltage Class 2 wiring
  • Topology-free and polarity-independent wiring over Belden 8471 or equivalent and one #14 ESD drain wire
  • Wiring may be bus, loop, homerun or any combination of these
• All station terminations utilize removable connectors

ENVIRONMENTAL

• Ambient room temperature: 0–40° C (32–104° F)
• Ambient humidity: Maximum 90% non-condensing
