Overview

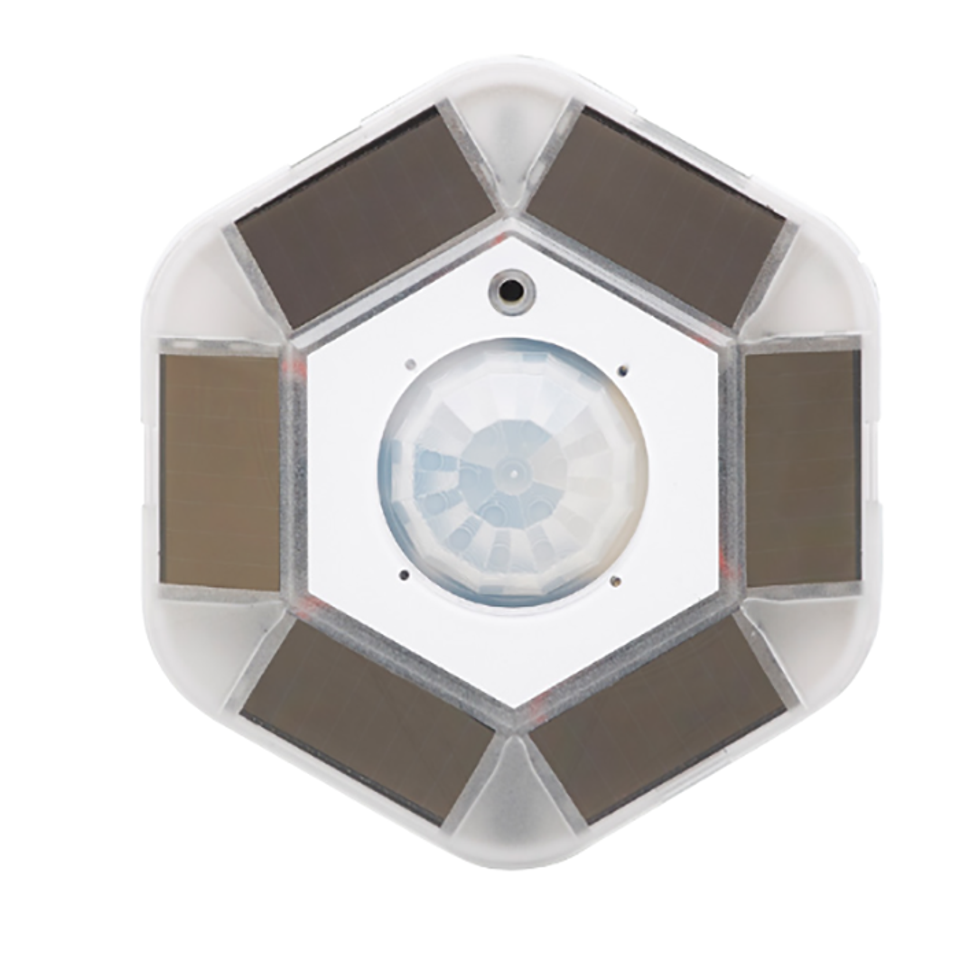

The MOS-IR is a 360-degree ceiling-mount sensor that uses passiveinfrared (PIR) technology to detect occupancy. It uses wirelesstechnology to communicate with Echoflex controllers to efficientlymanage lighting and increase energy savings.

The sensor harvests solar energy from both natural and artificiallight sources. Its efficient energy management system eliminatesthe need for batteries in typical workplace settings. The MOS-IR issuitable for vacancy applications where energy codes require lightsto be manually turned ON and automatically shut OFF or dimmedwhen the space is vacant. Precision circuitry also allows it to provideimmediate response to new occupancy states, making it an idealsolution for partial-ON/auto-ON applications.

The MOS-IR incorporates test features that provide installers withthe ability to ensure sufficient energy harvesting, and occupancydetection without extra tools or software. Sensitivity settings for PIRcan be adjusted to eliminate false tripping and ensure the right levelof detection.

The sensor has three different lenses to provide suitable PIR coverage:lenses A and B are intended for office applications optimized forceiling heights of 2.4 to 2.7 m (8 to 9 ft). Lens C is intended forhigh bay applications, approximately 12 m (40 ft) ceiling height,and is equipped with a battery to guarantee consistent operation inlocations that have low light and are difficult to access.

APPLICATIONS

• Education: Classrooms, administration, corridors, stairwells
• Hospitality: Banquet halls, lobbies
• Healthcare: reception, administration
• Commercial office: Conference rooms, private offices, open office space, corridors, stairwells
• Commercial warehouse: high bay

FEATURES

• Solar powered, wireless, PIR occupancy/vacancy sensor
• Ceiling mounted with 360° of detection
• Supports partial-ON and partial-OFF applications for energy code compliance
• Adjustable PIR sensitivity to fine-tune detection level
• Walk-Test feature allows installers to test operation and installation location
• Integrated LEDs indicate solar harvesting light level
• Operates in low light, 20 lux (2 fc), and up to 9 days in darkness without a battery
• Optional battery start assist
• Reliable radio reception range of 24 m (80 ft) - commercial office spaces (typical), up to 100 m (330 ft) line-of-sight
• Available in 902 MHz and 868 MHz frequencies
• Installation options: integrated magnets for T-bar ceiling, wire strap, screw mount, or double-sided tape (not included)

Specifications

HARDWARE

• Power supply: Integrated solar cell
• Operational light level: 20 lux, (2 fc) minimum
• Charging light level, minimum: 100 lux, (10 fc)
• Charging period: 6 hours to maximum charge at 320 lux (32 fc)
• Operating life at maximum charge: 9 days in 0 lux, no battery
• Battery:

  • CR2032 coin cell
  • Battery life expectancy: Shelf life as defined by the battery manufacturer or five years, whichever occurs first
  • MOS-IR-A and MOS-IR-B: not included, optional start assist
  • MOS-IR-C: included and required
• Inputs: Teach button
• Outputs: LEDs - green, blue and red

EQUIPMENT PROFILES

• EEP A5-07-01: Occupancy Sensor: PIR on, PIR off. Supply voltage monitor

MOUNTING

• Integrated magnets*, wire bracket*, screws (not supplied), double-sided tape (not supplied)

  • *902 MHz models only

COMMUNICATIONS

• 902 MHz (U) or 868 MHz (Y) radio frequencies
• Wireless range of up to 24 m (80 ft) - commercial office spaces (typical), up to 100 m (330 ft) line-of-sight
• Integrated whip antenna
• Message transmission: On motion or on heartbeat period
• Message heartbeat period: Minimum 100 seconds

ENVIRONMENTAL

• Operating temperature: -10°C to 45°C (14°F to 113°F)
• Storage temperature: -25°C to 65°C (-13°F to 149°F)
• Relative humidity: 5%–92% non-condensing

REGULATORY AND COMPLIANCE

• Complies with UL 916
• ANSI / ASHRAE / IES Standard 90.1
• International Energy Conservation Code - IECC
• FCC Part 15.231 - Remote Control Transmitter
• ISED (Industry Canada) RSS-210
