Overview

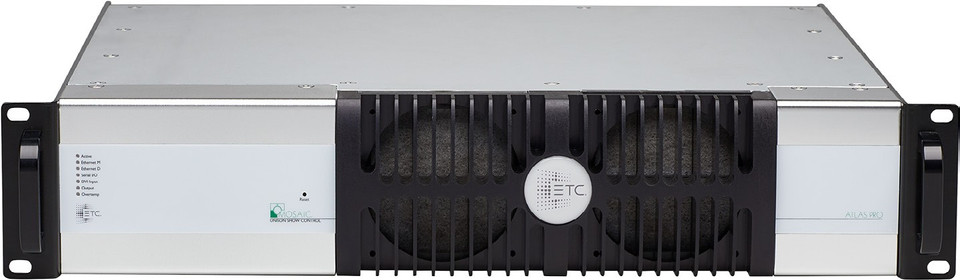

Mosaic Atlas Pro controls your largest projects. Mapping large LED pixel arrays for building facades, bridges, and presentation walls is now simple. Play video content across multiple pixel arrays, or incorporate a range of creative, generative effects. Mosaic Atlas is available in capacities ranging from 512,000 to more than 1,500,000 addresses from a single controller.
Mosaic Atlas Pro communicates with other network devices using Ethernet protocols or you can a play digital video content across your array from locally stored HD media files or an onboard live video input. Because Atlas Pro integrates with all other Mosaic family products, it is the perfect addition for any expanding pixel array installation.
APPLICATIONS
- High pixel count mapping
FEATURES
- Playback for a wide range of fixture types and video panels
- Pixel mapping for video effects
- DMX-over-Ethernet data output
- Built-in triggering interface with conditional logic and timeclock based controls
- VideoConnect: digital-video input for live-video mapping
- RealEngine: ensures an accurate representation of your show whether in software simulation or when played live to connected controllers
- DesignerAccess: internal web server with active pages providing status, configuration information, remote monitoring, and remote show uploads
- Programmed and configured using Mosaic Designer Software
REGULATORY AND COMPLIANCE
- cETLus Listed
- Conforms to Part 1 UL-62368-1
- Certified to CAN/CSA-C22.2 No. 60950-1
- CE Compliant
- California Title 20/24 compliant
Specifications
GENERAL
- Support for two large pixel map of fixtures
- Additional video layers for text, simple overlays, or lower resolution clips, subject to hardware performance limit
- Live manipulation of content position and rotation
- Support for sACN, KiNet, Pathport, Art-Net and digital video
- Supports triggering from sACN and Art-Net level input
- Battery-backed real-time, astronomical and lunar timeclock
- Triggering and show-control integration using optional remote devices
- Five-year warranty
FUNCTIONAL
- DVI video (HDMI compatible) input for live video at up to 1080p 30fps with support for all major formats including 264/MPEG- 4 AVC, MJPEG and QuickTime
- Scalable up to 40 Mosaic Controllers using standard Ethernet networking
- Project data stored in non-volatile, solid-state memory
- Resumes output automatically upon receiving power
- Supports conditional logic and scripting for integration
- Software and configuration upload using Ethernet
- Resumes playback automatically upon receiving power
- Ethernet integration with Mosaic RIO modules, Button Stations, and other Mosaic Show Controllers
- Integrated web server provides active monitoring and remote triggering using Ethernet
MECHANICAL
- Two E.I.A 19 in rack unit tall
- Rugged aluminum enclosure with integrated heatsink
- Plug-able rear panel data and power connections
ELECTRICAL
- 100–240 VAC, 50/60 Hz power input using IEC connector
- Typical power consumption 40 W, maximum 100 W
- Three 10/100/1000 Ethernet ports for data output, programming and system integration
- One DVI video input port for live video input
- One DVI video output to video based arrays
- One DB9 port for RS232 serial integration
THERMAL
- Ambient temperature: 0°C to 50°C (32°F to 122°F)
- 10%–50% relative humidity, non-condensing
