Overview

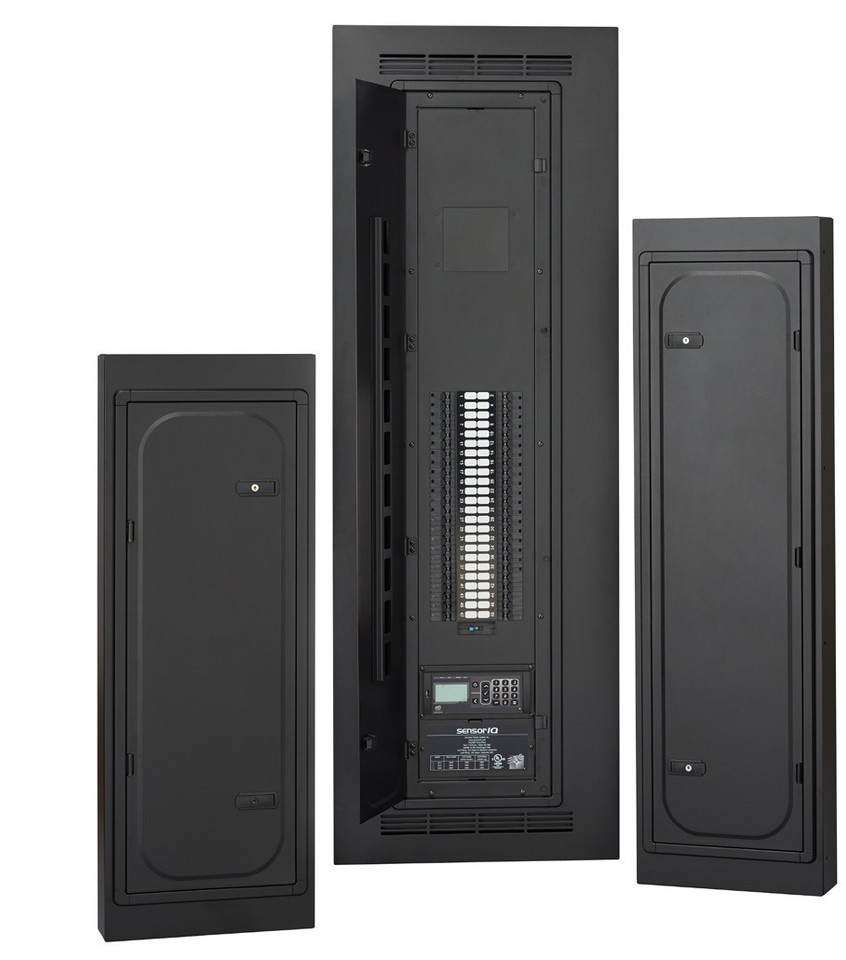

ETC’s Sensor IQ Intelligent Breaker System provides mains-fed power distribution for up to 48 branch circuits in the industry’s most compact footprint. Sensor IQ breakers combine high-inrush rated overcurrent protection, switched power control, and power usage/breaker status reporting in a single device. With built-in station and sensor support via contact input, DMX and Ethernet connectivity, and optional 0–10 V dimming or DALI output, Sensor IQ panels easily integrate into a broad range of systems and applications.

APPLICATIONS

• Theaters
• Schools
• Houses of worship
• Conference centers
• Studios
• Arenas and stadiums

FEATURES

• Mains Feed: Three-phase 120/208 V four-wire plus ground or single (bi) phase 120/240 V three-wire plus ground
• 12-, 24- or 48-position breaker subpanel
• Breakers
  • Hydraulic magnetic breaker with high inrush trip curve
  • 22 kA SCCR (up to 65 kA series rated with main breaker)
  • Freely mix one-, two- and three-pole breakers up to 30 A
  • Integrated air-gap relay switching
  • Integrated on/off/tripped and connected load feedback
  • No power required for handle operation at the breaker
  • 20 A single-pole intellingent breakers are suitable for plug load control
• DMX and Ethernet (sACN) control of preset and sequence playback
• Local user interface provides:
  • Panel configuration
  • Preset and sequence programming and playback
  • Individual channel control
• Built-in Ethernet port
• Available 0–10 V, contact input, and DALI control cards
• UL924 Listed emergency control bypass with load shedding

Specifications

REGULATORY AND COMPLIANCE

• Breakers Listed to UL 489
• Enclosures listed to UL 67, UL 508, UL 924
• Complies with ANSI DMX512-A standard
• Complies with ANSI E1.31 streaming ACN standard

USER INTERFACE

• Graphical display
• Button interface
  • 0–9 number entry
  • Up, down and back-arrow navigation with enter
  • Test shortcut for local activation of preset, sequence and
• set level overrides
• USB interface for uploads of setup and software updates

BREAKER

• Hydraulic magnetic breaker maintains trip curve through entire thermal range, reducing nuisance tripping Bus connection type: Stab on
• One, two or three poles
• UL 489 Listed
• 15, 20 or 30 A
• 50/60 Hz frequency
• Inrush-pulse tolerance: 25 times rated current for half-cycle
• Integrated hall-effect sensors detect contact positions
• Integrated solenoid for remote operation
• Trips on overload even if handle is forcibly held in the “on” position
• Load lugs accept 14-6 AWG load wiring
• Multi-conductor rated output terminal
• Integral mechanically held air gap relay
• Integral current sensing
• Integral position and trip sensing
• Supports manual control of relay state using breaker handle without power
• Control and status provided by contact pads directly at bottom of the breaker case. No external wires or connections required for control or feedback
• Remote Feedback for breaker state, breaker type, current draw and phase voltage
• Visible state indication:

MECHANICAL

• Enclosure constructed of 16-gauge steel finished in black, fine-textured, scratch-resistant powder coat paint
• Removable outer panel includes integral locking door to limit access to electronics, breakers and local relay overrides
• Full front access with no side clearance required
• Removable covers for access to Class 1 and Class 2 wiring
• Complies with California building code - seismic zone four

ELECTRICAL

• Mains feed power input to support 120/208 V three-phase four-wire or 120/240 V bi-phase three-wire plus ground•
• Max current input: 100 A at 12 circuits, 200 A at 24 circuits, and 400 A at 48 circuits
• Quiescent draw: <10 W with relays at steady state
• Optional isolation between chassis and equipment grounding
• Short-circuit current rating: 22,000 A or 65,000 A symmetrical (see chart a right)
• Overloads occurs at 50 operations of 600% of rated current
• Integrated current transformer
• Current measurement range of 1–30 A. The maximum crest factor of primary current is 2.5
• Feeder entry supported at top or top side
  • Bottom or bottom side entry supported by rotating enclosure during installation
• Load wire entry supported on top, sides or bottom

ENVIRONMENTAL

• Thermal: 0°C to 40° C (32°F to 104° F) operating temperature
  • 24 A circuit (30 A breaker) - 1.4 W, 4.8 BTU/hr
  • 16 A circuit (20 A breaker) - 1 W, 3.4 BTU/hr
• Humidity; 5%–95%, non-condensing
• Complies with ESD immunity to IEC standard 1000-4-2

CONTROL ELECTRONICS

• Input: 120–277 V (+/-15%), 50/60 Hz, <16 A
• Multi-tap transformer terminals accept up to 12 AWG wire
• Control wiring terminations:
  • Control terminals accept maximum of 12 AWG wire
  • Control wiring exiting the panel are Class 2
  • All control terminations utilize removable connectors

FUNCTIONAL

• System-Wide control
  • DMX or sACN input
    • Per-circuit patching
    • Per-circuit threshold
    • 0–200 prioritization
  • Configurable data loss behavior:
    • Play preset; Hold last look; Wait and fade
  • UL 924 emergency lighting with load shedding
    • Load shedding requires a UPS Control Backup Wiring Kit (7131K1817) and Uninterruptable Power Supply (UPS) by others
    • UPS to supply 800 W–2400 W AC power to control processor
  • Application/Space segmented Control
    • Space segmenting: up to 16 spaces per panel
    • Power Sequencing: one 16-step sequence per space
    • -  Presets: up to 64 per space configurable via local UI
    • - Zone control: up to 16 zones per space
  • Monitoring Per Circuit:
    • Breaker-trip notification
    • Relay state
    • Current draw, phase voltage, and energy usage
  • Monitoring Per Space:
    • Active sequences, presets, and clock events
    • Zone levels

ACCESSORIES

• 0-10 Dimming Option
  • 24 outputs of 0–10 V sink dimming control rated for 100 mA per output
• Contact Input Option
• 24 dry contact inputs which can be used to:
  • trigger presets and sequences, which will play at the priority configured for architectural sources, or;
  • directly control one or more outputs. The priority of these outputs is configurable. If nothing is configured, the last action takes precedence
• DALI Control Option
  • 24 control loops of broadcast DALI control
  • Each loop supports up to 64 ballasts
  • External DALI power supply required
• RideThru Option
  • Short-term power backup of control electronics
  • Automatically engages when power is lost
  • Recharges during normal power operation
• UPS Backup Kit for Load Shedding
  • Allows Power Control Processor to be powered via external
  • UPS (by others)
  • Required for load shedding applications
  • UPS provides power to drive relays off when normal power is lost
  • UPS for each Sensor IQ panel must by UL 924 Listed and
  • rated for a minimum of 200 W peak load
• Branch Circuit Fuse Kit
  • Aids engineers in selective coordination* of
  • emergency circuits
