Overview
The Paradigm Network Station Power Supply provides station bus power and data for up to 63 stations with only a network connection to your Paradigm Processor. Adding stations to your system that are outside the distance limit of the LinkConnect bus is simple by adding a P-NSPS-D anywhere you have a network port. Each Paradigm Architectural Control Processor (P-ACP) can support up to five Network Station Power Supplies and up to 128 total stations and sensors.
Applications
- Schools
- Houses of worship
- Conference centers
- Themed environments
- Retail and hospitality spaces
- Entertainment spaces
- Cruise ships
Features
- Receives RJ45 via Cat6 cable from an F-Drive CC or FTW output card

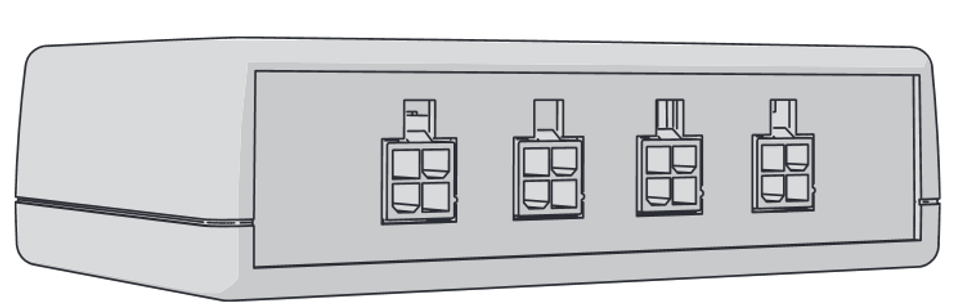

- Provides four outputs, one for each channel, via Molex, two- pin terminal, or RJ45 connector depending on model
- RJ45 model supports ArcSystem Navis White or Fade to Warm
- Molex model supports ArcSystem Pro One-Cell, Pro One-Cell
- Small, and Pro One-Cell Micro White or Fade to Warm luminaires
- Terminal model supports constant current loads requiring 200–700 mA
