Overview

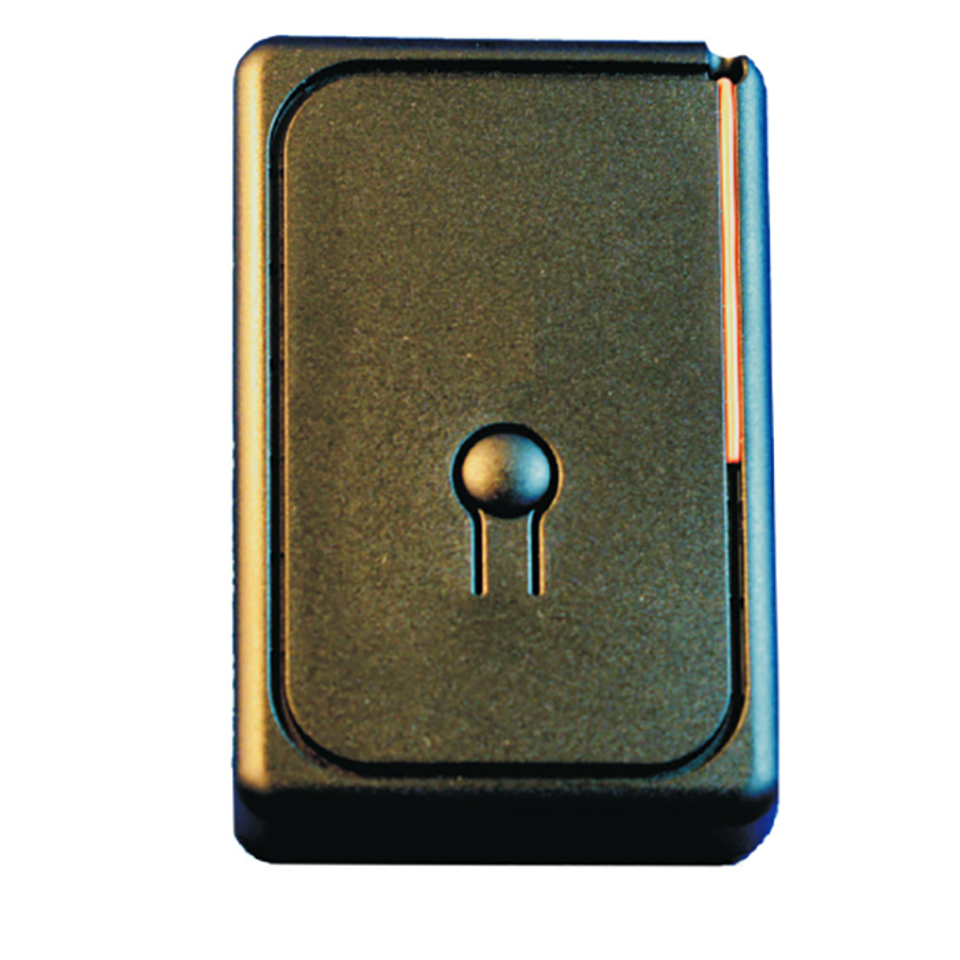

Echoflex’s ERUSB-S Serial Interface provides access to radio transmissions from a PC or laptop computer. This interface allows PC based applications to monitor and manage Echoflex wireless devices.

The ERUSB-S plugs directly into a computer with a USB port. On-board LEDs indicate telegram traffic and a power LED provides operational status.

The ERUSB-S is available in 902 MHz and 868 MHz (also 928 MHz by special order) and comes with a 1M (3 feet) USB cable.

Specifications

Technical Specifications

• Power: USB 2.0 Port

Communications

• Radio Frequency: 902 MHz(U), 868 MHz(Y)
• Antenna: Whip
• Transmission Range: 24 m (80 ft) - commercial office spaces (typical), up to 100m (330 ft) line of sight

Mechanical Specifications

• Operating Temperature: -25°C to 65°C (-13°F to 145°F )
• Relative Humidity: 5% to 92% RH (non-condensing)
• Weight: 34 grams (1.2 oz)
• Dimensions: 82 x 54 x 17 mm (3.2 x 2.1 x 0.7“
