Overview

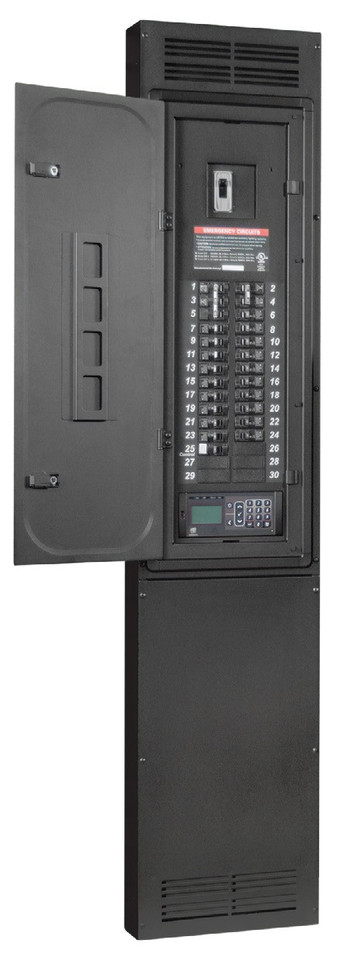

The Unison Echo Relay Panel is a control-oriented power center built with today and tomorrow’s lighting loads in mind. It supports up to 24 relays with integral branch breakers, power-usage reporting and sophisticated control inputs. With built-in station and sensor support via contact input, DMX and Ethernet connectivity, and optional 0–10 V dimming or DALI output, Echo Relay Panels easily integrate into a broad range of systems and applications.

APPLICATIONS

• Theaters
• Schools
• Houses of worship
• Conference centers
• Retail shops and restaurants

FEATURES

• Main Feed relay panel with support for 277/480 V or 240/415 V three-phase four-wire plus ground
• 24-position relay panel with support for 1-pole relays
• 30-position breaker subpanel with support for 1-pole breakers
• DMX and Ethernet (sACN) control of preset and sequence playback
• Local user interface provides:
  • Panel configuration
  • Preset and sequence programming and playback
  • Individual channel control
• Built-in Ethernet port
• Available 0–10 V, contact input, and DALI control cards
• UL 924 Listed emergency control bypass with load shedding

Specifications

REGULATORY AND COMPLIANCE

• cULus Listed
• UL 508 Listed
• UL 924 Listed
• Complies with ANSI E1.11 DMX512-A standard
• Complies with ANSI E1.31 streaming ACN standard

USER INTERFACE

• Graphical display with LED backlight
• Button interface with:
  • 0–9 number buttons
  • Up, down, back and enter navigation buttons
  • “Light bulb” test button for local activation of preset,
• sequence and set level overrides
• USB interface for upload of setup and software updates

MECHANICAL

• Enclosure constructed of 16-gauge steel finished in black,fine-textured, scratch-resistant powder coat pain
• Door options available for surface- or recess-mount applications.
  • Flush-mount door extends 1 inch beyond all panel edges to
• hide wall cutout
• Removable outer panel includes integral locking door to limit access to electronics, breakers and local relay overrides
• Full front access with no side clearance required
• Removable covers for access to Class 1 and Class 2 wiring

ELECTRICAL

• Main feed power input supports 277/480 V or 240/415 V
• Separate wiring chambers for Class 1 and Class 2 terminations
• Max input current: 200 A
• Main circuit breaker support: 150 A and 200 A
• Short circuit rating: 14,000–65,000 A symmetrical (See chart at right)
• 20 A branch circuit breakers standard; 80% rated
• Inrush-pulse tolerance: 8–10.5 times rated current for halfcycle at 60 Hz

ENVIRONMENTAL

• Thermal: 0°C to 40°C (32°F to 104°F) operating temperature
  • Relays (all) - 39.28 BTU/hr
• Humidity: 5%–95%, non-condensing

RELAY RATINGS

• 20 A Ballast (HID)
• 16 A Electronic Ballast
• 20 A Tungsten
• 14 A Motor Load
• Isolation: 4000 V RMS
• State: Latching; mechanically held
• Life:
  • 100,000 cycles at full resistive load
  • 30,000 cycles motor, inductive, or tungsten
• Current-reporting accuracy: +/- 5% of connected load

CONTROL ELECTRONICS

• Input: 120–277 V (+/-15%), 50/60 Hz, <16 A
• Multi-tap transformer terminals accept up to 12 AWG wire
• Control wiring terminations:
  • Control terminals accept maximum of 12 AWG wire
  • Control wiring exiting the panel are Class 2
  • All control terminations utilize removable connectors

FUNCTIONAL

• System-Wide control
  • DMX or sACN input
    • Per-circuit patching
    • Per-circuit threshold
    • 0-200 prioritization
  • Configurable data loss behavior:
    • Play preset; Hold last look; Wait and fade
  • UL 924 emergency lighting with load shedding
• Application/Space segmented Control
  • Space segmenting: up to 16 spaces per panel
  • Power Sequencing: one 16-step sequence per space
  • Presets: up to 64 per space configurable via local UI
    • Zone control: up to 16 zones per space
  • Monitoring Per Circuit:
    • Breaker-trip notification
    • Relay state
    • Current draw, phase voltage, and energy usage
  • Monitoring Per Space:
    • Active sequences, presets, and clock events
    • Zone levels

ACCESSORIES

• 0–10 Dimming Option
  • 24 outputs of 0–10 V sink dimming control rated for 100 mA per output
• Contact Input Option
  • 24 dry conta ct inputs for direct control of relays
• DALI Control Option
  • 24 control loops of broadcast DALI control
  • Each loop supports up to 64 ballasts
  • External DALI power supply required
• RideThru Option
  • Short-term power backup of control electronics
  • Automatically engages when power is lost
  • Recharges during normal power operation
• Tamper-proof Hardware Kit
  • Special screw heads prevent access to panel interior
