Overview

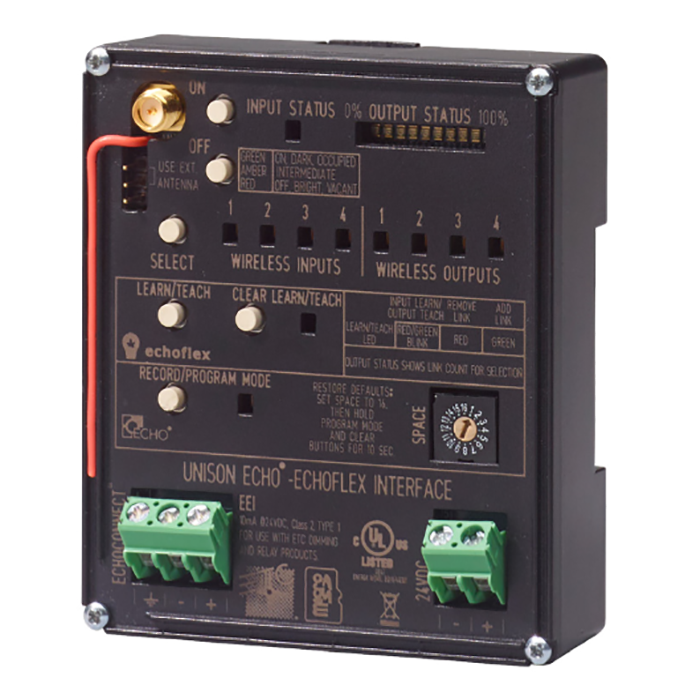

The Unison Echo-Echoflex Interface allows for wireless communication between Unison Echo and Echoflex control systems. When it’s not practical to run wires between every device in you building’s control system, the Echo-Echoflex Interface is the solution. Using the built-in 902 MHz radio the Echo-Echoflex Interface can transmit or receive wireless signals to communicate with any Echoflex control device within 24 m (80 ft). And since the Echo- Echoflex Interface is a DIN-rail-mount device, you can install it nearly anywhere.

APPLICATIONS

• Retrofits
• Hospitality
• Healthcare facilities
• Conference and meeting rooms
• Retail
• Houses of worship

FEATURES

• Four Echoflex product inputs to trigger Echo Presets
• Four Echo zone outputs to control Echoflex power products
• Onboard configuration and testing tools
• Input and output status indicators
• EchoConnect two-wire topology-free system gives you the
• freedom to easily place devices wherever they are needed
• Optional external antenna kit available

REGULATORY AND COMPLIANCE

• cULus Listed
• CE Compliant

Specifcations

FUNCTIONAL

• Receives wireless trigger from Echoflex system and translates it into an Echo preset trigger
• Receives zone level from Echo system and translates it into a wireless Echoflex command
• Compatible with Echo stations, senors, interfaces and power controllers
• Compatible with Echoflex station, sensors and a power controllers

MECHANICAL

• Buttons and LED indicators for wireless inputs and wired output configuration and status
• Five unit wide DIN Enclosure complies with DIN43880 (35/7.5 rail)
• Constructed of injection-molded black ABS plastic
• Connection for external antenna (provided separately)

ELECTRICAL

• Connects via two-wire EchoConnect control network through low-voltage Class 2 wiring + 24 VDC auxiliary power

  • Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
  • Two #16 AWG wires for 24 VDC auxiliary power
• Wiring may be bus, loop, homerun or any combination of these
• Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories
• Supports up to 500 m (1,640 ft) of control wiring
  • Up to 300 m (1,000 ft) using Cat5
• MicroSD card slot for firmware maintenance
• 902 MHz wireless radio
• 24 m (80 ft) open-air transmission range
• UL2043 Listed for use in plenum

THERMAL

• Ambient room temperature: 0° to 50°C (32° to 122°F)
• Ambient humidity: 5–95% non-condensing
