Overview

A powerful addition to the Echo family, the DMX Scene Controller uses snapshot technology to capture lighting looks and save them to connected Inspire control stations, simplifying customization and control of individualized zones and fixtures. Combined with EchoAccess or the Inspire Four-Button with Fader Station, the DMX Scene Controller can generate DMX and allows for intensity, hue, saturation and color temperature control.

APPLICATIONS

• Small theaters
• Hospitality
• Healthcare facilities
• Conference and meeting rooms
• Lobby spaces
• Retail
• Houses of worship

FEATURES

• DMX input for snapshot capture of lighting scenes
• Supports 32 presets of 512 DMX addresses
• Support for sequence playback of presets
• Support for Echo control of 16 patched DMX Zones
• Works with EchoAccess and Inspire Four-Button with Fader Station for live control of intensity, hue and saturation or color temperature of Echo zones
• Basic and custom-use modes
• Configurable Power On Behavior, DMX Loss Action and DMX Active Action
• Demand Response integration
• EchoConnect: two-wire topology-free system gives you the freedom to easily place stations wherever they are needed

REGULATORY AND COMPLIANCE

• cULusL Listed
• CE Compliant

Specifications

FUNCTIONAL

• Direct control or Recall prerecorded scenes for playback using DMX
• DMX input for snapshot recording up to 32 presets
• DMX output for up to 512 addresses
• Sequence playback of presets
• Use any Unison Echo station for preset or sequence playback
• Supports DMX pass-through for real-time output of incoming level when recording snapshots
• Meets USITT DMX-512A specifications
• Supports live control and recording for the following fixture profiles:
  • Intensity
  • RGBRGBA
  • RGBW
  • RGB_S (Selador Desire D22, D40, Source Four LED Series 1, Source Four LED Series 2)
  • RGB_SF (Desire D60)
  • IRGBS (ColorSource PAR, Spot)
  • CwWw, WwCW
  • CwMwWw, WwMwCW
  • ICwWw
  • ICwMwWw
• EchoAccess configurable Power On Behavior, DMX Loss Action and DMX Active Action
• Demand Response integration options

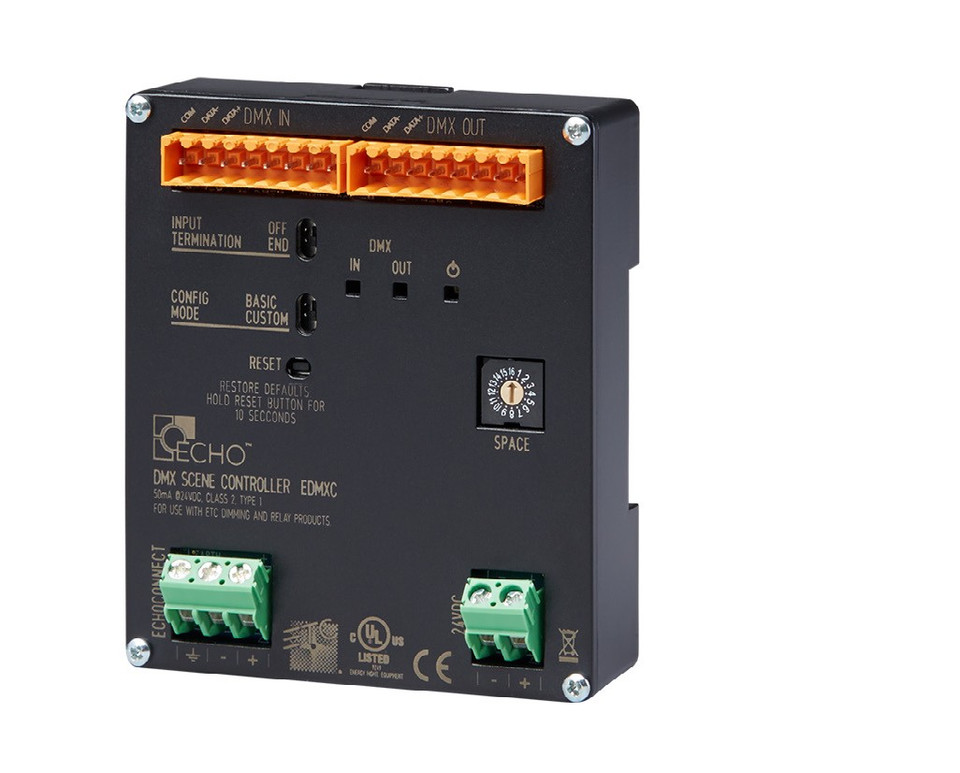

MECHANICAL

• One integrated DMX-input and one integrated DMX-output port
• Five unit wide DIN Enclosure complies with DIN43880 (35/7.5 rail)
• Constructed of injection-molded black ABS plastic
• Toggle switches for DMX-Termination and Config Mode
• DMX-In, DMX-Out and power indicators
  • Blue power indicator
  • Bi-color DMX activity indicator

ELECTRICAL

• Connects via two-wire EchoConnect control network through low-voltage Class 2 wiring + 24 VDC auxiliary power
  • Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
  • Two #16 AWG wires for 24 VDC auxiliary power
  • Max draw 150 mA at 24 VDC
• Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories
• Wiring may be bus, loop, homerun or any combination of these
• Supports up to 500 m (1,640 ft) of control wiring
  • Up to 300 m (1,000 ft) using Cat5
• MicroSD card slot for firmware maintenance

DMX PORTS

• Eight-position removable pluggable connectors for in and out ports
  • Connectors designed for use with Belden 9729 (or equivalent)
  • Optional headers available for use with Belden 1583A (or equivalent)
• Input is fully optically isolated from controller electronics
• Withstands fault voltages up to 250 VAC
• Integrated DMX termination

THERMAL

• Ambient room temperature: 0° to 50°C (32° to 122°F)
• Ambient humidity: 5–95% non-condensing

ECHOACCESS CONFIGURATION OPTIONS

• DMX Output Refresh Rate
• Preset Timings
• Power On Behavior
  • Available actions include Preset, Sequence, Last Look, None.
• DMX Loss Action
  • Available actions include Preset, Sequence, None
• DMX Active Action
  • Available actions include Preset, Off, Sequence, None.
