Overview

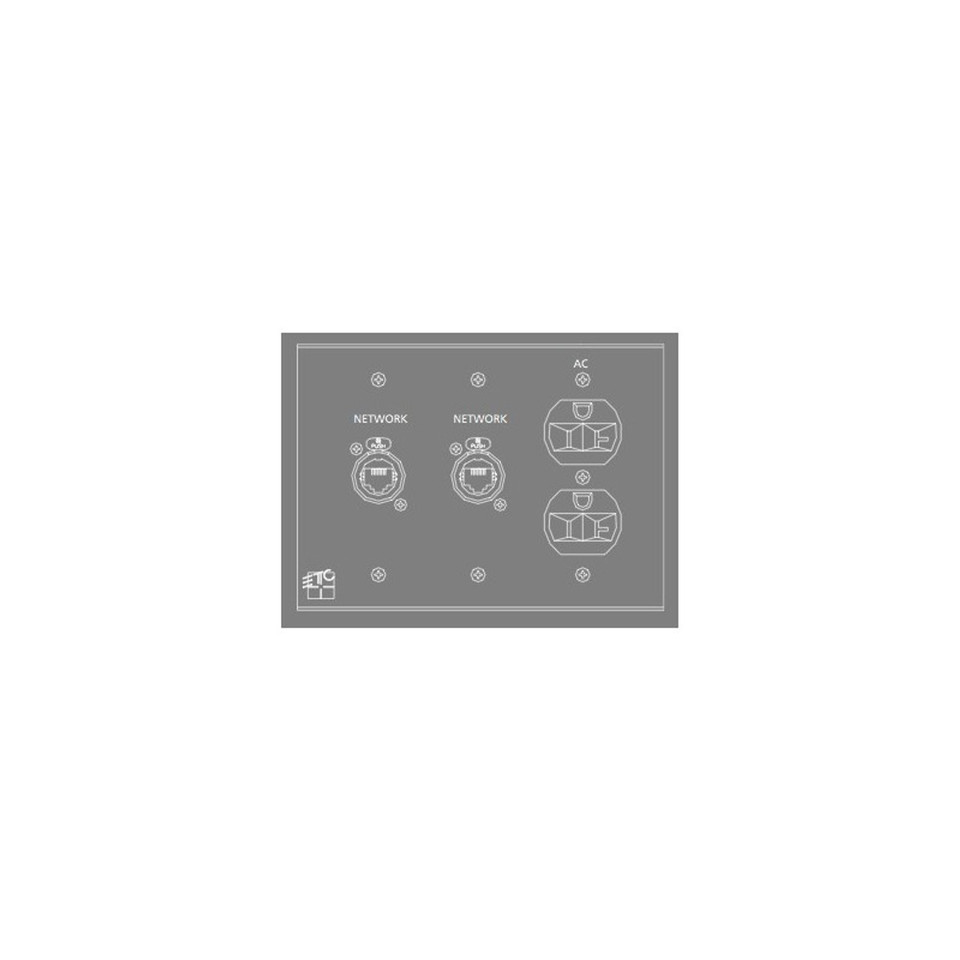

Electronic Control Plug-in Boxes (ECPBs) provide connection points for control equipment to operate lighting and other equipment from multiple locations throughout a venue. Available standard connector types support industry-standard DMX512 and Ethernet, portable houselight control, remote control devices, and 120 V outlets.
APPLICATIONS
- An integral part of any complete lighting system installation:
- Theatres and auditoriums
- Television studios
- Houses of worship
- Museums
- Casinos
- Hospitality
FEATURES
- Surface or flush mount
- Most models fit in standard RACO back boxes
- Data connector options include:
- DMX512 Input
- DMX512 Output
- Remote Focus Unit (RFU)
- Ethernet Network
- Portable Unison Heritage station
- Serial or computer interface
- Duplex Edison AC power outlet
- Custom configurations available (RFU, Serial)
- DMX inputs and outputs support termination of Belden 9729 (or equivalent) or Category5 cable
REGULATORY AND COMPLIANCE
- ETL Listed
Specifications
PHYSICAL
- Faceplates made from 0.80 in aluminum
- Finished in fine texture, scratch-resistant black powder coat
- White legends standard
- Engraving or custom legends available
- Mounts in standard RACO flush-mount back box (supplied by others)
- Surface-mount back boxes available from ETC
- Optional U-Bolt Pipe-mount kit for use with surface-mount back boxes
ELECTRICAL
- Low voltage class 2 wiring for data connections
- Voltage barriers provided when Class 1 and Class 2 wiring terminations are included in the same faceplate
- Terminal blocks supplied for contractor terminations
CONNECTOR OPTIONS
- Following standard connectors available for Plug-in Stations:
- 5-Pin XLR plug connectors for DMX input
- 5-Pin XLR socket connectors for DMX output
- RJ45 connectors for Network connections - Twisted Pair
- 6-Pin DIN socket connectors for Unison portable stations
