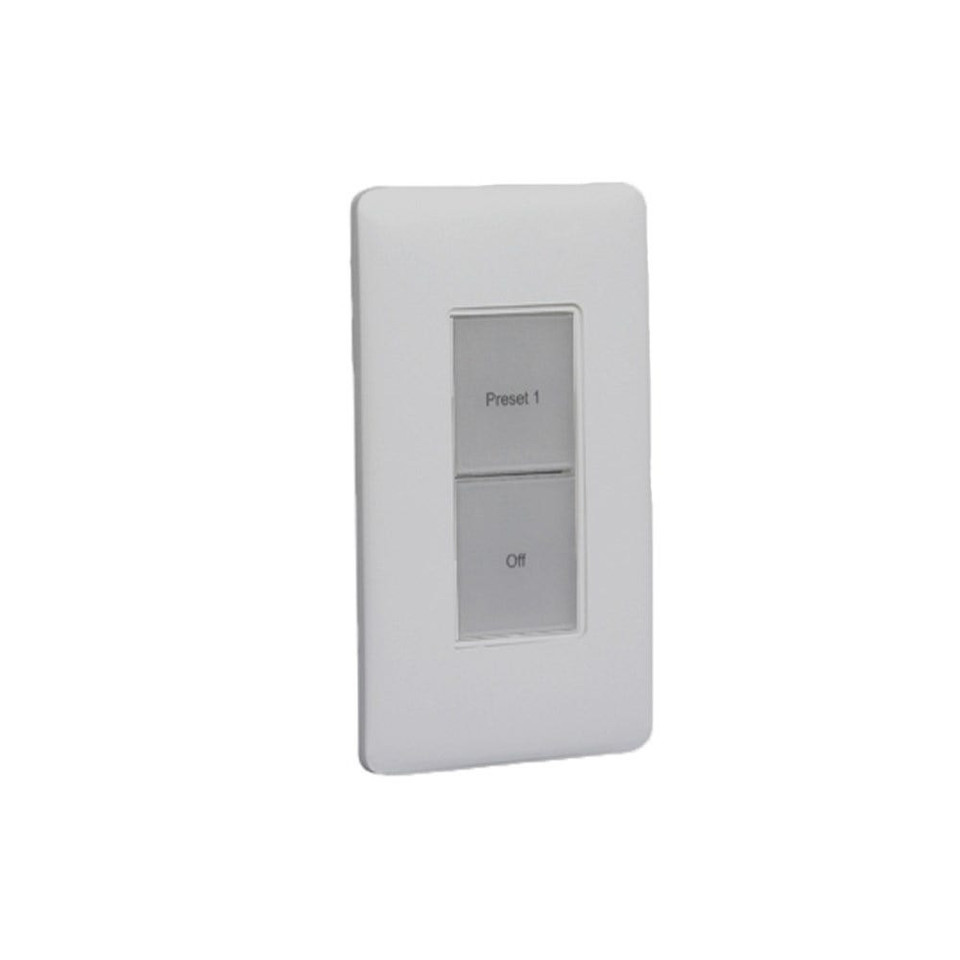

2 button Inspire station, gray

SKU: ETC-7186A1002-3
MSRP: $230.00

Overview

The control you need – right at your fingertips. These EchoConnect-powered stations are designed to initiate preset, zone, and space controls for your entire system. They communicate efficiently with dimmers, relays and power control panels to provide necessary control for any installation. You can choose your level of control with a variety of button and fader stations created with your solutions in mind.

APPLICATIONS

  • Education
  • Hospitality
  • Healthcare facilities
  • Office buildings
  • Conference rooms
  • Meeting rooms
  • Retail

Features

  • EchoConnect: two-wire topology-free system gives you the freedom to easily place stations wherever they are needed
  • Fastener-Free Faceplate System: no visible means of attachment
  • Decorator style face plates available in one-, two-, three- and four-gang options
  • Color condition: rear-illuminated buttons that indicate system status using blue for active and amber or off for inactive
  • Simple user-legend system supports use of a variety of standard nomenclature, or user-supplied inserts
  • Multi Space Preset functionality

REGULATORY AND COMPLIANCE

  • cULus Listed
  • CE Certified

Specifications

FUNCTIONAL

  • Button and fader functions include: preset activation/ deactivation, record, raise, lower, zone on/off control and room combine
  • Blue button illumination for active status
  • Amber or no button illumination for inactive status
  • Fader halo-illumination displays actual output level
  • Zone or preset control from any station with real-time user toggle

MECHANICAL

  • Standard configurations with 1, 2, 4, 6 and 8 buttons or 4 buttons and rotary fader
  • Gangable for custom applications
  • Enclosed electronics assembly and faceplate included
  • Cantilevered switch arrays with removable button caps
  • No visible means of attachment
  • Flush-mount in industry standard backbox, RACO 690 or equivalent
  • Surface-mount backboxes available from ETC upon request
  • Constructed of injection-molded, ABS plastic in three RAL standard colors Cream (RAL 9001), Black (RAL 9004), and White (RAL 9003)
  • User configurable legends on each button, or use standard legends that come with each station. Field configurable without the use of tools
  • Integral LED response indicator for each button with indication of active(blue) and inactive(amber or off) state

ELECTRICAL

  • Connect via the EchoConnect control network via low-voltage Class 2 wiring
  • Topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
  • Supports optional use of Belden 1583A or equivalent Ethernet control wire when used with Cat5 termination accessories
  • Wiring may be bus, loop, homerun or any combination of these
  • Supports up to 500 m (1,640 ft) of control wiring
    • Up to 1000 ft using CAT5
  • All station terminations utilize removable connectors

THERMAL

  • Ambient room temperature: 0°–50° C (32°–122° F)
  • Ambient humidity: 5–95% non-condensing
