Overview

DIN rail Enclosures from ETC offer a convenient location to house your devices. Designed to work with all Unison Echo, Unison Mosaic, Response and additional third party products.

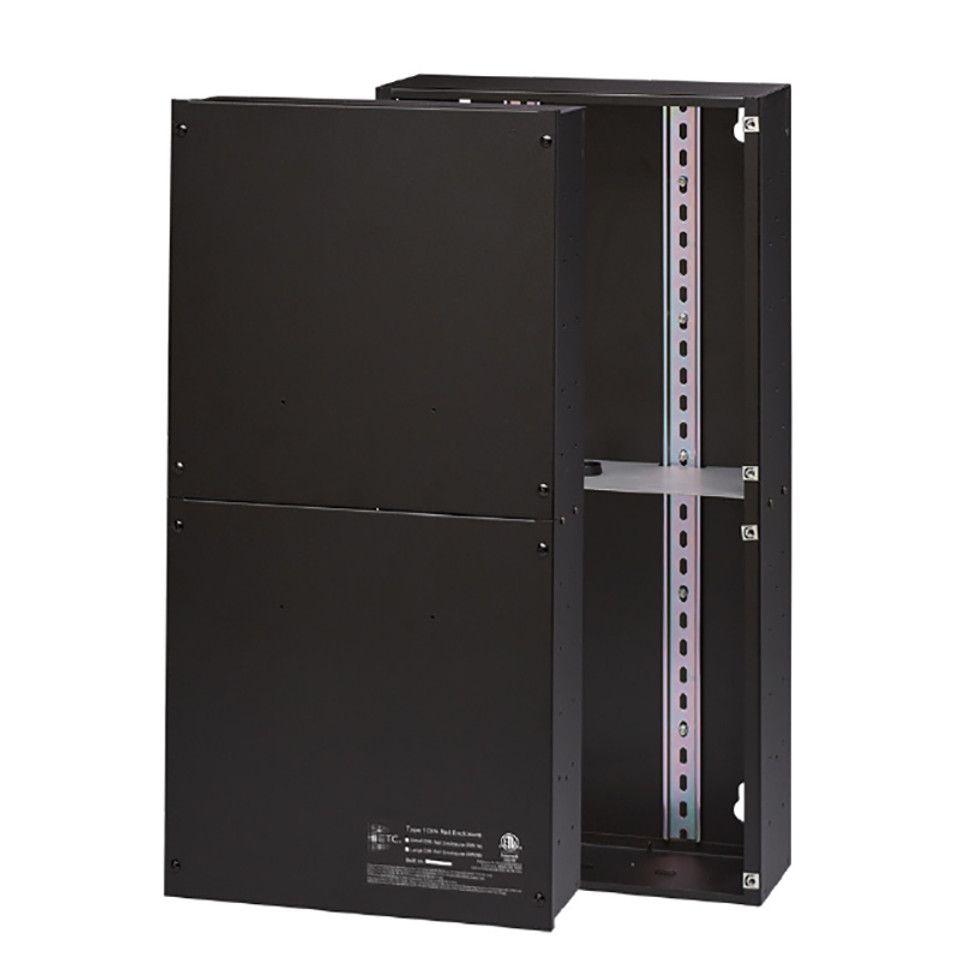

Wall-mountable version are available in mini (14 in x 8 in), small (14 in x 14 in), and large (14 in x 28 in) formats. The mini enclosure features a single piece of DIN rail, while the small and large enclosures include two aligned rails. All three variants include a re- positionable voltage divider allowing re-configuration to meet the needs of the installation. All wall-mountable versions are ETL listed.

A rack-mountable version is also available for use in standard 19-inch equipment racks.

FEATURES

• Available in four options:
  • Mini (14 in x 8 in) Horizontal
  • Small (14 in x 14 in) Vertical
  • Small (14 in x 14 in) Horizontal
  • Large (14 in x 28 in) Vertical
  • Rack-mount
• Re-positionable voltage barrier

MECHANICAL

• Constructed of 16-gauge cold-rolled steel
• Finished in fine-textured, black powder coat
• DIN rails provided:
  • Mini Enclosure: 13 in (330 mm) long
  • Small Enclosures: 2x13 in (330 mm) long
  • Large Enclosure: 27 in (686 mm) long
  • DIN rail kit: 16.5 in (419 mm) long
• Complies with DIN43880 (35/7.5 rail)
• Conduit punch guide holes provided on all sides
• Re-positionable voltage divider allowing low voltage and line voltage in the same enclosure (wall-mount only)
• Configurable opening covers (rack-mount only)

REGULATORY AND COMPLIANCE

• cETLus Listed (wall-mount only)
• Conforms to ANSI/UL Standard 50/50E
• Certified to CAN/CSA Standard C22.2 No. 94.1/94.2
