Overview

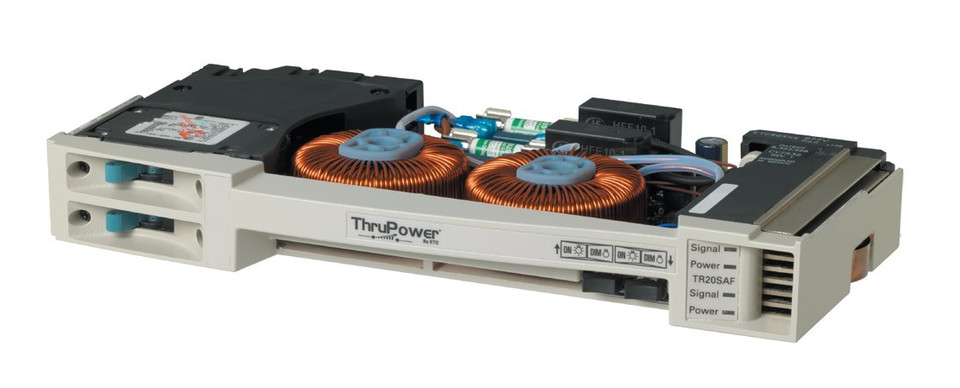

Sensor power control modules are designed for use in all SR3 modular enclosures. Whether you need forward-phase or reverse-phase SCR dimming, relay control, or the flexible control of our ThruPower modules, Sensor has you covered. Most modules provides two circuits of control for a wide range of applications. Advanced Features (AF) modules enable dimmer-specific feedback of load circuit data in SensorAF enclosures. All modules feature modular installation and removal, fully magnetic circuit breakers, and rock-solid construction.

APPLICATIONS

• Tungsten lighting
• Low voltage lighting
• Non-dim loads
• Moving lights, fog machines, and powered effects
• Electronic transformers
• Electronic LED power supplies
• 2-wire Fluorescent ballast
• 2-wire Fluorescent ballast with integrated battery backup
• 3-wire Fluorescent ballast
• 4-wire Fluorescent ballast (requires ETC Response 0-10 V Gateway)
• Quartz lighting
• Neon lighting
• Cold Cathode lighting

FEATURES

• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breakers
• Temperature sensors

ADVANCED FEATURES (AF)*

• Built-in per-circuit voltage and current sensing
• Advanced Features error messages:
  • Load dropped below recorded value
  • Load increased over recorded value
  • Circuit breaker tripped
  • Dimmer module removed
  • Dimmer load absent
    • Access to AF features require an AF-equipped Sensor enclsoure or pack
  • REGULATORY AND COMPLIANCE
    • cULus Listed for use in Sensor Dimming Enclosure

Specifications

GENERAL

• Rated for continuous duty at 100% of rated load
• 2 kW, 1.8 kW, 2.4 kW, and 6 kW circuits

PHYSICAL

• Modular plug-in assemblies
• Cast aluminum chassis, finished with textured epoxy paint
• Keyed to prevent insertion in inappropriately rated enclosure positions

CIRCUIT BREAKERS

• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
  • (PhaseAdept and ELV modules rated at 10x inrush)
• 125%, 10–100 seconds, must-trip rating
• Rated for 100% switching duty applications

SHORT CIRCUIT RATINGS

• 100,000 A Short Circuit Current Rating (SCCR)
• Modules withstand hot-patching of cold loads up to full rating
• POWER DEVICE
• Sealed, patented assembly
• Field-replaceable with screwdriver
  • Power devices on PhaseAdept and ELV modules are not field-replaceable
• Two back-to-back SCRs per circuit (D20 and TR20 modules)
• Per-circuit LED indicators
• Mechanical held air gap relay
• Integral bonded heatsink
• Integral temperature sensor

FILTERING

• High quality toroidal filters (see module chart for rise times)
