Overview

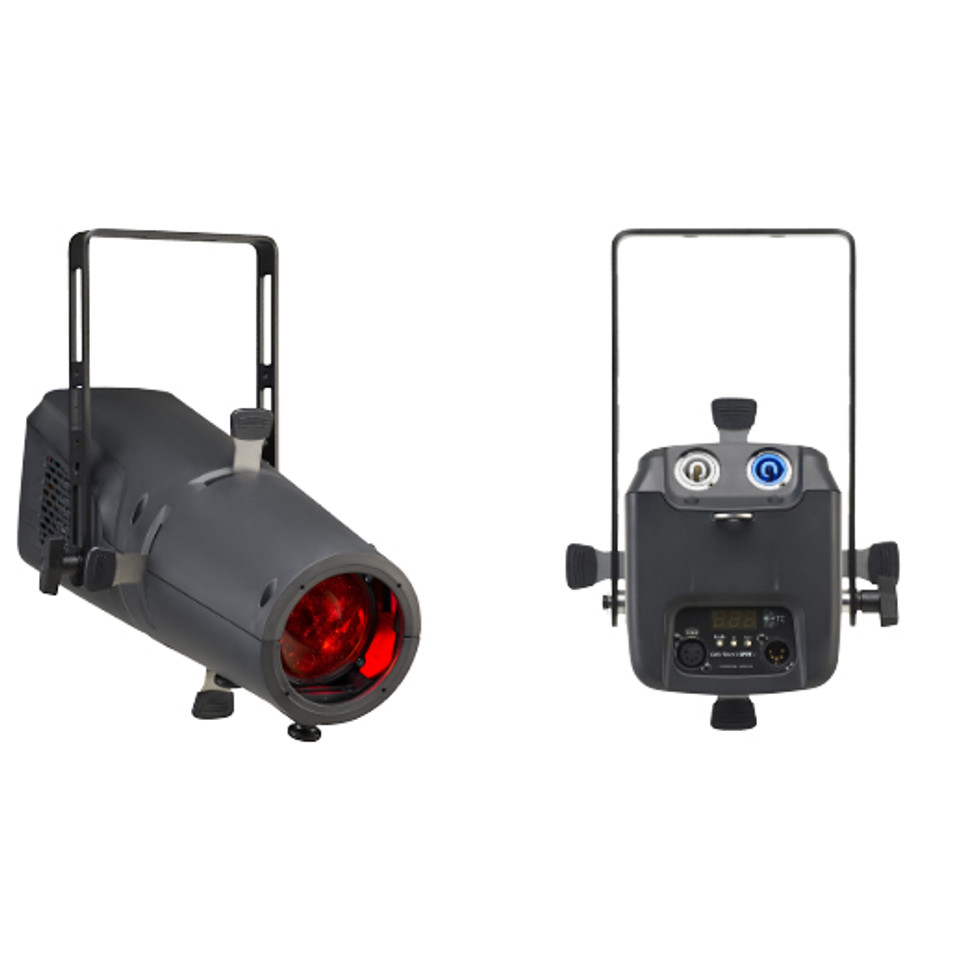

The ETC ColorSource Spot jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot jr offers an amazing range of color. This fixture is available in both Original and Deep Blue arrays, and features the same color integrity technology as ETC’s other fixtures. Increasing the versatility of this fixture is its built-in zoom capabilities and 5,708 lumen output.

Applications

• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums

Features

• ETC’s RGB-L array (red, green, blue and lime)
  • Also available in Deep Blue, which replaces the blue LEDs with indigo for rich, saturated blues and magentas
• Simple user interface with seven-segment display
• powerCON® in and thru
• DMX/RDM in and thru (5-pin XLR)
• LED droop compensation
• Optically calibrated
• Built-in zoom

Specifications

Source

• LED details: 52 Lumileds LUXEON® C LED
• Max lumens:
  • Standard: 5,708
  • Deep Blue: 5,426
• Lumens per watt:8
• L70 rating (hours to 70% output)*: >54,000 hours (both variants)

Color

• Colors used:
  • Standard: Red, green, blue, lime
  • Deep Blue: Red, green, indigo, lime
• Color temperature range: Color mixing
• Calibrated array: Yes
• Red shift: No

Optical

• Beam angle range: Built in 25-50 degree zoom
• Gate size: 50 mm
• Aperture size:25”-14”
• Pattern projection: Yes
• Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
• Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)

Control

• Input method: DMX512 via 5-pin XLR
• Protocols: DMX512/RDM
• Modes (footprint): 4 modes
• RDM configuration: Yes
• UI type: Seven-segment, three-button interface
• Local control: Yes
• Onboard presets: Yes (12)
• Onboard sequences: Yes (5)
• Onboard effects: No
• FixtureLink: Yes
• Notes: 15-bit virtual dimming engine

Electrical

• Voltage range: 100–240 VAC 50/60 Hz
• Input method: powerCON power in and thru
• Inrush:
  • 35 A at 120 V (First half-cycle)
  • 45 A at 240 V (First half-cycle)
• Fixtures per circuit:
  • 7 fixtures (15 A power thru connector) or
  • 8 fixtures (R20 module or similar)
• Wattage typical/Standby:
  • 166 W / 2.6 W at 120 V
  • 162 W / 2.0 W at 240 V
• Current draw:
  • 40 A at 120 V
  • 73 A at 240 V

Thermal

• Ambient operating temp: 0°–40° C (32°–104° F)
• Fan (controllable): Yes (no)
• Droop compensation: Yes
• dB range:2 dBa
• BTUs/hour: 549

Physical

• Materials: ABS plastic
• Color options: Black or white
• Mounting options: Yoke
• IP rating: IP20
• Weight:4 kg (12 lb)
• Included accessories: Hanging yoke, 1.5 m power cable

Warranty

• Fixture: 5 years
• LED array: 10 years

Regulatory and Compliance

• Approved regulatory standards:
  • cETLus Listed
  • Conforms to UL 1598 Listed
  • Certified to CSA C22.2 No. 250 Listed
  • CE Compliant
  • EAC Compliant
