Overview

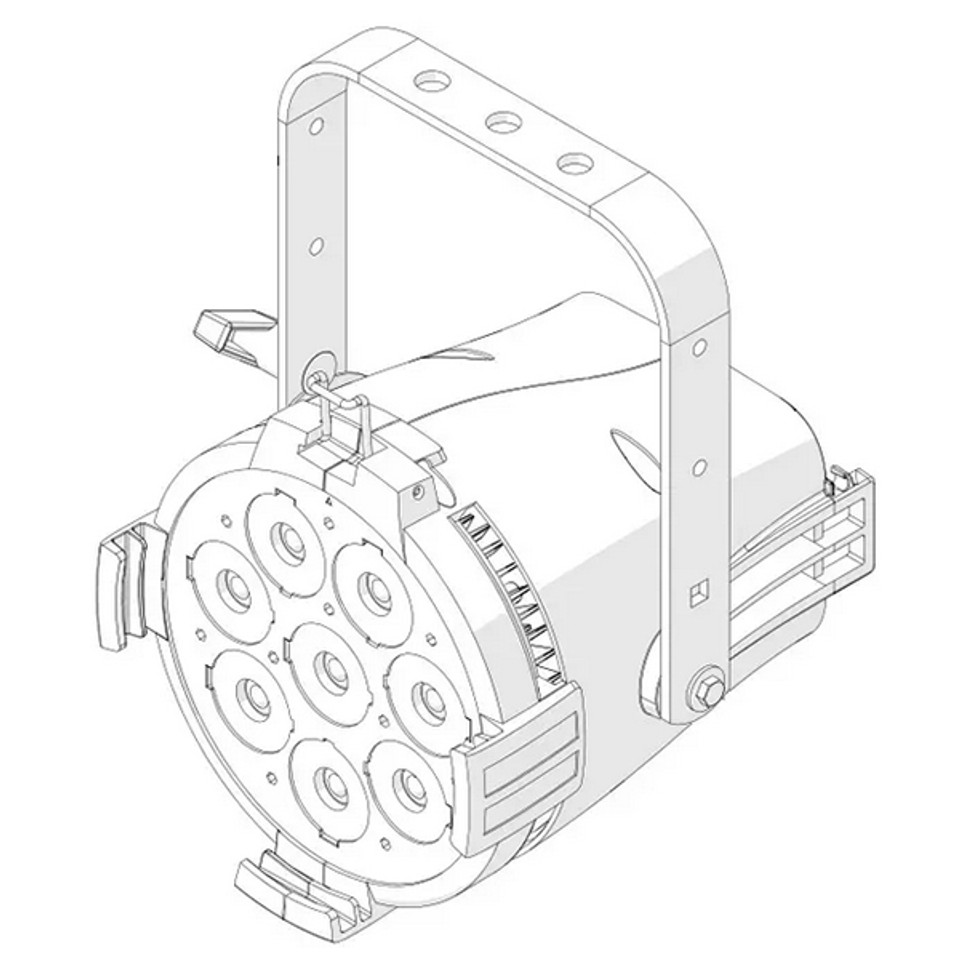

ColorSource PAR Pearl is a variable white-light LED wash fixture that utilizes a mix of two different white LEDs. This mixture enables you to set the color temperature anywhere between 2700 K and 5600 K. The Pearl array provides the same great feature set and high quality construction as its full color siblings, including an impressively bright output and simple user interface.

Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.

Applications

• Theatres and performance centers
• Houses of worship
• Universities and schools
• Studios
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs

Features

• Variable CT from 2700 K to 6500 K
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON in and thru
• 5-pin XLR
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing

Specifications

Source

• LED details : 40 Lumileds LUXEON® Z LEDs
• Max lumens : 5,709
• Lumens per watt : 50
• L70 rating (hours to 70% output) : >60,000 hours

Color

• Colors used : Warm white, cool white
• Color temperature range : 2700–6500 K
• Calibrated array : Yes
• Red shift : No

Optical

• Beam angle range : 15 degrees
• Gate size : N/A
• Aperture size : 190 mm (7.5 in)
• Pattern projection : No
• Pattern size : N/A
• Camera flicker control/ Hz range : 1,200 Hz (default) and 25,000 Hz (via RDM)

Control

• Input method : DMX-512 via 5-pin XLR connector
• Protocols : DMX512, RDM
• Modes (footprint) : 3 modes
• RDM configuration : Yes
• UI type : Seven-segment address display
• Local control : Yes
• Onboard presets : Yes (12)
• Onboard sequences : No
• Onboard effects : No
• Fixture to fixture control : Yes
• Notes : Local level control via UI

Electrical

• Voltage range : 100–240 VAC, 50/60 Hz
• Input method : powerCON in and thru
• Inrush :
  • 35 A (first half-cycle) at 120 V
  • 49 A (first half-cycle) at 230 V
• Fixtures per circuit*: 10 (20 A switched circuit, R20 module or similar)
• Wattage (typical /standby) :
  • 114 W / 1.6 W at 120 V
  • 112 W / 1.5 W at 230 V
• Current draw :
  • 96 A at 120 V
  • 50 A at 230 V

Thermal

• Ambient operating temperature : 0°–40° C (32°–104° F)
• Fan (controllable) : Yes (no)
• Droop compensation : Yes
• dB range :8 dBA average at 1 m
• BTUs/hour : 389

Physical

• Materials : Die-cast all metal housing
• Color options : Black, white, silver or custom color
• Mounting options : Yoke or floor stand (as optional accessory)
• IP rating : IP20
• Weight : 3.77 kg (8.3 lb)
• Included accessories : Hanging yoke, power cable
• Warranty
• Full fixture : 5 years
• LED array : 10 years

Regulatory and Compliance

• Approved regulatory standards :
  • cETLus Listed
  • Conforms to UL 1573 Listed
  • Conforms to UL 924 Listed
  • Certified to CSA C22.2 No. 166 Listed
  • Certified to CSA C22.2 No. 141 Listed
  • CE Compliant
  • EAC Compliant
