Overview

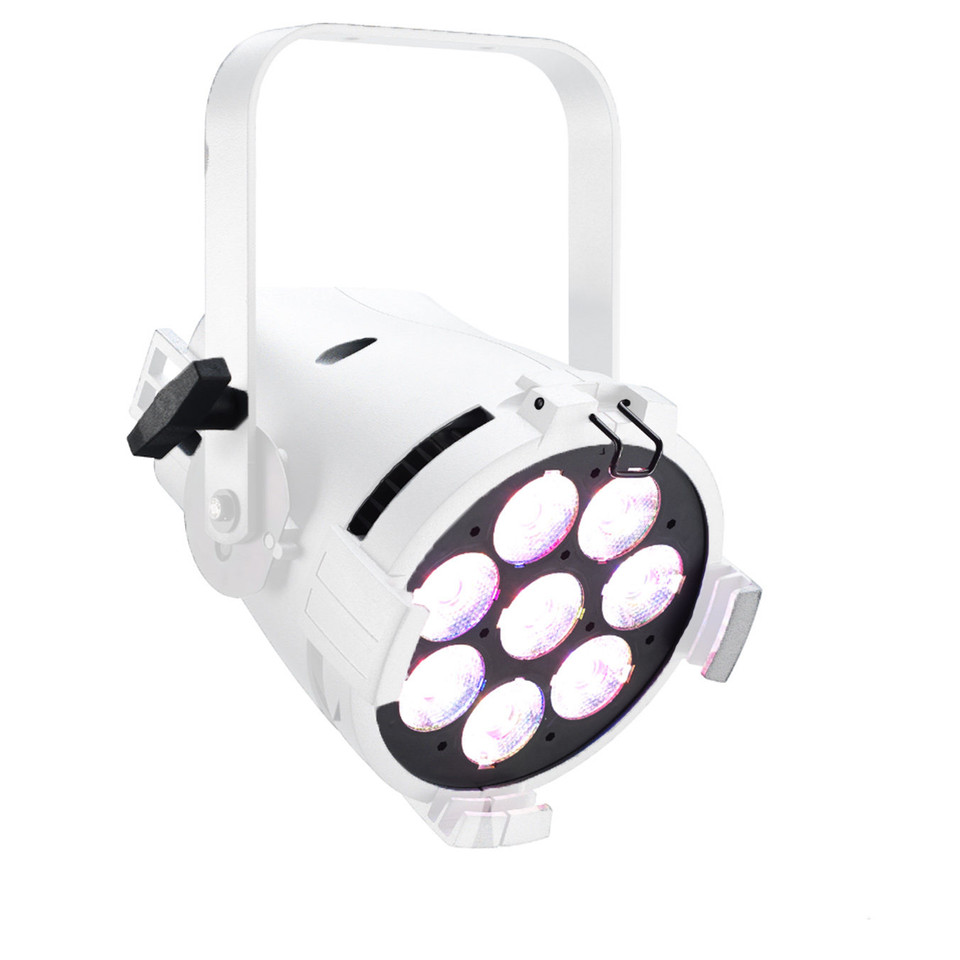

An LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility

Applications

• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums

Features

• Five-color array (red, green, blue, indigo, and lime)
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing
• Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light

Specifications

Source

• LED details: 40 Lumileds LUXEON® Z LED
• Max lumens: PAR: 3,039, PAR DB: 2,429
• Lumens per watt: PAR: 28.1, PAR DB: 27.6
• L70 rating (hours to 70% output)*: 55,000 hours

Color

• Colors used:
  • PAR: red, green, blue, lime
  • PAR Deep Blue: red, green, indigo, lime
• Color temperature range: Color mixing
• Calibrated array: Yes
• Red shift: No

Optical

• Beam angle range:3° (secondary lenses available for multiple beam-spread options)
• Gate size: N/A
• Aperture size:5 in / 190 mm
• Pattern projection: No
• Pattern size: N/A
• Camera flicker control/Hz range: 1,200 Hz (default), 25,000 Hz (via RDM)

Control

• Input method: DMX512 via 5-pin XLR connector
• Protocols: DMX512/RDM
• Modes (footprint): 4 modes
• RDM configuration: Yes
• UI type: Seven-segment, three-button interface
• Local control: Yes
• Onboard presets: Yes (12)
• Onboard sequences: Yes (5)
• Onboard effects: No
• Fixture-to-fixture control: Yes
• Notes: 15-bit virtual dimming engine

Electrical

• Voltage range: 100–240 VAC 50/60 Hz
• Input method: powerCON TRUE1 TOP power in and thru
• Inrush:
  • 35 A at 120 V (First half-cycle
  • 49 A at 240 V (First half-cycle)
• Fixtures per circuit*:
  • 9 (15 A power thru connector)
  • 10 (R20 module or similar)
• Wattage typical:
  • 90 W at 120 V
  • 89 W at 240 V
• Current draw:
  • 75 A at 120 V
  • 40 A at 240 V

Thermal

• Ambient operating temp: 0°–40° C (32°–104° F)
• Fan (controllable): Yes (No)
• Droop compensation: Yes
• dB range:8 dBA average at 1 m
• BTUs/hour (RGB-L / DB): 307 / 303

Physical

• Materials: Die-cast, all metal housing
• Color options: Black, white, silver, or custom color
• Mounting options: Yoke, floor stand yoke (available as an accessory)
• IP rating: IP20
• Weight:77 kg (8.3 lb)
• Included accessories: Hanging yoke, power cable
• User interface: Seven-segment, three-button interface

Warranty

• Fixture: 5 years
• LED array: 10 years

Regulatory and Compliance

• Approved regulatory standards:
  • cETLus Listed
  • Conforms to UL 1573 Listed
  • Conforms to UL 924 Listed
  • Certified to CSA C22.2 No. 166 Listed
  • Certified to CSA C22.2 No. 141 Listed
  • CE Compliant
  • EAC Compliant
