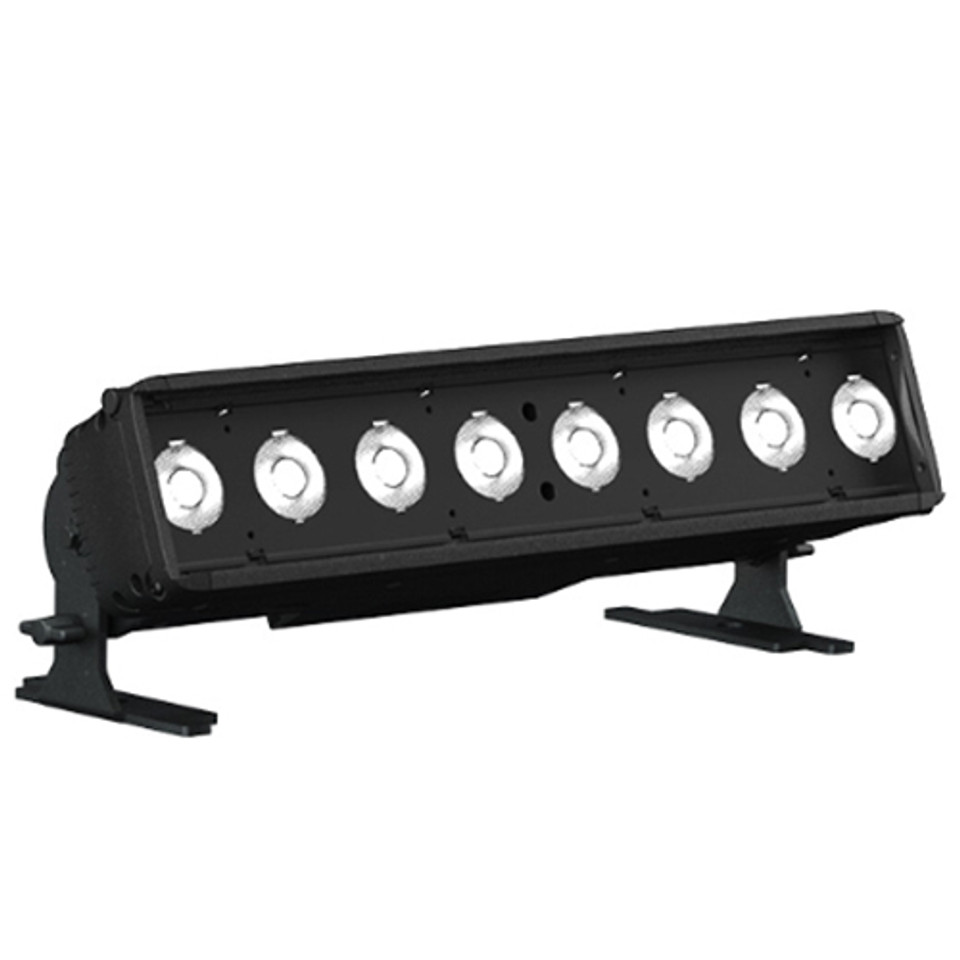

ColorSource Linear 1, XLR, silver

SKU: ETC-7414A1000-5
MSRP: $1,560.00

Overview

ColorSource Linear combines the bright, bold output of the ColorSource family with a sleek linear design to create a versitile and affordable strip light. Whether being used to create a stunning wash of light on your stage or a wall, the ColorSource Linear uses ETC’s unique RGB-L color system to provide beautiful LED lighting

Applications

  • Theatres and performance spaces
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

Features

  • Available in three lengths
    • Linear 1 (0.5 meters) - one cell of control
    • Linear 2 (1 meter) - two cells of control
    • Linear 4 (2 meters) - four cells of control
  • ETC’s RGB-L array (red, green, blue and lime)
    • Also available in Deep Blue, which replaces the blue LEDs with indigo for rich, saturated blues and magentas
  • Homogenized optics
  • Simple user interface with seven-segment display
  • powerCON® in and thru power connections
  • DMX in and thru (5-pin XLR)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

Specifications

Source

  • LED details : 40 Lumileds LUXEON® Z LEDs (per segment)
  • Max lumens :
    • Linear 1: 3,039
    • Linear 1 DB: 2,978
  • Lumens per watt :
    • Linear 1: 28.1
    • Linear 1 DB: 27.6
  • L70 rating (hours to 70% output) : 55,000 hours

Color

  • Colors used :
    • Linear 1: Red, green, blue, lime
    • Linear 1 DB: Red, green, indigo, lime
  • Color temperature range : Color mixing fixture
  • Calibrated array : Yes
  • Red shift : No

Optical

  • Beam angle range :6° (Secondary lenses available for multiple beam-spread options)
  • Gate size : N/A
  • Aperture size :5 in / 190 mm
  • Pattern projection : No
  • Pattern size : N/A
  • Camera flicker control/ Hz range : 1,200 Hz (default) and 25,000 Hz ( via RDM )

Control

  • Input method : DMX512 via 5-pin XLR connector
  • Protocols : DMX512, RDM
  • Modes (Footprint) : 4 modes
  • RDM configuration : Yes
  • UI type : Seven-segment, three-button interface
  • Local control : Yes
  • Onboard presets : Yes (12)
  • Onboard sequences : Yes (5)
  • Onboard effects : No
  • Fixture to fixture control : Yes
  • Notes : 15-bit virtual dimming engine

Electrical

  • Voltage range : 100–240 VAC 50/60 Hz
  • Input method : powerCON in and thru
  • Inrush : (First half-cycle)
    • 35 A / 35.6 A / 67.5 A at 120 V
    • 49 A / 85.6 A / 153 A at 240 V
  • Fixtures per circuit*:
    • 9 cells (15 A power thru connector) or 10 cells (R20 module or similar)
  • Wattage (120 V / 240 V) :
    • Linear 1: 115 W / 112 W
    • Linear 2: 218 W / 213 W
    • Linear 4: 438 W / 426 W
    • Linear 1 DB: 110 W / 108 W
    • Linear 2 DB: 218 W / 214 W
    • Linear 4 DB: 440 W / 428 W
  • Current draw (120 V / 240 V) :
    • Linear 1: 0.95 A / 0.48 A
    • Linear 2: 1.82 A / 0.91 A
    • Linear 4: 3.68 A / 1.82 A
    • Linear 1 DB: 0.92 A / 0.46 A
    • Linear 2 DB: 1.82 A / 0.91 A
    • Linear 4 DB: 3.70 A / 1.83 A

Thermal

  • Ambient operating temperature : 0°C to 40°C (32°F to 104°F)
  • Fan (controllable) : Yes (no)
  • Droop compensation : Yes
  • dB range (average at 1 m) :
  • Linear 1: 24.8 dBA
  • Linear 2: 28.4 dBA
  • Linear 4: 31.0 dBA
  • BTUs/hour (120 V / 240 V) :
    • Linear 1: 392.38 / 382.14
    • Linear 2: 743.82 / 726.76
    • Linear 4: 1,494.46 / 1,453.51
    • Linear 1 DB: 375.32 / 368.50
    • Linear 2 DB: 743.82 / 730.19
    • Linear 4 DB: 1,501.28 / 1,460.34

Physical

  • Materials : Die-cast aluminum
  • Color options : Black, white, silver or custom color
  • Mounting options : Yoke (1 cell - optional), trunnions
  • IP rating : IP20
  • Weight : 5.1/9.2/17.1 kg (11.2/20.1/37.5 lb)
  • Included accessories : Power cable, trunnions

Warranty

  • fixture : 5 years
  • LED array : 10 years

Regulatory and Compliance

  • Approved regulatory standards :
    • cETLus Listed
    • Conforms to UL 1573
    • Certified to CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
