Overview

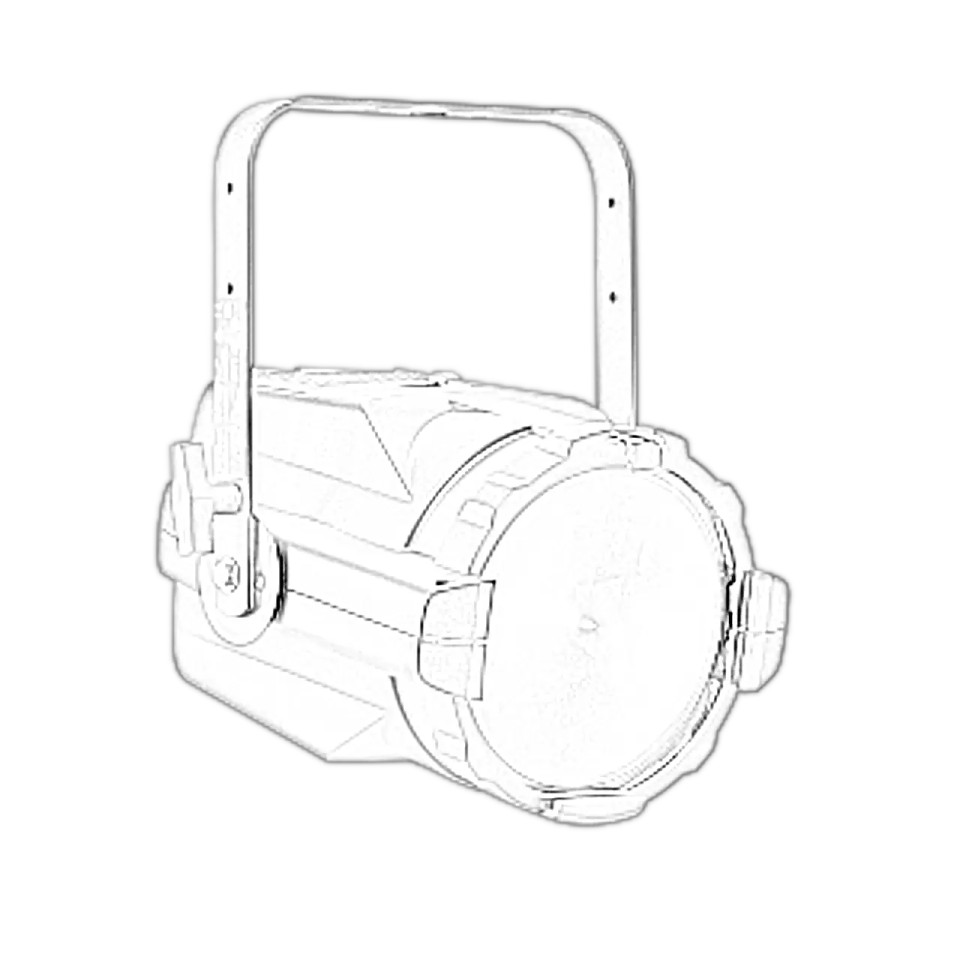

An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.

Applications

• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums

Features

• Five-color array (red, green, blue, indigo, and lime)
• Motorized 13–44 degree zoom with DMX and local control
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing

Specifications

Source

• LED details: 44 Lumileds LUXEON® C LEDs
• Max lumens: 5330
• Lumens per watt: 36
• L70 rating (hours to 70% output)*: 54,000 hours

Color

• Colors used: Red, green, blue, indigo, lime
• Color temperature: range Color mixing
• Calibrated array: Yes
• Red shift: No

Optical

• Beam angle range: 13°–44°
• Gate size: N/A
• Aperture size: 190 mm (7.48 in)
• Pattern projection: No
• Pattern size: N/A
• Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)

Control

• Input method: 5-Pin XLR, Multiverse wireless (optional), and NFC
• Protocols: DMX-512, RDM, City Theatrical, Multiverse (optional), NFC
• Modes (footprint): 4 modes
• RDM configuration: Yes
• UI type: Seven-segment, three-button interface, Focus encoder
• Local control: Yes
• Onboard presets: Yes (12)
• Onboard sequences: Yes (5)
• Onboard effects: No
• FixtureLink: Yes
• Notes: 15-bit virtual dimming engine

Wireless

• Band:400–2.480 GHz
• Range: 100 m indoors, 500 m line of sight (subject to conditions)
• Max receivers:
  • DMX: No limit
  • RDM: Varies by transmitter used
  • Multiverse SHoW Baby®: 585
  • Multiverse Transmitter: 5,000
• Broadcast power: 100 mW

Electrical

• Voltage range: 100–240 VAC 50/60 Hz
• Input method: powerCON TRUE1 TOP power in and thru
• Inrush (first half-cycle):
  • 120 V: 36 A
  • 5 240 V: 57 A
• Fixtures per circuit on standard R20 breaker:
  • 9 (link up to 8 via Power Thru connector)*
  • Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
• Wattage typical:
  • 120 V: 148.4 W
  • 230 V: 147.0 W
• Current draw:
  • 120 V: 1.28 A
  • 230 V: 0.70 A

Thermal

• Ambient operating temp: 0°C–40° C (32°F–104° F)
• Fan (controllable): Yes (yes)
• Droop compensation: Yes
• Average dB range:7 dBA
• BTUs/hour: 508

Physical

• Materials: Cast and extruded aluminum
• Color options: Black, white, silver, or custom color
• Mounting options: Yoke
• IP rating: IP20
• Weight:24 kg (13.75 lb)
• Included accessories: Yoke, power cable

Warranty

• Fixture: 5 years
• LED array: 10 years

Regulatory and Compliance

• Approved regulatory standards:
  • cETLus Listed
  • Conforms to UL 1598 & 924
  • Complies to CSA C22.2 No. 250.0 and 141
  • CE & UKCA compliant
