Overview
LV Power Supplies BluesSystem LV power supplies provide precision power and control for BlueBeam and BlueDome fixtures. Available in a one-zone and six-zone version (up to 10 luminaires per zone) with wall-mount and rack-mount options, BluesSystem LV power supplies allow for maximum flexibility when designing your venue.
APPLICATIONS
- For use with BluesSystem LV Fixtures
FEATURES
- Configurable options for minimum light level and DMX loss behavior
- One-zone version (up to 10 luminaires) available with: - Wall-mounting enclosure - Switched (dry contact) or DMX control input options
- Six-zone version (up to 60 luminaires) available with: - Wall- or rack-mounting enclosure - Switched (dry contact), 0-10 V Analog or DMX control - input options
GENERAL
- Three-year warranty
- Ambient operating temperature 0–40° C / 32–104° F
- REGULATORY AND COMPLIANCE
- cETLus Listed
- Conforms to ANSI/UL STD. 2108
- Certified to CSA STD. C22.2 No. 250.0
- CE Compliant
SPECIFICATIONS
CONTROL
- Each zone supports up to ten luminaires
- One-zone power supply available with switched (LV dry contact) or DMX input
- Six-zone power supply available with switched (LV dry contact), 0–10 V analog, or DMX input
- Six-zone 0–10 V version features user selectable sink or source operation
- Configurable minimum light level and DMX loss behavior options
- Three-conductor screw terminal for DMX in/thru.
ELECTRICAL
- Power supply input operating voltage: 100–240 VAC 50/60 Hz
- One-zone power supplies provide 24 VDC output
- Six-zone power supplies provide 36 VDC output
- 3 W luminaire consumes 85 mA @ 36 V (130 mA @ 24 V)
- Three conductor screw terminals for output zones accepting 30-12 AWG / 0.05–4.0 mm2 gauge cable
MECHANICAL
- One-zone power supply available as wall-mount only

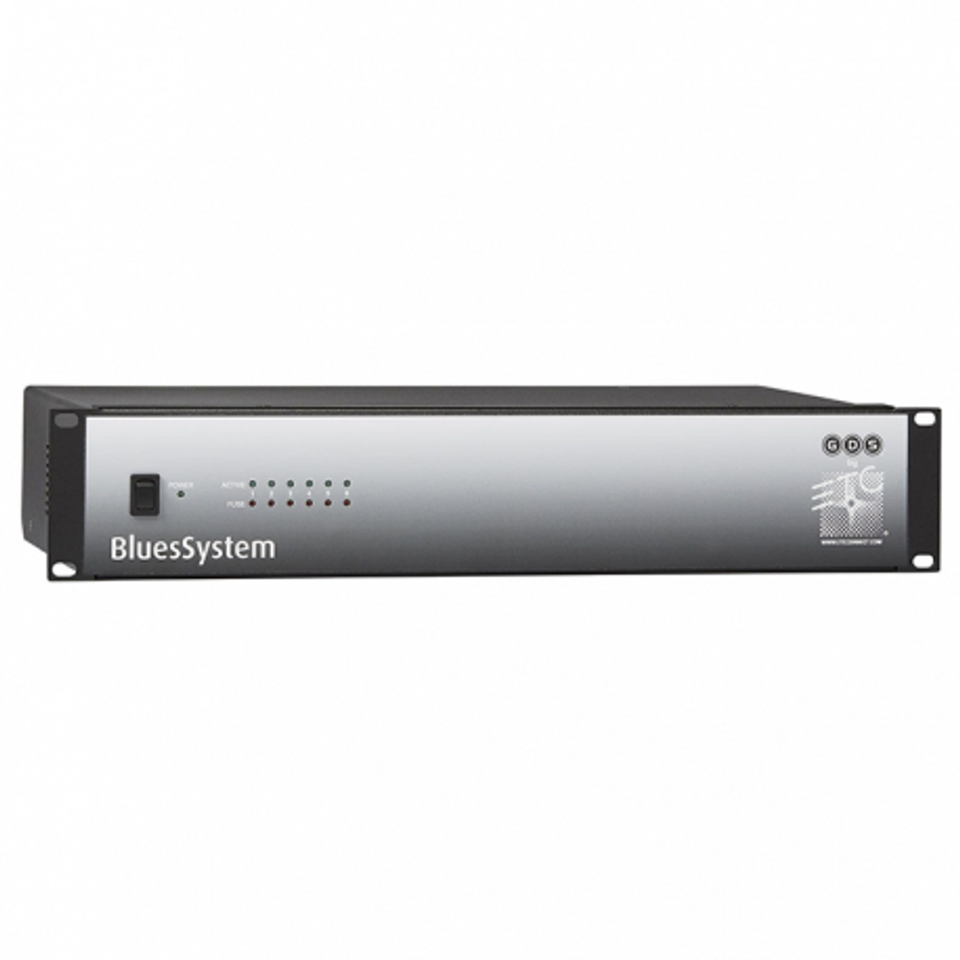

- Six-zone available in wall-mount or 19” 2U rack-mount
- Suitable for dry locations only
THERMAL
- Low heat generation
