Overview

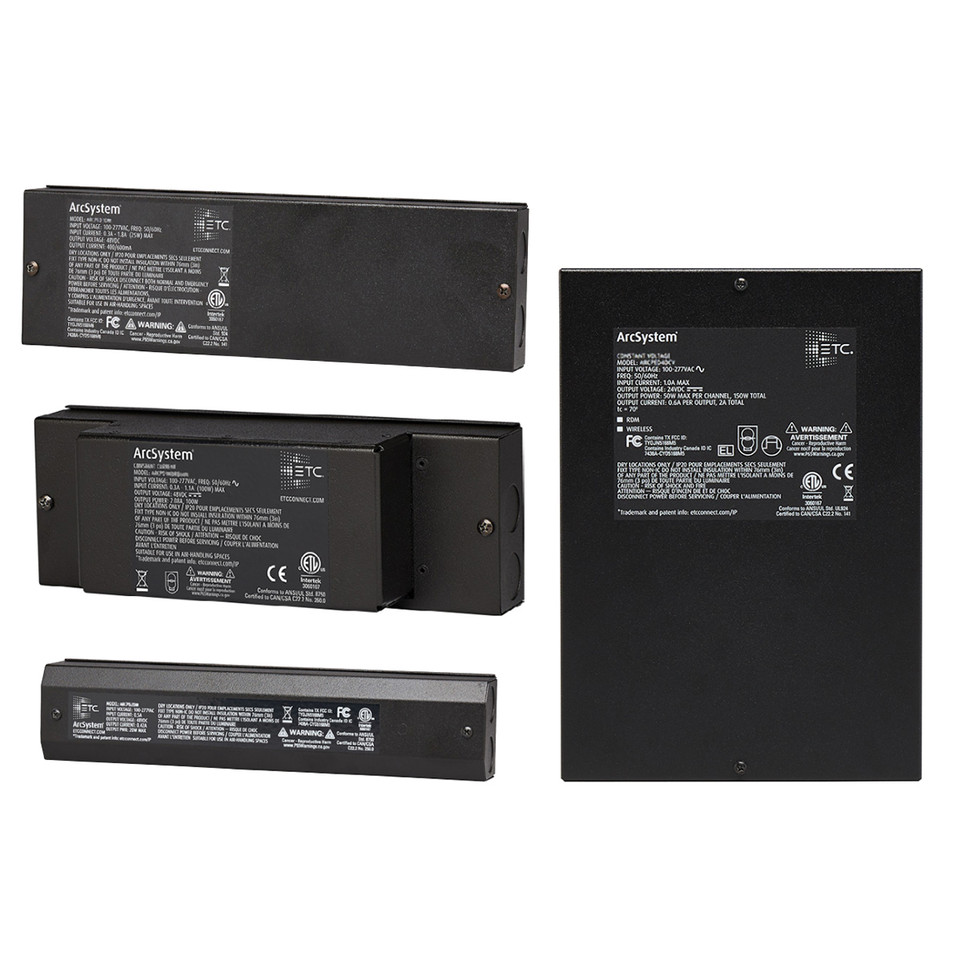

Designed for use with ArcSystem Pro One-Cell series luminaires, the ArcSystem driver range is a convection cooled LED driver providing superior quality dimming. Each driver type has been specifically optimized for the best possible control of its intended luminaire. With this in mind, the following chart details compatibility of each model:

DRIVER SUITABLE FOR USE WITH:

• D1 Driver: Pro One-Cell / Pro One-Cell Small
• D1HO Driver: Pro One-Cell High-Output
• D2 Driver: Pro One-Cell Micro
• D4 CC Driver: Pro One-Cell / Pro One-Cell Small

Each D1 Driver provides power and control for one luminaire while the D2 can power up to two Pro One-Cell Micro luminaires. The D4 CC Driver provides power and control for up to four luminaires. Intensity may be controlled directly using a DMX/RDM connection to the driver’s RJ45 connectors.

APPLICATIONS

• Auditoriums
• Worklights
• Lobbies
• Houses of worship
• Museums
• Studios

FEATURES

• Wired DMX/RDM
• Stepless smooth dimming to absolute zero
• Silent operation
• Convection cooled
• Suitable for air handling/plenum use

Specifications

Control

• Input method: DMX-512 via RJ45
• Protocols: DMX, RDM
• Modes (footprint)

  • D1/D1HO Driver: 1 channel and 1 luminaire
  • D2 Driver: up to 2 channels and a total of 2 luminaires
  • D4 Driver: up to 4 channels and a total of 4 luminaires
• RDM configuration: Yes (with RDM option)
• UI type: No UI, Configuration via RDM
• Local control: No

Electrical

• Voltage range

  • D1, D1HO and D2 Driver: 100–277 VAC 50/60 Hz
  • D4 CC Driver: 100-240 VAC 50/60 Hz
  • D4 available in 277 VAC with model number adder -277
• Input method: Wiring compartment with two half-inch knock-outs at each end for field wiring
• D4: Removable plate for field drilled holes
• Inrush: Inrush and Fixture Per Circuit information on Page 3
• Wattage (max /standby)

  • D1 Driver: 20 W/<0.5 W
  • D1HO Driver: 100 W/<3 W
  • D2 Driver: 20 W/<0.5 W
  • D4 CC Driver: 115 W/<0.5 W
• Power factor: >0.9
• Current draw

  • D1 Driver: 0.20 A at 120 VAC
  • D1HO Driver: 0.83 A at 120 VAC
  • D2 Driver: 0.17 A at 120 VAC
  • D4 CC Driver: 0.95 A at 120 VAC
• Constant Current Output (per channel where multiple)

  • D1 Driver: 400/600 mA configureable
  • D1HO Driver: 2080 mA
  • D2 Driver: 200 mA
  • D4 CC Driver: 400/600 mA configureable
• Recommended maximum cable length from driver to luminaire

  • D1 Driver: 15 m (49 ft 2 in)
  • D1HO Driver: 1 m (3 ft 3 in)
  • D2 Driver: 15 m (49 ft 2 in)
  • D4 CC Driver: 15 m (49 ft 2 in)

Thermal

• Ambient operating temp: 0–40°C (32–104°F)
• Fan (controllable): N/A (convection cooled)
• BTUs/hour

  • D1 Driver: 85
  • D1HO Driver: 341
  • D2 Driver: 68
  • D4 CC Driver: 361

Physical

• Materials: Die-cast aluminum and cold-rolled steel
• Color options: Black
• Mounting options

  • 4 screw holes in rear plate
  • D1 Quick Connect has an included mounting strap (see drawing page 7)
  • Optional recessed bracket for D1 or D1HO (see separate datasheet)
• IP rating: IP-20 (dry locations only)
• Weight

  • D1 Driver: 0.61 kg (1.35 lb)
  • D1HO Driver: 1.14 kg (2.50 lb)
  • D2 Driver: 0.71 kg (1.55 lb)
  • D4 CC Driver: 1.9 kg (4.2 lb)

Warranty

• Driver: 5 years

Regulatory and Compliance

• Approved regulatory standards
• Standard version
• cETLus Listed
• Conforms to ANSI/UL STD.8750
• Certified to CSA STD. C22.2 No: 250.13
• CE Compliant
• EAC Compliant
• UKCA Compliant
• Emergency version
• cETLus Listed
• Conforms to ANSI/UL STD.924
• Certified to CSA STD. C22.2 No: 141
• CE Compliant
• EAC Compliant
• UKCA Compliant
• D1 Quick Connect Standard and Emergency version
• CE Compliant
• EAC Compliant
• UKCA Compliant
• D1/D1HO/D4 CC suitable for use in air handling systems by NEC 300.22(C)(3)
