Overview

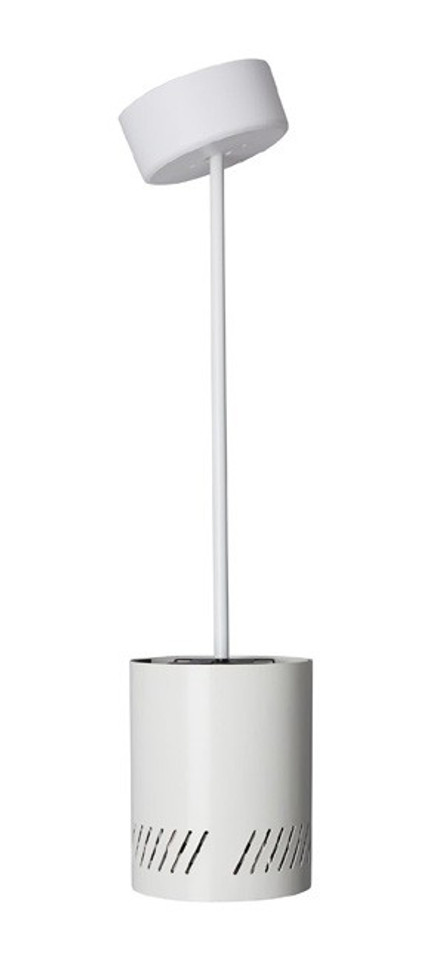

The compact, Pro Four-Cell Pendant is ideal for use in medium- to long-throw, pendant style applications. The luminaire is provided with a stem and canopy kit available in a variety of lengths.Manufactured from high-grade, powder-coated aluminum and steel, the luminaire is entirely convection cooled for silent operation.

The Pro Four-Cell Pendant includes an onboard 100–277 VAC power supply nearly located in the canopy for easy installation. Intensity control is achieved with a direct, wired-DMX connection to the luminaire.

ArcSystem has been specifically developed for auditorium lighting applications where high-quality, extremely accurate and smooth dimming is required. The use of onboard device management in the driver allows all luminaires to be addressed remotely, ensuring fast and simple installation.

Specifications

APPLICATIONS

• Auditoriums
• Work lights
• Lobbies
• Houses of worship
• Museums
• Studios

FEATURES

• Wired DMX and RDM control protocols
• Stepless, smooth dimming to absolute zero
• Convection cooled
• Fan-free, silent operation
• Various color options
• Available in a Dual-Input UL924 Listed Emergency version

Specifications

Source

• LED details: Bridgelux Vero 13 (standard) Vesta 15 (FTW)
• Max field lumens: 8,445 (5000 K 37°)
• Max total lumens: 9,152 (5000 K 37°)
• Lumens per watt: 91
• L70 rating (hours to 70% output): 50,000 hours

Color

• Colors used: Fixed white
• Color temperature range: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
• Fade to warm: Optional on 2700 K and 3000 K

Optical

• Beam angle range: 19 / 24 / 37 / 60
• CRI: >90
• TM-30-18 data: Refer to ArcSystem Photometry and Color Info Guide
• Photometry data: See below or refer to ArcSystem Photometry and Color Info Guide

Control

• Input method: DMX-512 via 8 position header in canopy
• Protocols: DMX, RDM
• Modes (footprint): 1-channel / 4-channel
• RDM configuration: Yes (with RDM driver option)
• UI type: No Local UI
• Local control: No

Electrical

• Voltage range: 100–277 VAC
• Input method: Hard-wired terminals in canopy
• Inrush
  • 15 A at 120 V (first half-cycle)
  • 15 A at 240 V (first half-cycle)
• Wattage (max / standby): 100 W / <1 W
• Current draw
  • 84 A at 120 V
  • 46 A at 240 V
• Power factor: >0.9
• Driver and Power Supply: Integrated and Internal, no remote driver options

Thermal

• Ambient operating temp: 0°–40° C (32°–104° F)
• Fan (controllable): N/A (convection cooled)
• BTUs/hour: 341

Physical

• Materials: Die-cast aluminum and cold-rolled steel
• Color options: Black, white or custom color
• Mounting options: Stem & Canopy (fits to 4” Square contractor backbox)
• Max ceiling angle: 34°
• IP rating: IP-20 (dry locations only)
• Weight (without stem): 6.35 kg (14 lb)
• Included accessories: Stem & canopy kit
