Overview

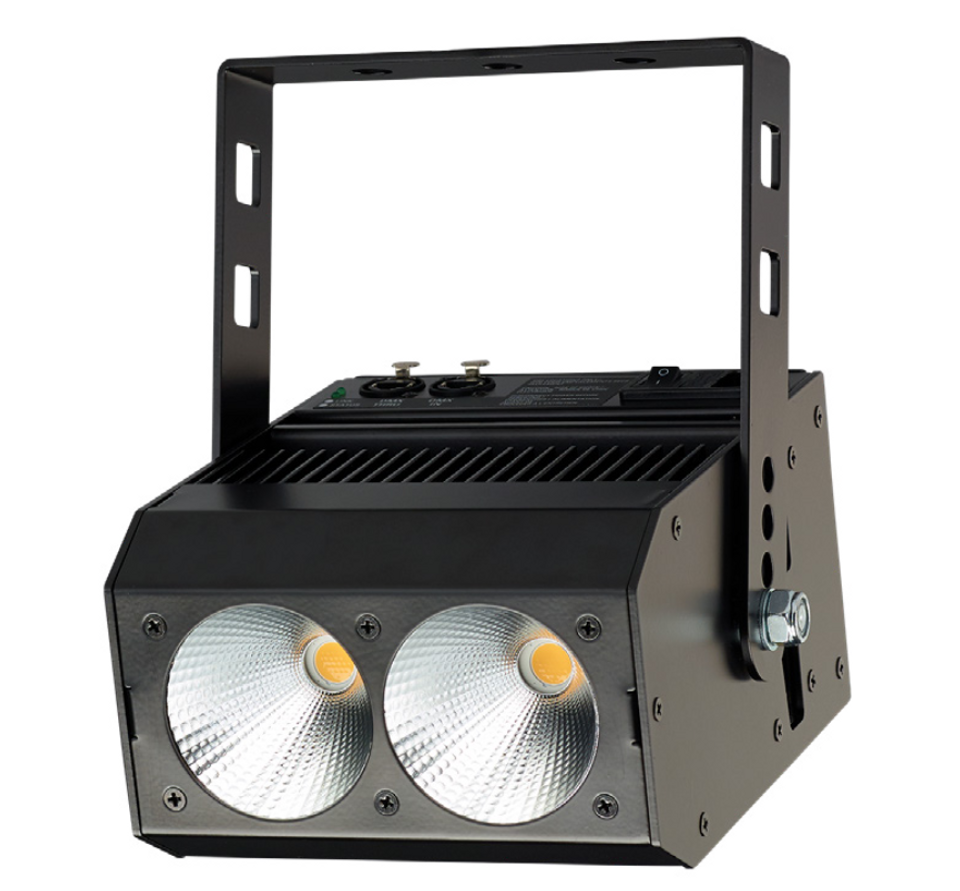

The Pro Two-Cell is ideal for medium-throw LED illumination. Theluminaire is designed to fit in locations where hanging space islimited, and is equipped with a yoke for maximum focusing flexibility.

Manufactured from high-grade, powder-coated aluminum and steel,the Pro Two-Cell is entirely convection-cooled, meaning zero noiseemission.The Pro Two-Cell luminaire connects directly to a mains supply and issupplied complete with an onboard power supply. Intensity control isachieved with a direct wired-DMX connection to the luminaire’s RJ45/etherCON connectors.

ArcSystem has been specifically developed for auditorium-lightingapplications where high-quality, extremely accurate and smoothdimming is required. The use of onboard device management in thedriver allows all luminaires to be addressed remotely, ensuring fastand simple installation.

APPLICATIONS

• Auditoriums
• Worklights
• Lobbies
• Houses of worship
• Museums
• Studios

FEATURES

• Wired-DMX and RDM control protocols
• Stepless, smooth dimming to absolute zero
• Convection-cooled
• Silent operation
• Black or white paint finish options
• Custom color paint finishes available by special order
• Available as a dual-input emergency version

Specifications

Source

• LED details: Bridgelux Vero 13 (standard) Vesta 15 (FTW)
• Max field lumens: 4,370 (5000 K 37°)
• Lumens per watt: 87
• L70 rating (hours to 70% output): 50,000 hours

Color

• Colors used: Fixed white
• Color temperature range: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
• Fade to warm: Optional on 2700 K and 3000 K

Optical

• Beam angle range: 19 / 24 / 37 / 60
• CRI: >90
• TM-30-18 data: Refer to ArcSystem photometry guide
• Photometry data: See below or refer to ArcSystem photometry guide

Control

• Input method: DMX-512 via RJ45 etherCON connector
• Protocols: DMX, and RDM
• Modes (footprint): 1-channel / 2-channel
• RDM configuration: Yes
• UI type: No Local UI
• Local control: No

Electrical

• Voltage range: 100–240 VAC IEC or 100–277 VAC hard-wired
• Input method
• Standard luminaire options:
• Option 1: IEC Connector
• Option 2: wiring compartment with one half-inch knock-outs for field wiring
• Emergency luminaire: Wiring compartment with two half-inch knock-outs for field wiring
• Inrush: 20 A Max at 120 V (25 C)
• Wattage (max /standby): 50 W / <3 W
• Current draw: 0.42 A at 120 V

Thermal

• Ambient operating temp: 0°–40° C (32°–104° F)
• Fan (controllable): N/A (convection cooled)
• BTUs/hour: 171

Physical

• Materials: Die-cast aluminum and cold-rolled steel
• Color options: Black, white or custom color
• Mounting options: Yoke
• IP rating: IP-20 (dry locations only)
• Weight: 3.63 kg (8.00 lb)

Emergency Connections

A dual-input emergency version of this luminaire is available. Emergency luminaires require two line-voltage inputs that perform the following functions:

• Normal power/emergency power
• Normal power sense input

The sense input is used to detect whether normal utility power has been lost. This will force the luminaire on at 100% intensity running fromthe maintained supply. There is no control of the luminaire via wired-DMX until normal utility power is restored to the sense input.
