Overview

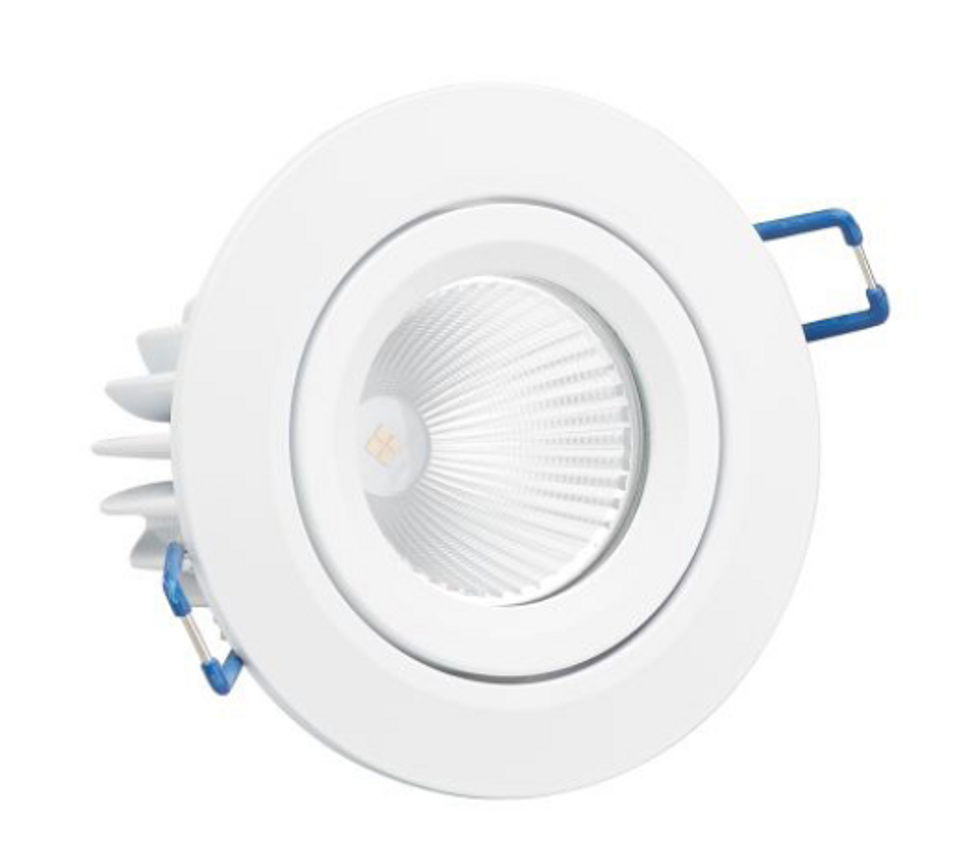

The compact Pro One-Cell Micro luminaire is a single-cellsolution that is ideally suited for recessed installations in areas thatrequire short-throw illumination. With a high grade, painted metalconstruction, the Pro One-Cell Micro delivers the quality performanceof the larger multi-cell versions, in a much smaller form factor.

The Pro One-Cell Micro luminaire requires a direct connection to theD2 Driver (see separate datasheet). In conjunction with the driverunit, up to two luminaires can be independently dimmed using thewired DMX/RDM connection.

ArcSystem has been specifically developed for auditorium lightingapplications where high-quality, extremely accurate and smoothdimming is required. The use of onboard device management in thedriver allows all fixtures to be addressed remotely, ensuring fast andsimple installation.

APPLICATIONS

• Auditoriums
• Work lights
• Lobbies
• Houses of worship
• Retail
• Museums
• Studios

FEATURES

• DMX/RDM
• Stepless smooth dimming to blackout
• Convection cooled
• Fan-free, silent operation
• Multiple color-temperature and fixture color options

Specifications

Source

• LED details: Lumiled Luxeon® 1202 CoB
• Max field lumens: 581 (3000 K 37°)
• Max total lumens: 632 (3000 K 37°)
• Lumens per watt: 52
• L70 rating (hours to 70% output): 50,000 hours

Color

• Colors used: Fixed white
• Color temperature range: 2700 K, 3000 K, 3500 K, 4000 K
• Fade to warm: N/A

Optical

• Beam angle range: 19, 24, 37, 60
• CRI: >90
• TM-30-18 data: Refer to ArcSystem photometry guide
• Photometry data: See below or refer to ArcSystem photometry guide

Control (via separate driver)

• Input method: DMX-512 via RJ45 connector
• Protocols: DMX, RDM
• Modes (footprint): 1-channel
• RDM configuration: Yes
• UI type: No UI, Configuration via RDM
• Local control: No

Electrical

• Voltage range: 48V DC (requires separate D2 driver to operate)
• Input method: 4-position (2-pole) Molex® connector with hard-wired 90 cm (36 in) power cord
• Inrush (Driver and two fixtures): D2 Driver: 20 A at 120 VAC
• Wattage (typical /standby): 12 W/<1 W
• Current draw (via driver): 0.1 A at 120 VAC

Thermal

• Ambient operating temp: 0°–40°C (32°–104°F)
• Fan (controllable): N/A (convection cooled)
• BTUs/hour: 41

Physical

• Materials: Die-cast aluminum and cold-rolled steel
• Color options: Black, white or custom color
• Mounting options: Recessed spring clips (for 3-24mm thick ceilings) or yoke
• IP rating: IP-20 (dry locations only)
• Weight (adj / yoke): 0.28 kg (0.61 lb)/0.22 kg (0.49 lb)
