Overview

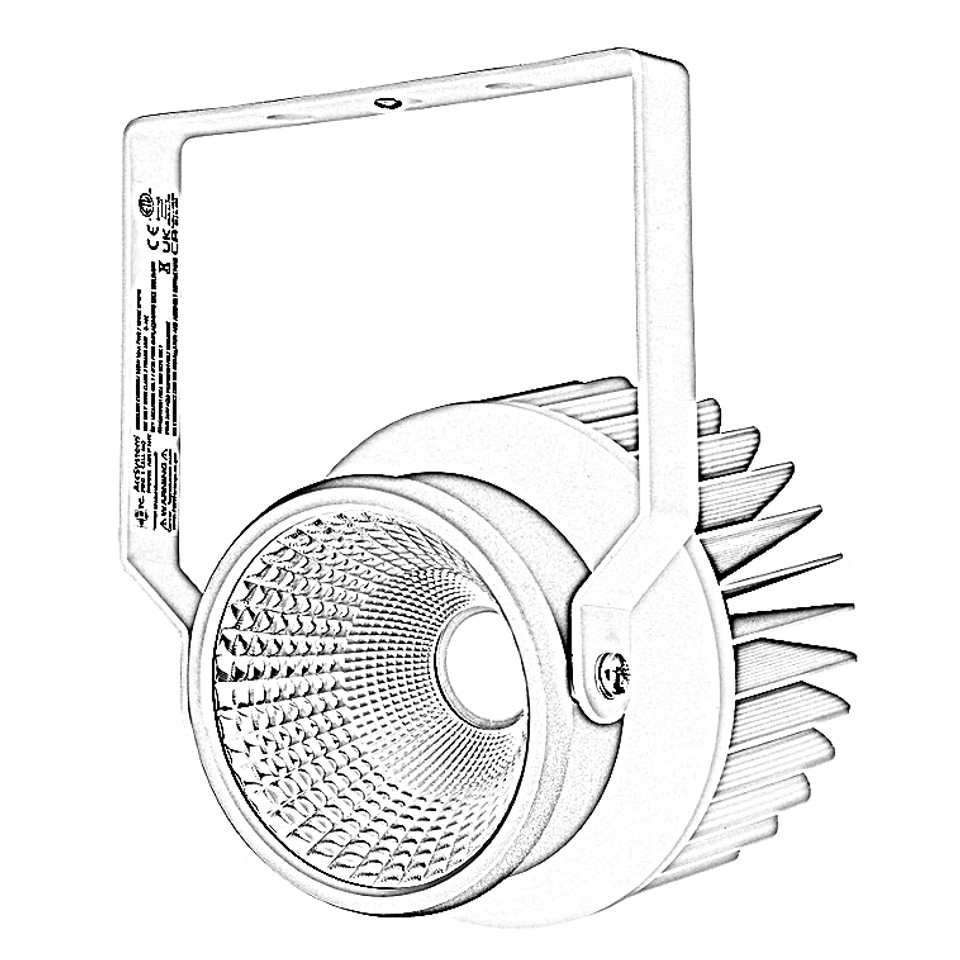

The Pro One-Cell High Output is a single-cell solution that is ideallysuited for areas that require medium- to long-throw illumination. Witha high grade, painted metal construction, the Pro One-Cell High Outputdelivers the quality performance of the smaller one-cell luminaires butwith a significantly greater output.

The Pro One-Cell High Output luminaire requires a direct connectionto the D1HO Driver (see separate datasheet). In conjunction with thedriver unit, the luminaire can be dimmed using the wired DMX/RDMconnection.

ArcSystem has been specifically developed for auditorium lightingapplications where high-quality, extremely accurate and smoothdimming is required. The use of onboard device management in thedriver allows all fixtures to be addressed remotely, ensuring fast andsimple installation.

APPLICATIONS

• Auditoriums
• Work lights
• Lobbies
• Houses of worship
• Retail
• Museums
• Studios

FEATURES

• DMX/RDM
• Stepless smooth dimming to blackout
• Convection cooled
• Fan-free, silent operation
• Multiple color-temperature and fixture color options

Specifications

Source

• LED details: Lumiled 1321 CoB
• Max field lumens: 8,723 (3000 K 50°)
• Max total lumens: 9,965 (3000 K 24°)
• Lumens per watt: 99
• L70 rating (hours to 70% output): 50,000 hours

Color

• Colors used: Fixed white
• Color temperature range: 2700 K/3000 K
• Fade to warm: N/A

Optical

• Beam angle range: 24/37/50
• CRI: >90
• TM-30-18 data: Refer to ArcSystem photometry guide
• Photometry data: See below of refer to ArcSystem photometry guide

Control (via separate driver)

• Input method: DMX-512 via RJ45 connector
• Protocols: DMX/RDM
• Modes (footprint): 1-channel
• RDM configuration: Yes
• UI type: No UI, Configuration via RDM
• Local control: No

Electrical

• Voltage range: 48 VDC Max (requires separate D1HO driver to operate)
• Input method: 2-position (2-pole) 7 A Molex® connector with hard-wired 40 in (1 m) power cord
• Inrush (inc driver): 65 A (first half-cycle) at 120 V
• Wattage (max inc driver): 100 W / <3 W
• Current draw (inc driver): 0.83 A at 120 V
• DC drive current: 2.3 A at 48 VDC
• Max cable length from driver to luminaire: 1 m (39.4 in)

Thermal

• Ambient operating temp: 0°–40°C (32°–104°F)
• Fan (controllable): N/A (convection cooled)
• BTUs/hour: 341

Physical

• Materials: Die-cast aluminum and cold-rolled steel
• Color options: Black, white or custom color
• Mounting options: Recessed with spring clips (for 3–24 mm thick ceilings) or Yoke-mounted
• Maximum fixture tilt: 45°
• IP rating: IP-20 (dry locations only)
• Weight (adj / fixed / yoke): 1.58 kg (3.48 lb)
• Min/Max Ceiling Thickness: 3–24 mm
• Minimum Luminaire Installation Spacing
• The Pro One-Cell HO Luminaire must be installed with the following minimum spacings:
• Center to Center of adjacent luminaires: 610 mm (24 in)
• Top of luminaire to overhead building member: 76.2 mm (3 in)
• Luminaire center to side building member: 305 mm (12 in)
