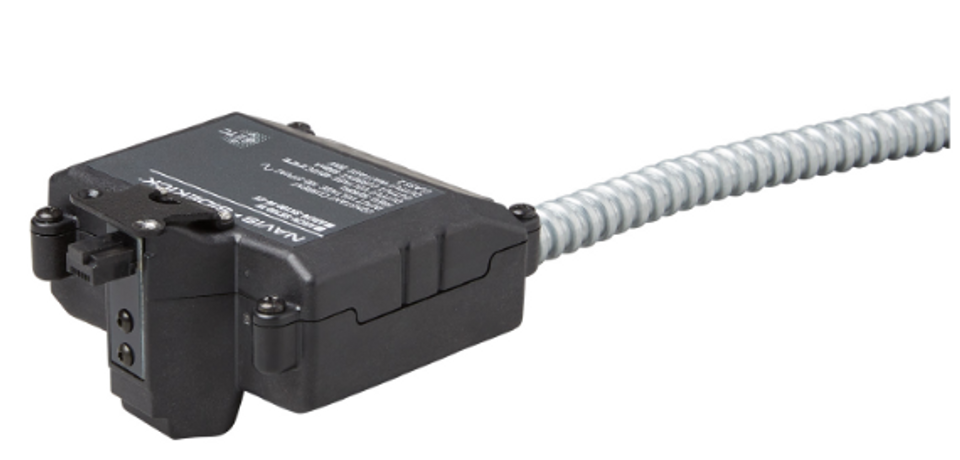

Navis 100 Sidekick for white light luminaires

SKU: ETC-7496A1008

Overview

The Navis 100 Sidekick is a local driver designed for the Navis 100 Fixed White and Fade to Warm (FTW) luminaires. Using any line-dimmed AC power source, Sidekick presents an easy-to-use dimmable driver solution. Whether being used as a retrofit component to bring Navis into an existing installation or as a supplement to a larger Navis install with F-Drive remote drivers, the Navis 100 Sidekick provides beautifully stepless dimming throughout the complete 0% to 100% intensity range.

APPLICATIONS

  • Retrofit installations for Navis 100
  • Systems where centralized drivers are not preferred

PRODUCT FEATURES

  • Smooth and stepless AC Line dimming
  • Compatible for 100–277 VAC line voltage
  • Designed for Navis 100 Fixed White and Navis 100 FTW
  • Does not restrict Navis 100 pan and tilt positioning
  • Mechanically attaches to Navis 100 for installation in standard Navis 100 hole size
  • Plenum rated

Specifications

Control

  • Protocols: Dimming controlled via AC line dimming on primary power circuit
  • Dimming Resolution*: Dimming to 0.01%
  • Smoothing: None
  • Local Control: None

Electrical

  • Voltage Input: 100–277 VAC 50/60 Hz
  • Power Factor: > 0.9
  • Output Connector: Custom RJ45 connects directly to Navis 100
  • Inrush
    • 3 A at 120 V (first half-cycle)
    • 5 A at 240 V (first half-cycle)
  • Dimmer Compatibility*: Forward and reverse phase dimming
  • White FTW
    • Output: 600 mA, 450 mA
    • Output Wattage: 28 W, 20 W
    • Output Connector: RJ45 plug, RJ45 plug
    • Max Input Current @ 100 VAC: 0.30 A, 0.30 A
    • Max Input Wattage: 30 W, 30 W

Thermal

  • Ambient Operating Temperature: 0°C–40°C (32°F–104°F)
  • Fan (Controllable): Convection cooled, no fans
  • BTUs/hour (120 V / 240 V): 102 BTU/hr

Physical

  • Materials: Plenum-rated enclosure
  • Color Options: Black
  • Mounting Options
    • Mounts directly to Navis 100 luminaire via RJ45 connection and three point screw attachment.
    • May not be used with Navis Surface Cylinder or Pendant mounting accessories.
  • Cable
    • UL: Pre-wired six foot (6 ft) flexcon (3/8 in)
    • CE: Pre-wired two meter (2 m) LSZH cable
  • IP Rating: IP-20 (dry location)
  • Humidity: 5%–95% non-condensing
  • Weight
    • UL: 0.63 kg (1.4 lb)
  • CE: 0.45 kg (1.0 lb)
