Overview

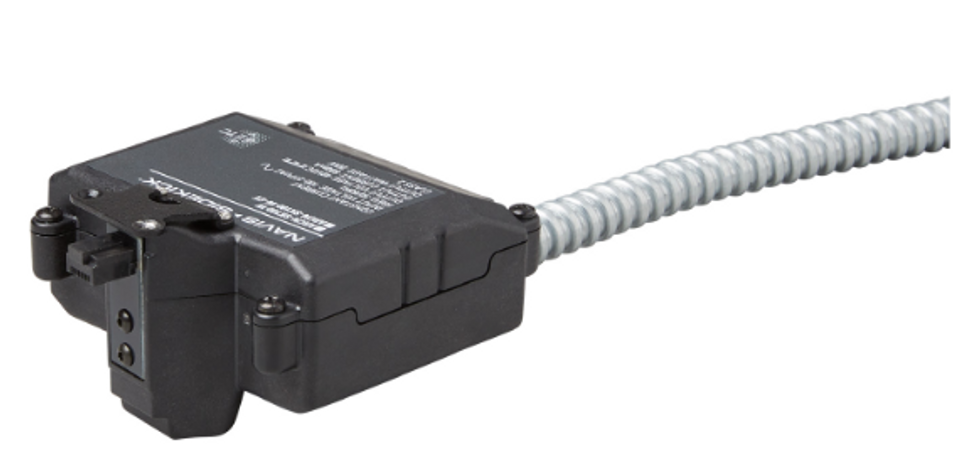

The Navis 100 Sidekick is a local driver designed for the Navis 100 Fixed White and Fade to Warm (FTW) luminaires. Using any line-dimmed AC power source, Sidekick presents an easy-to-use dimmable driver solution. Whether being used as a retrofit component to bring Navis into an existing installation or as a supplement to a larger Navis install with F-Drive remote drivers, the Navis 100 Sidekick provides beautifully stepless dimming throughout the complete 0% to 100% intensity range.

APPLICATIONS

• Retrofit installations for Navis 100
• Systems where centralized drivers are not preferred

PRODUCT FEATURES

• Smooth and stepless AC Line dimming
• Compatible for 100–277 VAC line voltage
• Designed for Navis 100 Fixed White and Navis 100 FTW
• Does not restrict Navis 100 pan and tilt positioning
• Mechanically attaches to Navis 100 for installation in standard Navis 100 hole size
• Plenum rated

Specifications

Control

• Protocols: Dimming controlled via AC line dimming on primary power circuit
• Dimming Resolution*: Dimming to 0.01%
• Smoothing: None
• Local Control: None

Electrical

• Voltage Input: 100–277 VAC 50/60 Hz
• Power Factor: > 0.9
• Output Connector: Custom RJ45 connects directly to Navis 100
• Inrush
  • 3 A at 120 V (first half-cycle)
  • 5 A at 240 V (first half-cycle)
• Dimmer Compatibility*: Forward and reverse phase dimming
• White FTW
  • Output: 600 mA, 450 mA
  • Output Wattage: 28 W, 20 W
  • Output Connector: RJ45 plug, RJ45 plug
  • Max Input Current @ 100 VAC: 0.30 A, 0.30 A
  • Max Input Wattage: 30 W, 30 W

Thermal

• Ambient Operating Temperature: 0°C–40°C (32°F–104°F)
• Fan (Controllable): Convection cooled, no fans
• BTUs/hour (120 V / 240 V): 102 BTU/hr

Physical

• Materials: Plenum-rated enclosure
• Color Options: Black
• Mounting Options
  • Mounts directly to Navis 100 luminaire via RJ45 connection and three point screw attachment.
  • May not be used with Navis Surface Cylinder or Pendant mounting accessories.
• Cable
  • UL: Pre-wired six foot (6 ft) flexcon (3/8 in)
  • CE: Pre-wired two meter (2 m) LSZH cable
• IP Rating: IP-20 (dry location)
• Humidity: 5%–95% non-condensing
• Weight
  • UL: 0.63 kg (1.4 lb)
• CE: 0.45 kg (1.0 lb)
