Overview

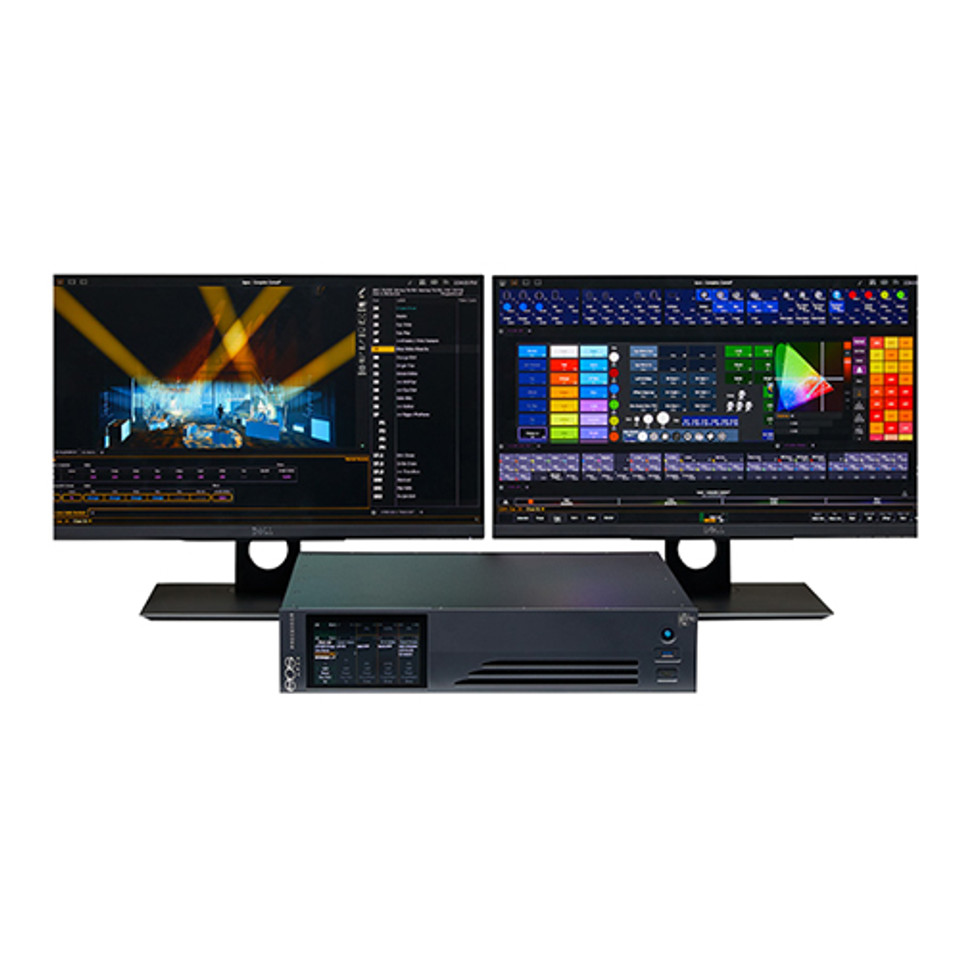

The Eos Apex Processor carries the same power as Apex consoles, in a 2U 19-inch rack mount unit. It includes the same one- and ten-gigabit Ethernet connections as Apex consoles, making it a great choice to drive a high-powered rig on its own, or serve as a backup to keep large systems running safely. You can even monitor and interact with your system using the built-in haptic touchscreen. Or make the Eos Apex Processor into a workstation by adding USB-connectable devices - including touchscreens, Eos Fader Wings, and the Eos Programming Wing.

Eos Family software includes:

• Approachable yet powerful syntax for programmers of every level
• Industry-leading color control tools
• Magic Sheets for custom programming and displays
• Augment3d 3D programming and visualization environment
• Virtual Media Server function for pixel-mapping
• Timecode and automation integration
• Multi-user and multi-programmer working environment

Specifications

HARDWARE AND INTERFACES

• 2U 19-inch rack-mount form factor
• One 5-inch high-resolution front panel display, with multi-touch and haptic touch feedback
• Supports three external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
• One dimmable warm-white LED accent light
• Solid-state hard drive
• Dedicated graphics processing
• IEC power input (100–240 VAC at 50/60 Hz), fused mains power switch, locking regionalized power cable included
• Four individually configurable Gigabit Ethernet ports, etherCON connectors, PoE++ (802.3bt compliant PSE)
• Two individually configurable 10-Gigabit SFP+ ports, which accept modules for copper, single-mode fiber, or multi-mode fiber connections
• sACN and Art-Net network output protocols
• USB 3.1 ports, for flash drives, pointing devices, keyboards (4 USB A ports, 4 USB C ports)
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways

ELECTRICAL AND THERMAL

• Power consumption approximately 5 A at 120 V or 230/240 V
• Ambient room temperature 0°C to 35°C (32°F to 95°F)
• Ambient humidity up to 90% non-condensing

REGULATORY AND COMPLIANCE

• CE compliant
• cETLus listed
• UKCA marked
• FCC compliant
• RoHS compliant
• WEEE
