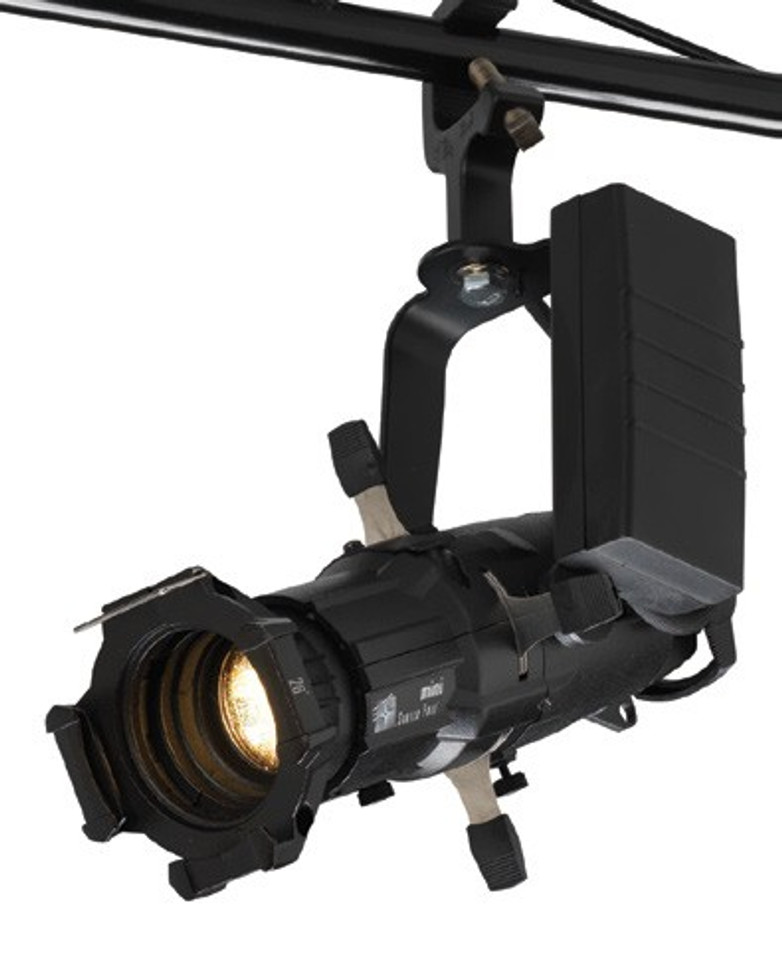

Source Four Mini LED F-Drive Canopy 3000 K/90+ CRI-Black

SKU: ETC-7063A1625
MSRP: $365.00

Overview

The Source Four Mini LED can go where no full-sized Source Four has gone before. ETC’s 12 W Source Four Mini LED features the same crisp optics, user-friendly functionality, and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.  The Source Four Mini LED has four field-angle choices and comes in a portable version for mounting with a clamp, a canopy-mount, or trackmount design. Surprisingly bright for its size, the Mini LED offers crystal-clear image projection and a bright, even field.

APPLICATIONS

  • Museums
  • Retail
  • Restaurants
  • Hospitality
  • Theatres

Features

  • Rugged, die-cast fixture body
  • 19°, 26°, 36°, and 50° interchangeable lens tubes
  • Long-life dimmable white LED source available in a wide
  • variety of color temperatures and color rendering levels
  • Three-plane shutters
  • Multiple accessories available for color, pattern, and filtering
  • Available for portable, canopy, and track mounting
  • F-Drive compatible versions available
  • Custom paint colors available; contact ETC

Specifications

Source

  • LED details: Lumileds 1204HD
  • Max field lumens: 671 (5000 K, 50°)
  • Lumens per watt: 43.0
  • L70 rating(hours to 70% output): 35,000

LED Color Temperature Data

  • Available color temperature options: 2700 K / 3000 K / 4000 K / 5000 K
  • CRI options
    • 90 CRI - 2700 K and 3000 K
    • 80 CRI - 3000 K, 4000 K and 5000 K
  • Red shift: No

Optical

  • Field angle options: 19° / 26° / 36° / 50°
  • Pattern projection: Yes
  • Pattern size: E (37.5 mm with a 25.4 mm image area). Holder included
  • Front accessory slot: Dual, captive accessory slots with 70 mm (2.75 in) media frame (included)

Electrical

  • Voltage range
    • 100–120 V 50/60 Hz
    • 230–240 V 50/60 Hz
  • Power cord length(portable VAC variant only): 190 cm (75 in)
  • Track adapter(Track variant only)
    • 120 V - OneTrack or DataTrack
    • 230 V - EUTRAC 3-circuit track adapter
    • Global Trac Pro (GA69) or Halo compatible
    • (AD1) adapters available on request.
    • AD1 adapter is compatible with Halo singlecircuit and two-circuit track systems
  • Wattage typical/max: 12 W Typical / 14 W Max
  • Inrush (first half-cycle)
    • 120 V - <1 A
    • 230 V - <1 A
  • Dimming compatability: Forward and reverse phase (120/230 VAC versions)

Thermal

  • Ambient operating temp: 0°C to 40°C (32°F to 104°F)
  • Fan (controllable): No fan
  • BTUs/hour: 40.95 typical / 47.77 max

F-Drive Variant Details

  • Approved drivers
    • F-Drive R12 CC150 Output Card Model Number: FD-ROC-CC150
    • F-Drive W1 CC Wall Mount Model Number: FDW1CCD and FDW1ECCD
  • Maximum units per approved driver
    • FD-ROC-CC150: four (4)
    • FD-W1-CCD: four (4)
    • FD-W1E-CCD: four (4)
  • Luminaire operating current: 350 mA
  • Input type
    • RJ45 in and thru connector
    • Minimum required conductor gauge
    • 23 AWG / 0.25 mm²
  • Control
    • DMX control via F-Drive compatible models only via R12 CC150 or W1 CC drivers

Physical

  • Materials: Die-cast aluminum (A380 grade)
  • Color options: Black, white, or custom color
  • Mounting options: Track, Portable, or Canopy
  • Track adapter/Canopy color: Color matched to fixture
  • IP rating: IP20
  • Weight
    • Track Mount: 1.1 kg (2.4 lb)
    • Portable: 1.2 kg (2.6 lb)
    • Canopy: 1.2 kg (2.6 lb)
  • Included accessories
    • E-size pattern holder
    • Media frame Included with lens tube (both sold separately)
