Overview

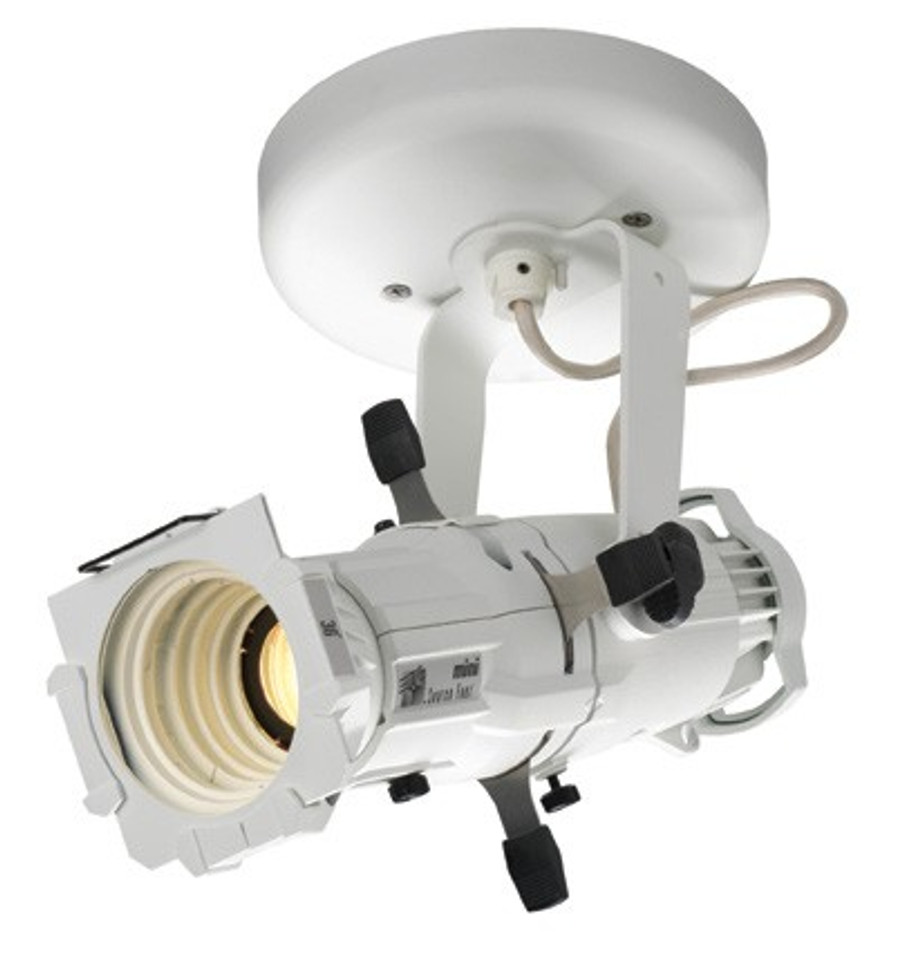

The Source Four Mini LED can go where no full-sized Source Four has gone before. ETC’s 12 W Source Four Mini LED features the same crisp optics, user-friendly functionality, and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.  The Source Four Mini LED has four field-angle choices and comes in a portable version for mounting with a clamp, a canopy-mount, or trackmount design. Surprisingly bright for its size, the Mini LED offers crystal-clear image projection and a bright, even field.

APPLICATIONS

• Museums
• Retail
• Restaurants
• Hospitality
• Theatres

Features

• Rugged, die-cast fixture body
• 19°, 26°, 36°, and 50° interchangeable lens tubes
• Long-life dimmable white LED source available in a wide
• variety of color temperatures and color rendering levels
• Three-plane shutters
• Multiple accessories available for color, pattern, and filtering
• Available for portable, canopy, and track mounting
• F-Drive compatible versions available
• Custom paint colors available; contact ETC

Specifications

Source

• LED details: Lumileds 1204HD
• Max field lumens: 671 (5000 K, 50°)
• Lumens per watt: 43.0
• L70 rating(hours to 70% output): 35,000

LED Color Temperature Data

• Available color temperature options: 2700 K / 3000 K / 4000 K / 5000 K
• CRI options
  • 90 CRI - 2700 K and 3000 K
  • 80 CRI - 3000 K, 4000 K and 5000 K
• Red shift: No

Optical

• Field angle options: 19° / 26° / 36° / 50°
• Pattern projection: Yes
• Pattern size: E (37.5 mm with a 25.4 mm image area). Holder included
• Front accessory slot: Dual, captive accessory slots with 70 mm (2.75 in) media frame (included)

Electrical

• Voltage range
  • 100–120 V 50/60 Hz
  • 230–240 V 50/60 Hz
• Power cord length(portable VAC variant only): 190 cm (75 in)
• Track adapter(Track variant only)
  • 120 V - OneTrack or DataTrack
  • 230 V - EUTRAC 3-circuit track adapter
  • Global Trac Pro (GA69) or Halo compatible
  • (AD1) adapters available on request.
  • AD1 adapter is compatible with Halo singlecircuit and two-circuit track systems
• Wattage typical/max: 12 W Typical / 14 W Max
• Inrush (first half-cycle)
  • 120 V - <1 A
  • 230 V - <1 A
• Dimming compatability: Forward and reverse phase (120/230 VAC versions)

Thermal

• Ambient operating temp: 0°C to 40°C (32°F to 104°F)
• Fan (controllable): No fan
• BTUs/hour: 40.95 typical / 47.77 max

F-Drive Variant Details

• Approved drivers
  • F-Drive R12 CC150 Output Card Model Number: FD-ROC-CC150
  • F-Drive W1 CC Wall Mount Model Number: FDW1CCD and FDW1ECCD
• Maximum units per approved driver
  • FD-ROC-CC150: four (4)
  • FD-W1-CCD: four (4)
  • FD-W1E-CCD: four (4)
• Luminaire operating current: 350 mA
• Input type
  • RJ45 in and thru connector
  • Minimum required conductor gauge
  • 23 AWG / 0.25 mm²
• Control
  • DMX control via F-Drive compatible models only via R12 CC150 or W1 CC drivers

Physical

• Materials: Die-cast aluminum (A380 grade)
• Color options: Black, white, or custom color
• Mounting options: Track, Portable, or Canopy
• Track adapter/Canopy color: Color matched to fixture
• IP rating: IP20
• Weight
  • Track Mount: 1.1 kg (2.4 lb)
  • Portable: 1.2 kg (2.6 lb)
  • Canopy: 1.2 kg (2.6 lb)
• Included accessories
  • E-size pattern holder
  • Media frame Included with lens tube (both sold separately)
