Overview

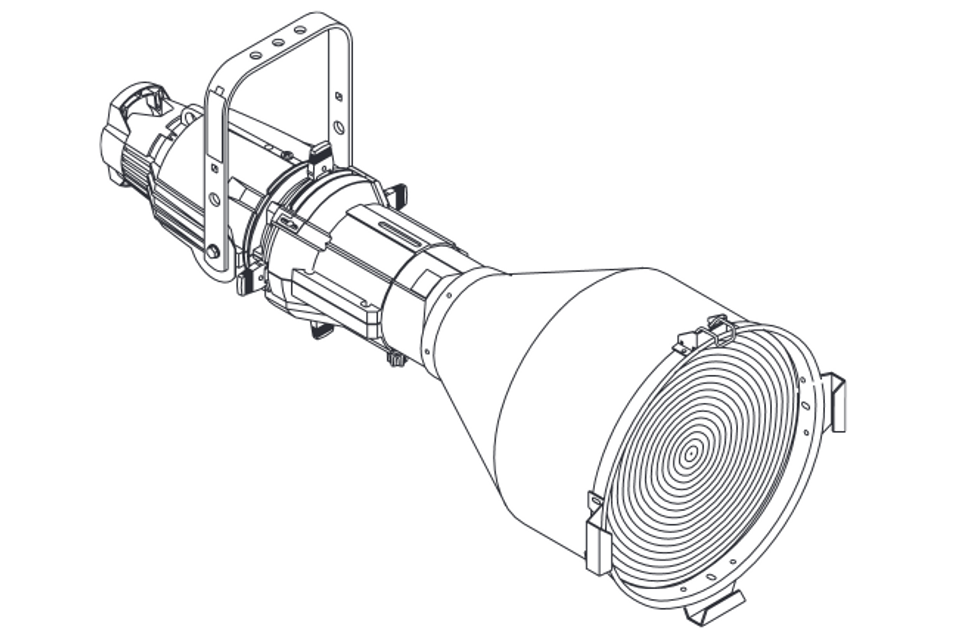

The fixture that changed the lighting industry. Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.
Specifications
PHYSICAL
- Rugged, die cast aluminum construction
- Rotating shutter assembly ±25˚
- 20 gauge stainless steel shutters in a tri-plane assembly
- Interchangeable lens tubes with smooth–running teflon guides provide nine user-fit field angle options
- Thermally insulated rear handle
- High impact, thermally insulated knobs and shutter handles
- Two accessory slots and a top mounted, gel frame retainer
- Steel yoke with two mounting positions
- Positive locking single-clutch fixture body
- Slot for glass or stainless steel patterns
- Wide accessosry slot with sliding cover for motorized pattern devices or optional iris
- UL and cUL Listed
ELECTRICAL
- 115-240V, 50/60Hz
- High temperature 3-conductor 36” leads in a glass fiber outer
- Supports ETC Dimmer Doubling™technology
LAMP
- 750W maximum
- HPL – compact tungsten filament contained in a krypton- filled quartz envelope (see table for suitable lamp types)
- Patented filament geometry provides extremely efficient light collection and transmission
- Integral die cast aluminum heat sink lamp base
OPTICAL
- Re-optimized optical system for improved photometric performance and field uniformity
- Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
- Reflector secured with anti-vibration shock mounts
- micro-groove plastic fresnel lens
- Lens(es) secured with anti-vibration shock mounts
- Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
- Beam edge continually adjustable hard-to-soft
- Interchangeable lens barrels permit selection of 5˚, 10˚, 14°, 19˚, 26˚, 36˚, 50˚, 70° and 90° field angles as well as 19˚, 26˚, 36˚, and 50˚ EDLT lenses
