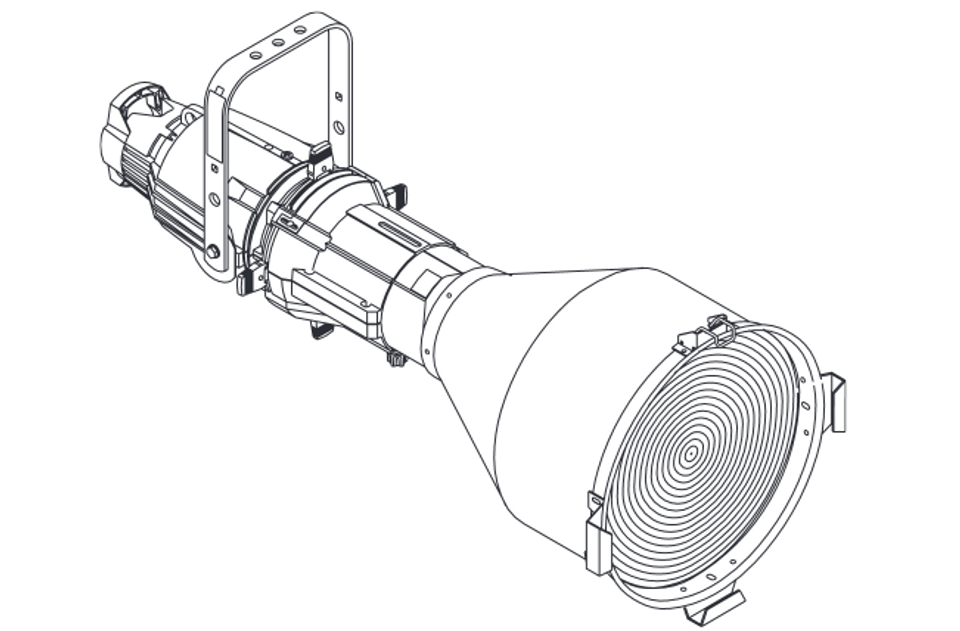

Source Four 10° Fixture, White w/NEMA L5-20P (twist lock)

SKU: ETC-7060A1006-1C
MSRP: $1,210.00

Overview

The fixture that changed the lighting industry. Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.

Specifications

PHYSICAL

  • Rugged, die cast aluminum construction
  • Rotating shutter assembly ±25˚
  • 20 gauge stainless steel shutters  in a tri-plane assembly
  • Interchangeable lens tubes with smooth–running teflon guides provide nine user-fit field angle options
  • Thermally insulated rear handle
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking single-clutch fixture body
  • Slot for glass or stainless steel patterns
  • Wide accessosry slot with sliding cover for motorized pattern devices or optional iris
  • UL and cUL Listed

ELECTRICAL

  • 115-240V, 50/60Hz
  • High temperature 3-conductor 36” leads in a glass fiber outer
  • Supports ETC Dimmer Doubling™technology

LAMP

  • 750W maximum
  • HPL – compact tungsten filament contained in a krypton- filled quartz  envelope (see table for suitable lamp types)
  • Patented filament geometry provides extremely efficient light collection and transmission
  • Integral die cast aluminum heat sink lamp base

OPTICAL

  • Re-optimized optical system for improved photometric performance and field uniformity
  • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than  90%  infrared radiation (heat) and reflects greater  than  95%  of visible light
  • Reflector secured with anti-vibration shock mounts
  • micro-groove plastic fresnel lens
  • Lens(es) secured with anti-vibration shock mounts
  • Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
  • Beam edge continually adjustable hard-to-soft
  • Interchangeable lens barrels permit selection of 5˚, 10˚, 14°, 19˚, 26˚, 36˚, 50˚, 70° and 90° field angles as well as 19˚, 26˚, 36˚, and 50˚ EDLT lenses
