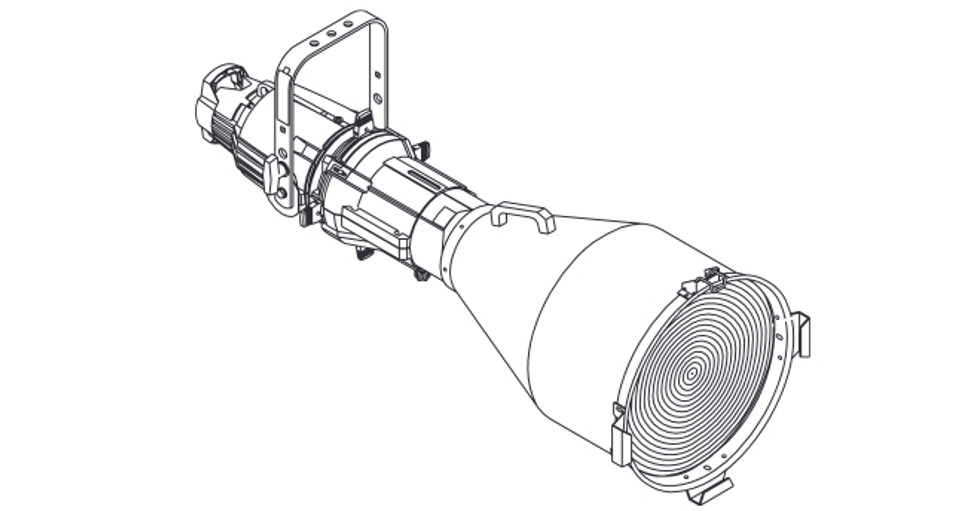

Source Four 5° Fixture, White

SKU: ETC-7060A1005-1
MSRP: $1,360.00

Overview

405-1 Source Four 5° Fixture, White

Specifications

PHYSICAL

  • Rugged, die cast aluminum construction
  • Rotating shutter assembly ± 25˚
  • 20 gauge stainless steel shutters in a tri-plane assembly
  • Interchangeable lens tubes with smooth-running teflonguides provide nine user selectable field angle options
  • Thermally insulated rear handle
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking double-clutch fixture body
  • Slot for glass or stainless steel patterns
  • Wide accessory slot with sliding cover for motorized patterndevices or optional iris
  • UL and cUL Listed

ELECTRICAL

  • 115-240V, 50/60Hz
  • High temperature 3-conductor 36” leads in a glass fiber outersleeve
  • Supports ETC Dimmer Doubling™ technology

LAMP

  • 750W maximum
  • HPL – compact tungsten filament contained in a krypton-filled quartz envelope (see table for suitable lamp types)
  • Patented filament geometry provides extremely efficient lightcollection and transmission
  • Integral die cast aluminum heat sink lamp base

OPTICAL

  • Re-optimized optical system for improved photometricperformance and field uniformity
  • Faceted borosilicate reflector with dichroic cold mirror coatingremoves greater than 90% infrared radiation (heat) andreflects greater than 95% of visible light
  • Reflector secured with anti-vibration shock mounts
  • micro-groove plastic fresnel lens
  • Lens(es) secured with anti-vibration shock mounts
  • Tool free, positive locking X, Y and Z lamp centeringadjustments, unaffected by relamping
  • Beam edge continually adjustable hard-to-soft
  • Interchangeable lens barrels permit selection of 5˚, 10˚, 14°,19˚, 26˚, 36˚, 50˚, 70°, and 90° field angles as well as 19˚, 26˚,36˚, and 50˚ EDLT lenses
