Overview

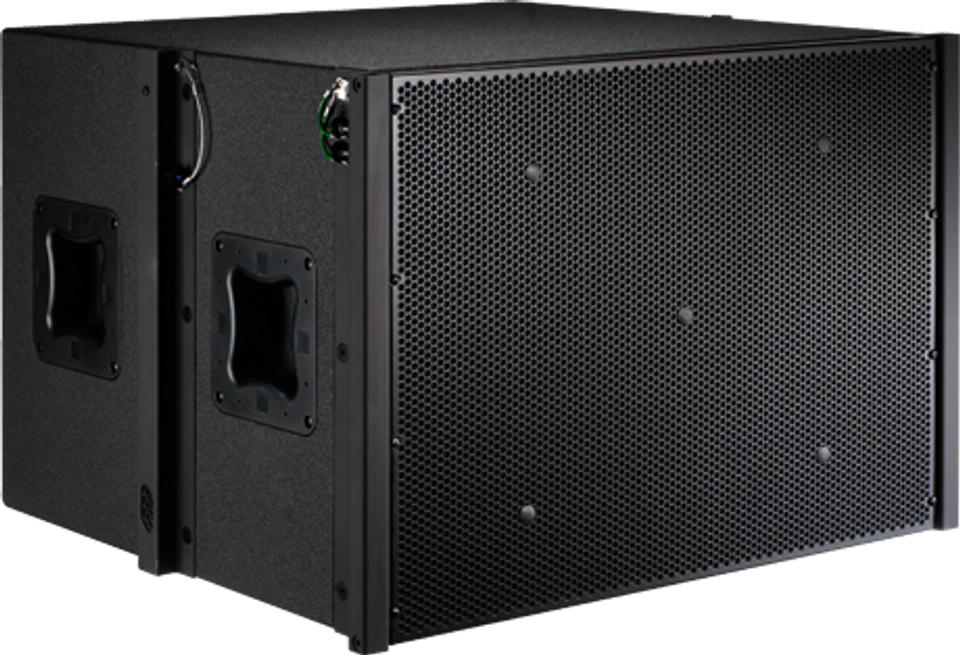

XCS312-FGB, WEATHERIZED, BLACK
Specifications
| Width | 28.58" (726mm) |
| Height | 20" (508mm) |
| Available Color | Black |
| Chassis Size | 304.8 mm |
| Coverage (Nominal -6 dB) H | 200° |
| Crossover Frequency | 100Hz |
| Enclosure Material | EVCoat®-coated birch plywood |
| Flying | Included |
| Frequency Response (-3 dB) | 45 - 100Hz |
| Grille | Powder-coated steel |
| HF Nominal Impedance | 8Ω |
| Input Connections | 2 Neutrik® NL8 |
| LF Nominal Impedance | 4Ω |
| LF Power Handling | 1000 W continuous, 4000 W peakWatts (60-100 Hz) |
| LF Transducer | 3 x 12-in DVX3120A |
| LF2 Power Handling | 500 W continuous, 2000 W peak (60-100 Hz) |
| Max. SPL/1m (calc) | 136dB (Half Space) |
| Passive Power Handling | 6000W peak |
| Peak SPL @ 10m | 121dB (4 Box Array @ 10 Meters) |
| Recommended High-Pass Frequency | 40Hz |
| Sensitivity 1 W/1 m | 100dB (Half Space) |
| Speaker Type | Line Arrays, Subs |
