Electro-Voice TX1152FM

Electro-Voice TX1152FM

Electro-Voice TX1152FM

Electro-Voice TX1152FM

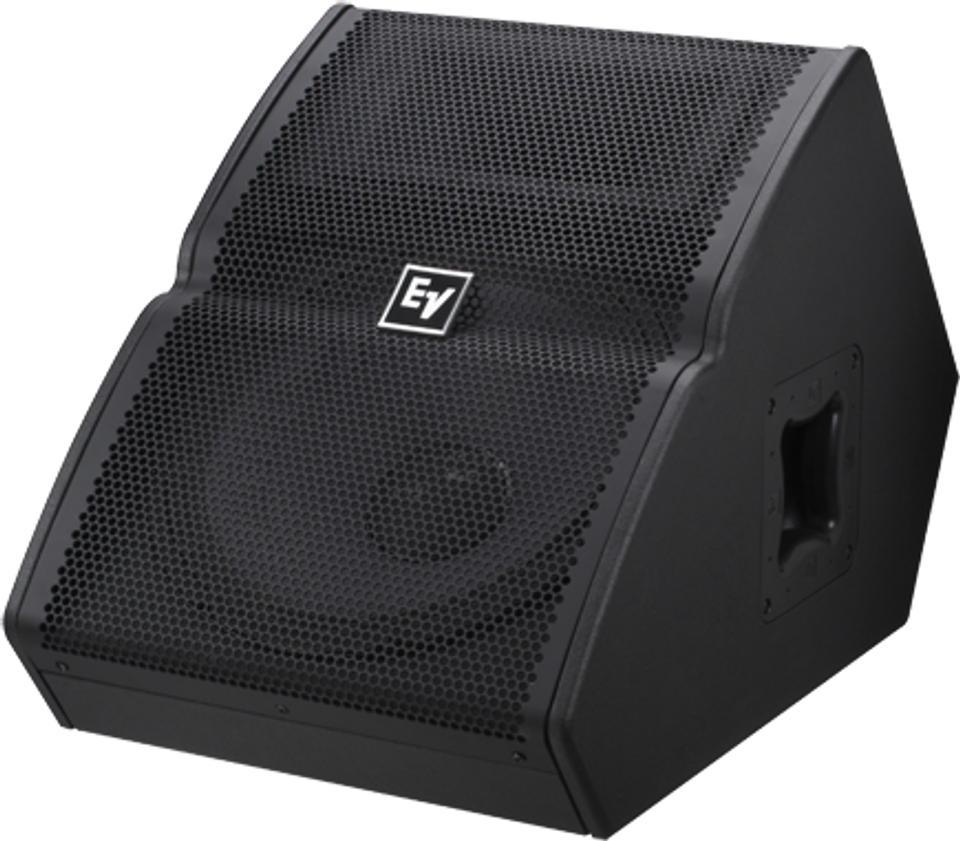

500 watts, 15-inch two-way dedicated vertical floor monitor, passive, 90° x 50° horn pattern, SMX2151 woofer, DH3 compression driver, patented SST (Signal Synchronized Transducers), Backbone grille, angled input panel, rotatable logo, black EVCOAT.

SKU: EV-F.01U.302.278
MSRP: $1,219.00

Overview

Our Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.

Features

  • Two-way, high-output design
  • Vented LF enclosure
  • Neutrik Speakon® paralleled pass-through connectors
  • Two integrated handles
  • Ideal for small-to-medium stages
  • Signal Synchronized Transducers™ for woofer/tweeter alignment
  • Ultra low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Integrated 24 dB/octave crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Black EVCoat™ finish

Specifications

Frequency Range (-10 dB)45 - 20000kHz
Weight Net51.81lbs (23.5kg)
Depth25.79" (655mm)
Width17.28" (439mm)
Height18.7" (475mm)
Available ColorBlack
Coverage (Nominal -6 dB) H90°
Coverage (Nominal -6 dB) V50°
Crossover Frequency1750Hz
Enclosure MaterialPlywood and MDF with EVCOAT
FamilyTour X
FlyingNo
Frequency Response (-3 dB)65 - 20000Hz
HF TransducerDH3
Input ConnectionsParallel Neutrik® NL4
Internal CrossoverYes
LF TransducerSMX2151
Max. SPL/1m (calc)133dB
Minimum Impedance6.2Ω
Nominal Impedance (Passive)
Power Rating2000W
Powered or PassivePassive
Recommended High-Pass Frequency45Hz
Rotatable HornNo
Sensitivity 1 W/1 m100dB
Speaker TypeMonitor
System Power Handling (Continuous/Program/Peak)500Watts
Woofer Size15inch
