Overview

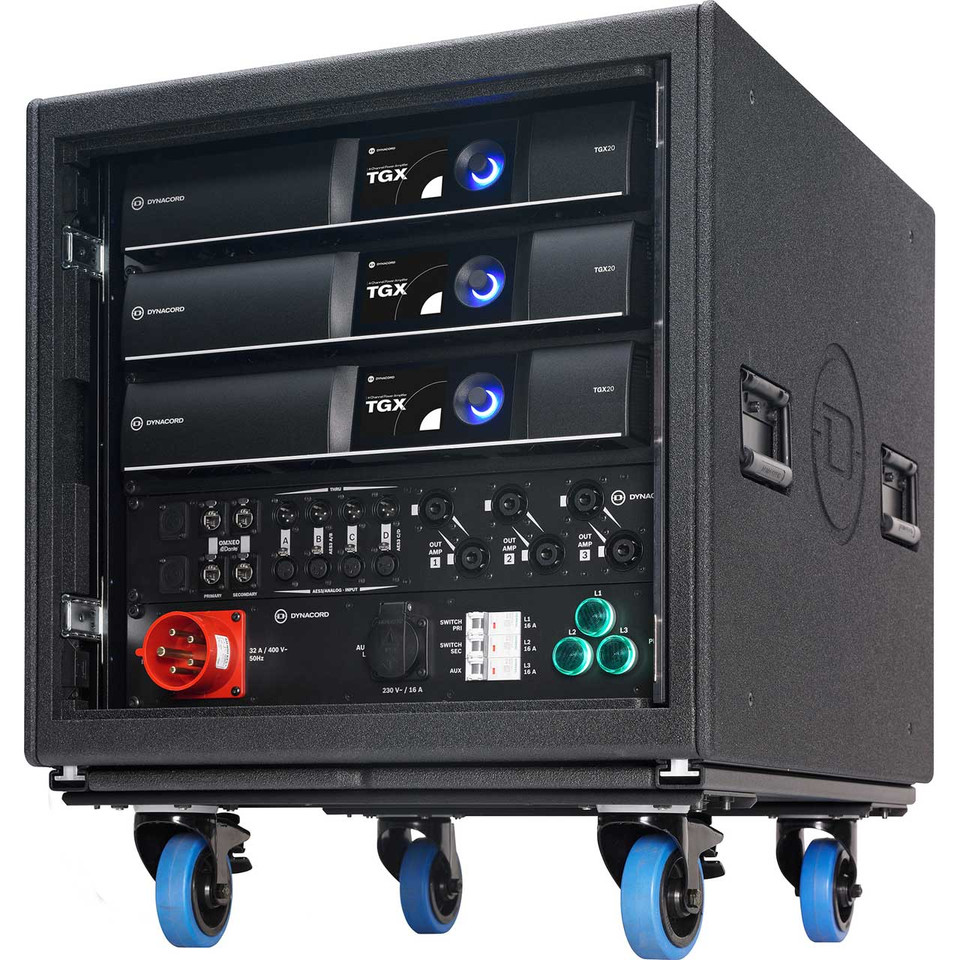

Dynacord SR20TGX-US TGX System Rack is a modular solution designed and built for touring professionals, by touring professionals. The 10 rack unit TGX system rack is pre-configured with three TGX20 DSP amplifiers plus two independent network switches for glitch-free operation and offers a variety of professional features such as integrated sliding rack doors, customizable I/O options, and a reversible mounting for the power distribution. The TGX system racks can be vertically stacked and locked together to give up to 180kW of output power in the same compact footprint as a conventional amplifier rack.

Features

• Preconfigured System rack including three TGX20 DSP amplifiers, power distribution, input and output interfaces and network redundancy
• Power distribution mountable either on front or rear
• Integrated rack sliding doors
• Stackable on a single dolly
• Power distribution available for the EU and NA

Specifications

• Amplifier channels: 12
• System rack empty with/without dolly board: 53,0 kg (116.9 lb)/42,0 kg (92.6 lb)
• Payload (max. weight allowed to be loaded): 70,7 kg (155.9 lb)
• Shipping weight: 158 kg (350 lb)
• Balanced line level input / AES3: 4 / 2 XLR f (Neutrik)
• Balanced line level out / AES3: 4 / 2 XLR m (Neutrik)
• Amplifier outputs: 3 x 2 NL8 (Neutrik speakON)
• Ethernet Connections: 2 x 2 RJ45 (Neutrik etherCON), Primary and secondary
• Network switches: Managed GB switches, Layer-3, 10-port, pre-configured for OMENO/Dante
• Mains Power Inlet -EU: CEE 32A-3phase-230/400V
• Main Power Inlet -US: NEMA L21-30, 208 VAC
• Ambient Temperature Limits: +5°C to +40°C (40°F to 105°F)
• Color: Black
• Dimensions (WxHxD) w/o dolly board in mm: 600 x 558 x 655
• Dimensions (W x H x D) with dolly board in mm: 600 x 718 x 655

Item Includes

• 1x System rack with 3 TGX20 amplifiers, redundant
• 1x OMENO/Dante operation, with removable dolly board for use with NEMA L21-30 mains connector
• 1x 3-phase 208V
