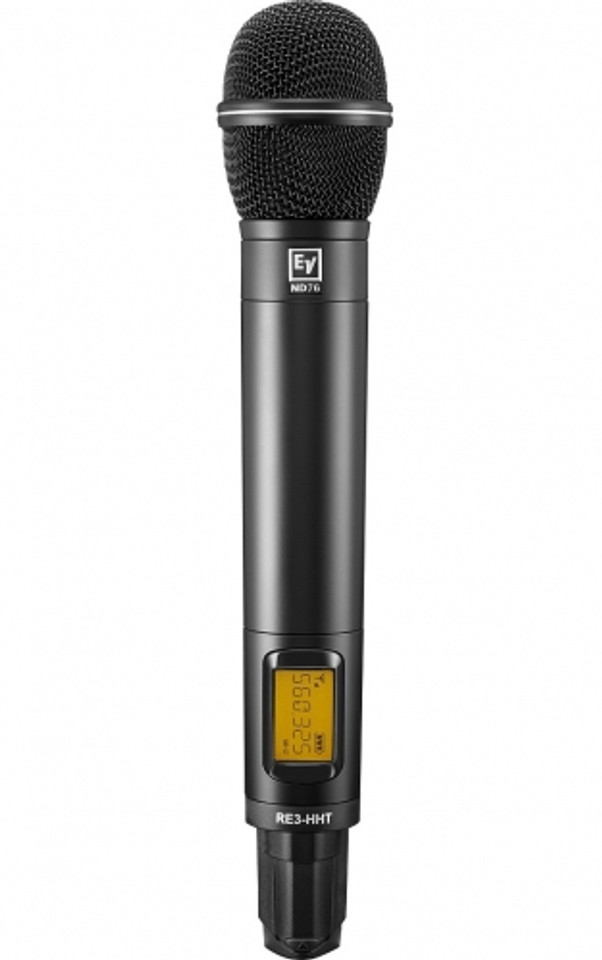

The RE3-HHT765H UHF Wireless Transmitter with ND76 Cardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a dynamic cardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.
Features:
- 1440 Selectable Frequencies
- 36 MHz Tuning Bandwidth
- Robust Metal Body
- Sync Function for Easy Frequency Setup
Specs:
Electro-Voice RE3-HHT765H Specs
System
Wireless Transmission Analog UHF
RF Frequency Band 560 to 596 MHz
RF Bandwidth Up to 36 MHz
Encryption Yes
Modulation Wideband FM
Transmitter
Form Factor Handheld
RF Output Power 10 mW (50 mW Peak, Switchable)
Audio I/O None
Muting Mute Switch
Frequency Response 30 Hz to 17 kHz (Dependent on Mic)
70 Hz to 17 kHz (Dependent on Mic)
Sync Method IR
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Metal
Dimensions 1.5 x 7.5" / 3.8 x 19.1 cm
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Polar Pattern Cardioid
Frequency Range 30 Hz to 17 kHz
Maximum SPL 135.5 dB SPL Peak
Impedance 1000 Ohms
Operating Voltage 4 to 8 V
Length 3.6" / 9.14 cm
Diameter 2.0" / 50.80 mm
Weight 6.5 oz / 0.18 kg
Packaging Info
Package Weight 1.67 lb
Box Dimensions (LxWxH) 10.6 x 6 x 3.2"
