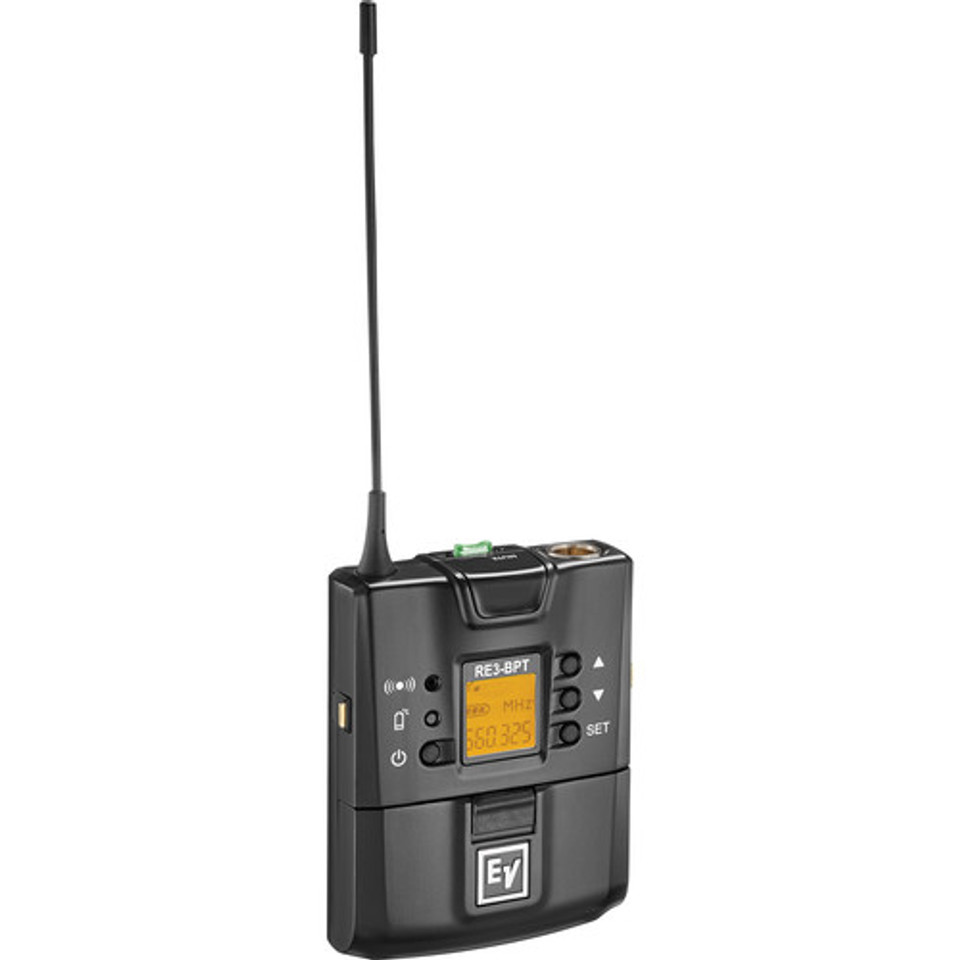

The RE3-BPT-5L Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.
The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.
Features:
- UHF Bodypack Transmitter
- 1440 Selectable Frequencies
- 36 MHz Tuning Bandwidth
- Selectable 10 and 50 mW Output Power
Specs:
Electro-Voice RE3-BPT-5LÂ
System
Wireless Transmission Digital UHF
RF Frequency Band 488 to 524 MHz
RF Bandwidth 36 MHz
Modulation Wideband FM
Transmitter
Form Factor Bodypack
RF Output Power 10 / 50 mW (Switchable)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input
Muting Mute Switch
Sync Method IR
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators 1 x Backlit LED (Channel, Group, Mute)
Housing Metal
Dimensions 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)
Weight 6.1 oz / 172.9 g (with Antenna)
Packaging Info
Package Weight 0.625 lb
Box Dimensions (LxWxH) 10.6 x 3.2 x 2"
