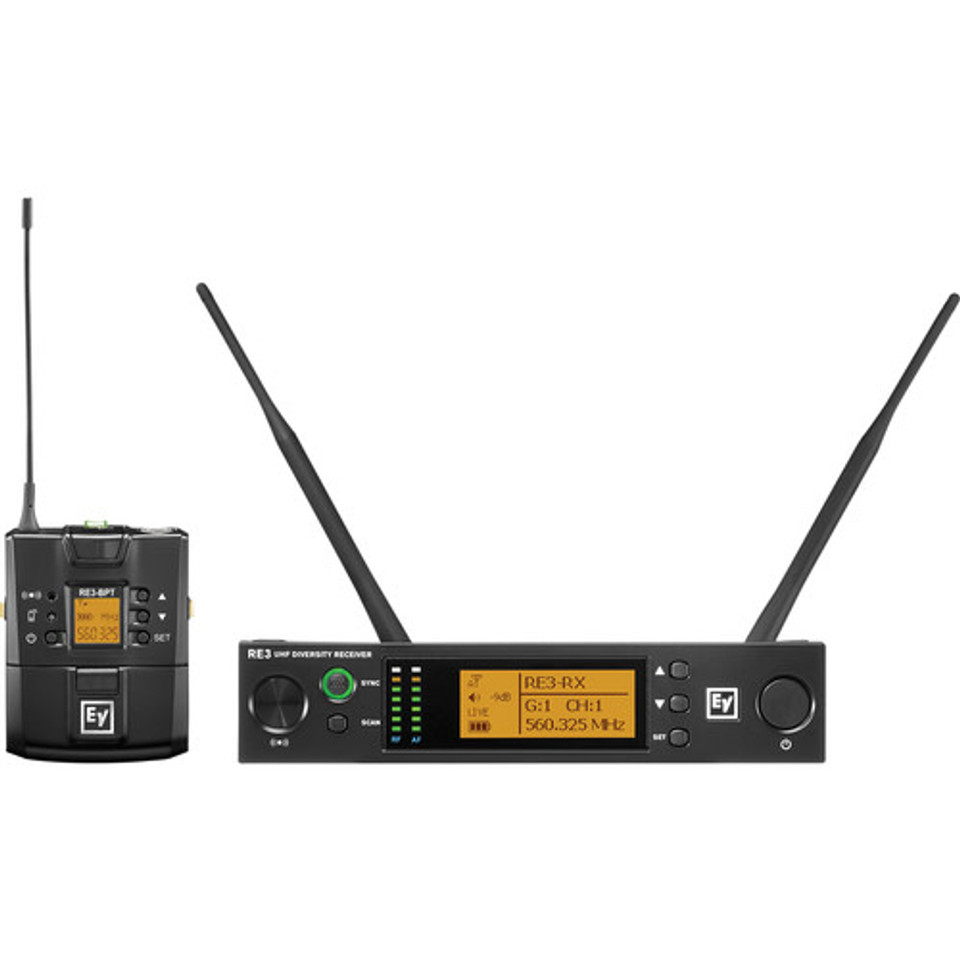

Achieve solid performance and dependability with the Electro-Voice RE3-BPNID (Band 5H: 560 to 596 MHz) UHF bodypack wireless system. Comprised of a rack-mountable diversity receiver and a compact bodypack transmitter, this wireless set is ready for use with your preferred TA4F-equipped lavalier/headworn microphone or instrument cable, making it well suited and adaptable for a variety of applications such as theater, broadcast, film/TV production, concert sound, and more. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPNID minimizes setup time and maximizes workflow efficiency.
Features:
- For Theater, Broadcast & Film Production
- Rack-Mountable Diversity Receiver
- Compact Bodypack Transmitter
- TA4M Input Accepts Mic/Instrument Level
Specs:
Electro-Voice RE3-RX5H Diversity Wireless Receiver (560 To 596 MHz) Specs
System
Wireless Transmission Analog UHF
Number of RF Channels 1440
Diversity Antenna Diversity
RF Frequency Band 560 to 596 MHz
RF Bandwidth Up to 36 MHz
RF Channel Scanning Auto-Scan
Modulation Wideband FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage 12 to 15 VDC
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output
Frequency Response 51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity 81 dBm
RF Output Power Up to 50 mW (Max)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC (Included)
Display & Indicators Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing Metal
Dimensions 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)
Packaging Info
Package Weight 3.395 lb
Box Dimensions (LxWxH) 10.6 x 10.1 x 4.1"
Electro-Voice RE3-BPT-5H Bodypack Transmitter (560 To 596 MHz) Specs
System
Wireless Transmission Analog UHF
RF Frequency Band 560 to 596 MHz
RF Bandwidth 36 MHz
Modulation Wideband FM
Transmitter
Form Factor Bodypack
RF Output Power 10 / 50 mW (Switchable)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting Mute Switch
Sync Method IR
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators 1 x Backlit LED (Channel, Group, Mute)
Housing Metal
Dimensions 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)
Weight 6.1 oz / 172.9 g (with Antenna)
Packaging Info
Package Weight 0.62 lb
Box Dimensions (LxWxH) 10.6 x 3.2 x 2"
