Overview

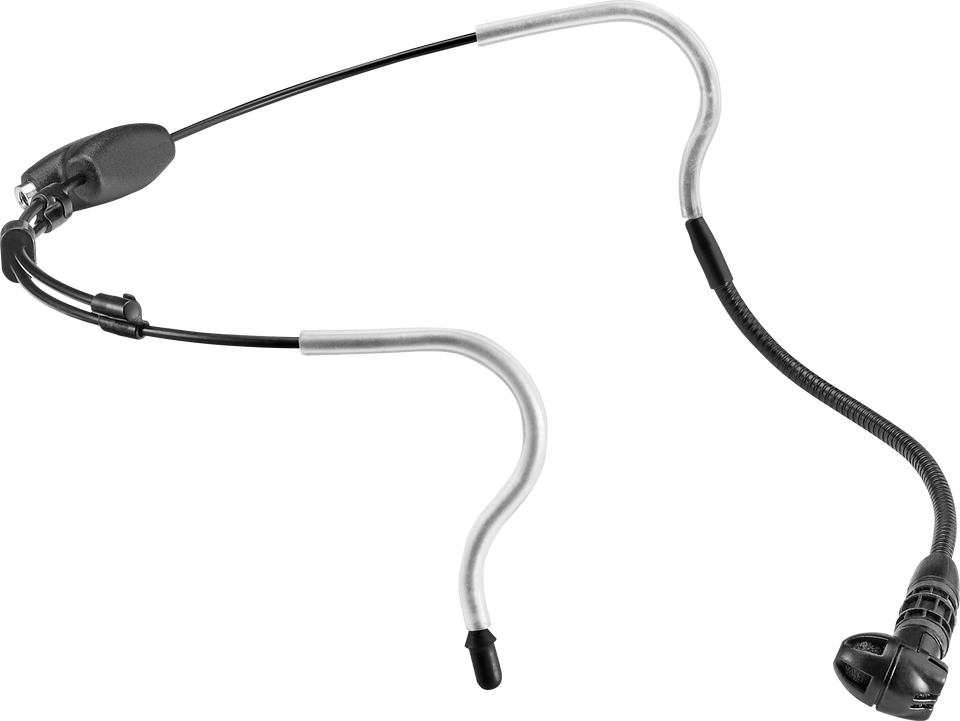

The HW3 is a general-purpose condenser supercardioid headworn vocal microphone which is ideal for presentations, vocal performances, and athletic instruction. Designed for comfort, robust durability and vocal clarity, it sustains rigorous use in a wide variety of applications while delivering crisp, clear, and balanced vocal sound. The sonic signature is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications. The adjustable headband is comfortable to wear, solidly built, and includes a flexible gooseneck boom and shockmounted microphone element, making it an ideal solution for performances and presentations where rigorous activity may be involved. The detachable cable securely connects to the headband with a threaded 2.5 mm plug, and its detachable design helps avoid cable damage during storage and transportation.
The 4-pin mini plug is compatible with all current Electro-Voice bodypack transmitters, as well as many other brands who use the 4-pin mini connector convention. The included foam windscreen effectively reduces wind blasts when needed.
Features
- Condenser supercardioid element delivers an acoustically-isolated, full-bodied sound
- Robust headband fits comfortably and securely
- Flexible gooseneck section makes positioning easy
- Vibration-absorbing shock-mounted microphone head minimizes handling noise
- Detachable cable makes storing and transporting simple and safe
Specifications
- Element type: Self-biased condenser
- Frequency response: 30 Hz - 18 kHz
- Polar pattern: Supercardioid
- Sensitivity; open circuitvoltage. 1 kHz: 0.5 mV/Pascal (-47 dBV/PA)
- Maximum SPL: 130 dB SPL
- Impedance: 1000 ohms
- Power requirements: 3-9 VDC
- Polarity: Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1
- Electrical contact pinouts:
- Pin #1 - Ground, shield
- Pin #2 - Audio
- Pin #3 - Bias voltage
- Pin #4 - N/C
- Dimensions (cable length): 45.28" (1150 mm)
- Dimensions (boom length): 5.83" (148 mm)
- Net weight: 1.35 oz (38.4 g)
- Shipping weight: 5.93 oz (168 g)
- Microphone connector: 4-pin mini plug
- Head finish: Non-reflecting Black
