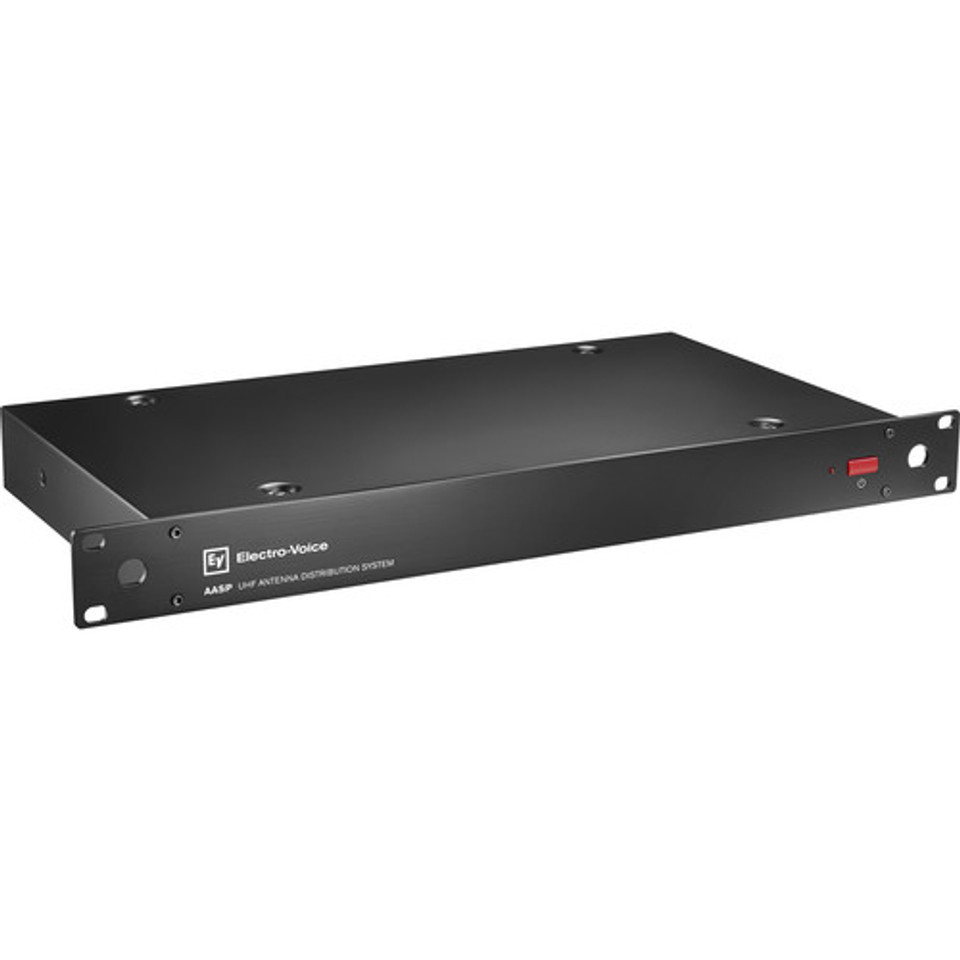

The RE3-ACC-AASP 2-In x 8-Out Antenna Splitter from Electro-Voice is a professional wide bandwidth active antenna splitter designed to function as the distribution hub of RF and DC power in a multichannel wireless microphone system. It can be used to actively split each incoming antenna signal (A and B) into four connected diversity receivers in a system without signal loss as well as distributing DC to power each of the four connected wireless receivers.
Features:
- Splits Two Antennas to Four Receivers
- DC Power to Four Wireless Receivers
- Booster Feed to Active Antennas/Boosters
- Cascade Output per Antenna
Specs:
Electro-Voice F.01U.353.087Â
Frequency Range 470 to 960 MHz
RF Output Gain 3 dB (±2 dB)
Cascade Output Level: 0 dB (±2 dB)
Output Connection Isolation: 25 dB
Third Order Intercept Point 24 dBm
Impedance 50 Ohms
Output Voltage 4 x 12 VDC, 1 A
Antenna Booster DC Voltage 12 V
Dimensions (L x W x D) 18.9 x 8.9 x 1.7" / 48.1 x 22.7 x 4.3 cm
Weight 6.8 lb / 3.1 kg
