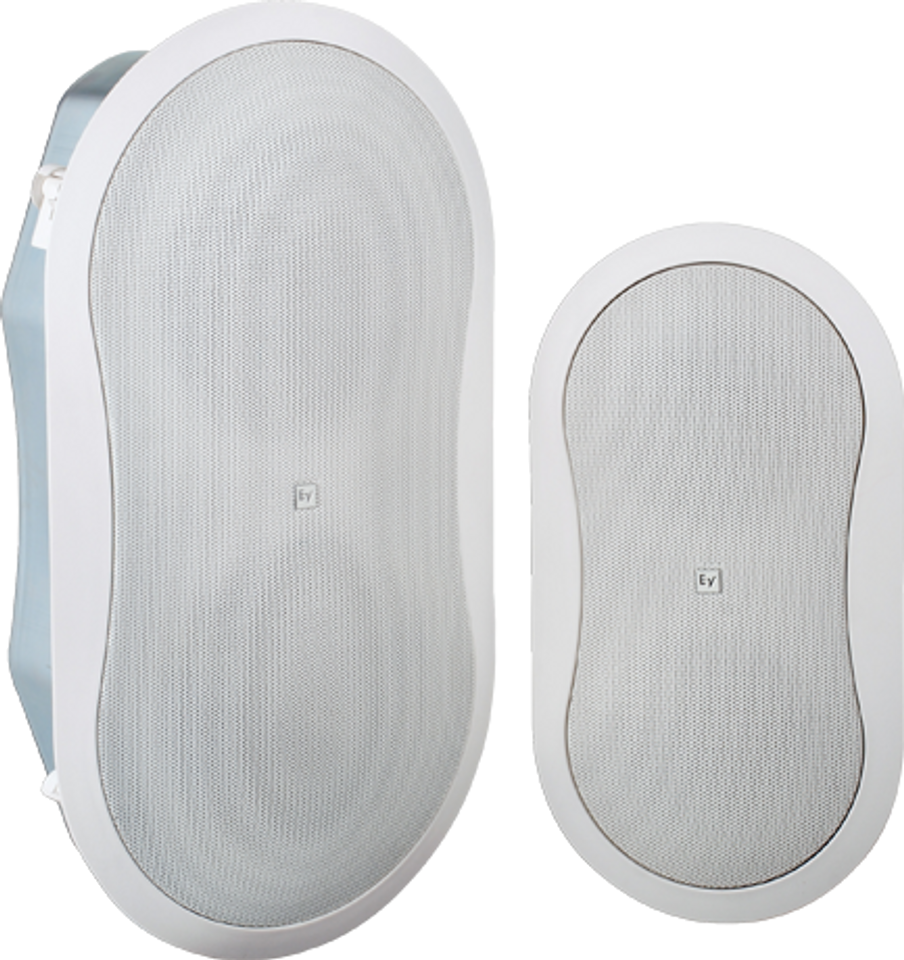

Features
- Shallow profile, ideal for tight wall or ceiling spaces
- Tuned passive radiator extends bass, enhances performance
- High quality 1-inch titanium dome tweeter
- Full-bandwidth overload protection
- 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
- Front-panel mode/wattage selector
- Fully-sealed enclosure provides superior isolation to protect adjacent rooms
- Secure Phoenix-style pass-through connectors for easy wiring and installation.
- Four point “quick mounting” tabs for fast attachment in any wall cavity
- Can-mounted transformer for enhanced rigidity
- Ribbed back can eliminates flexing
Specifications
| Width | 256mm (10.08") |
| Height | 465mm (18.31") |
| Available Color | White |
| Coverage (Nominal -6 dB) H | 120° |
| Coverage (Nominal -6 dB) V | 120° |
| Enclosure Material | Zinc Plated Metal |
| HF Power Handling | 1-inch (Titanium dome)Watts |
| HF Transducer | 1 inch Titanium dome tweeter |
| Input Connections | 4-pin Phoenix |
| LF Power Handling | 6 inch, plus 6-inch passiveWatts |
| LF Transducer | 6 inch with 6 inch passive radiator |
| Max. SPL/1m (calc) | 115dB |
| Nominal Impedance (Passive) | 8Ω |
| Power Rating | 300W |
| Sensitivity 1 W/1 m | 90dB |
| System Power Handling (Continuous/Program/Peak) | 75//300Watts |
| Transformer Taps (Transformer Version Only) | 7.5, 15, 30, 60 w at 70 v |
