Overview

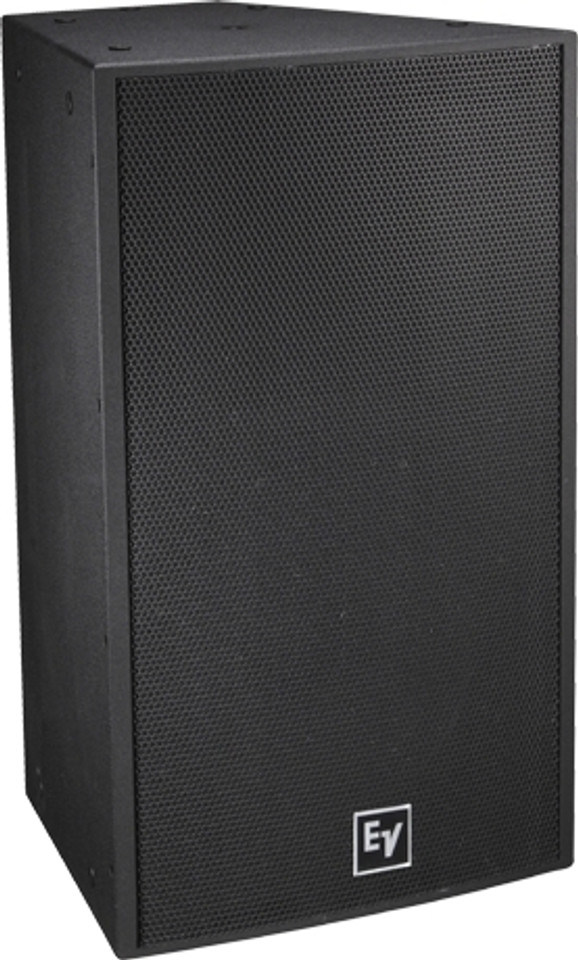

EVF-1152D/94 features a 90° x 40° rotatable waveguide, design for medium field medium throw raw spread coverage pattern.
Features
- Compact and lightweight
- Low distortion, high efficiency
- Ideal for fixed installations
- DVX3151A woofer with fully symmetric drive
- 3-inch DH7N titanium/neodymium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 40º to 90º
- 100 dB sensitivity, 134 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- 4th-order crossover with HF protection
- Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
- M10 threaded suspension points (22)
- Transformer kit available for distributed systems
Specifications
| Frequency Range (-10 dB) | 40 - 21000kHz |
| Weight Net | 75.84lbs (34.4kg) |
| Depth | 18.37" (466.6mm) |
| Width | 18.5" (469.8mm) |
| Height | 30.26" (768.6mm) |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 40° |
| Crossover Frequency | 1300Hz |
| Enclosure Material | 13-ply weather-resistant birch with EVCoat |
| Environmental Specs | Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55 |
| Frequency Response (-3 dB) | 70 - 18000Hz |
| Grille | 16 GA powder-coated galvanneal with screen behind |
| HF Transducer | DH7N 3-inch (76mm) diaphragm compression driver |
| Input Connections | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
| LF Nominal Impedance | 8Ω |
| LF Transducer | DVX3151A 15-inch (381 mm) woofer |
| Max. SPL/1m (calc) | 134dB |
| Minimum Impedance | 6Ω |
| Nominal Impedance (Passive) | 8Ω |
| Passive Power Handling | 2400W peak |
| Recommended High-Pass Frequency | 45Hz |
| Sensitivity 1 W/1 m | 100dB |
| Shipping Weight | 86.2lbs (39.1kg) |
| Speaker Type | Full-Range, Two-Way |
| Suspension | (22) M10 threaded suspension points |
| System Power Handling (Continuous/Program/Peak) | 600/1200/2400 Watts |
| Weatherized | No |
