Overview

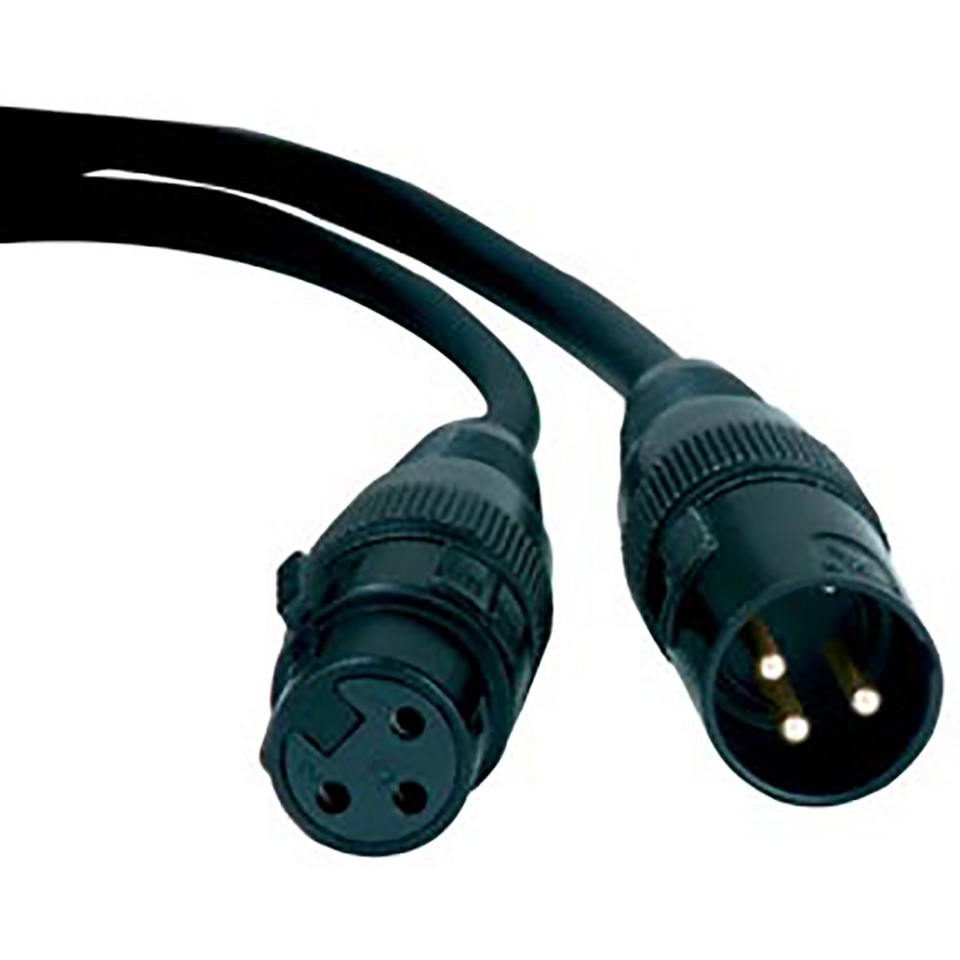

ACCU CABLE™ 3pin DMX cable with 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket. Available in 25 (82 meter) lengths.
Features
-
AC3PDMX25 - 25 ft (82m) 3pin DMX Cable
-
Insulation Material: PE Polyethylene
-
Outer Jacket Material:PVC-Polyvinyl Chloride
-
Overall Nominal Diameter:0.229"
-
Nominal Characteristic Impedance: 110 Ohms
-
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
-
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
-
Nominal Velocity of Propagation: 66%
-
Nominal Delay: 1.6 Nanoseconds per foot
-
Nominal Conductor DC Resistance @ 20°C: 24 Ohms/1000 ft
-
Nominal Outer Shield DC Resistance @ 20°C: 3.4 Ohms/ 1000 ft
-
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
-
Maximum Recommended Current: 2.1 amps per conductor @ 25°C
Specifications
| Number of Pairs | 1 |
| Total Number of Conductors | 2 |
| AWG | 22 |
| Stranding | 0.15 x 19 |
| Diameter | .0354" |
| Material | TC-Tinned Copper |
| Material | PE Polyethylene |
| Diameter | .055" |
| Pair Color Code | Black/White |
| Operating Temperature Range | (-30°C To +75°C) |
| Bulk Cable Weight | 31 lbs/1000 |
| Minimum Bend Radius (Install) | 3.2" |
| Maximum Recommended Pull Tension | 72 lbs |
