Overview

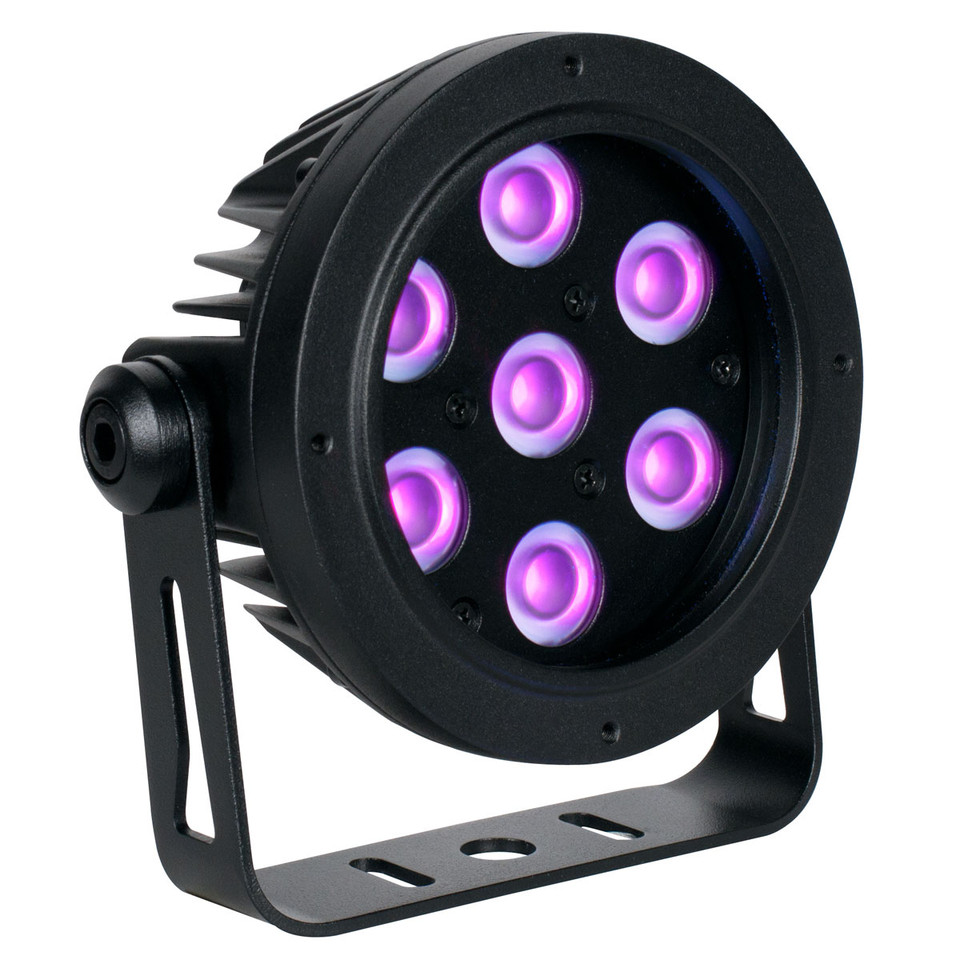

PRISMA MINI PAR 45™ is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 45-degree beam angle.
Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, 'Not Included'
Features
IP65 Rated Exterior High-Power UV Wash Par Luminaire
7x 2 Watt LEDS
19 Watt Max Power Consumption
9' 22 Gauge 2 Conductor wire with Phoenix connector
45 Degree Wide Beam Angle
365nm True UV Peak Wavelength
Zero Visible Light Output
Specifications
SOURCE
7x 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
45 Degree Wide Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support
CONNECTIONS
9' 22 AWG 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 22 AWG
Maximum Distance From Driver to Fixture: 40'
SIZE / WEIGHT
Length: 5.66 in. (144mm)
Width: 2.86 in. (72.8mm)
Vertical Height: 5.64 in. (143.3mm)
Weight: 1.98 lbs. (0.9kg)
ELECTRICAL
DC 25V (Via Pixel Driver 8)
19 Watt Max Power Consumption
THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
