Overview

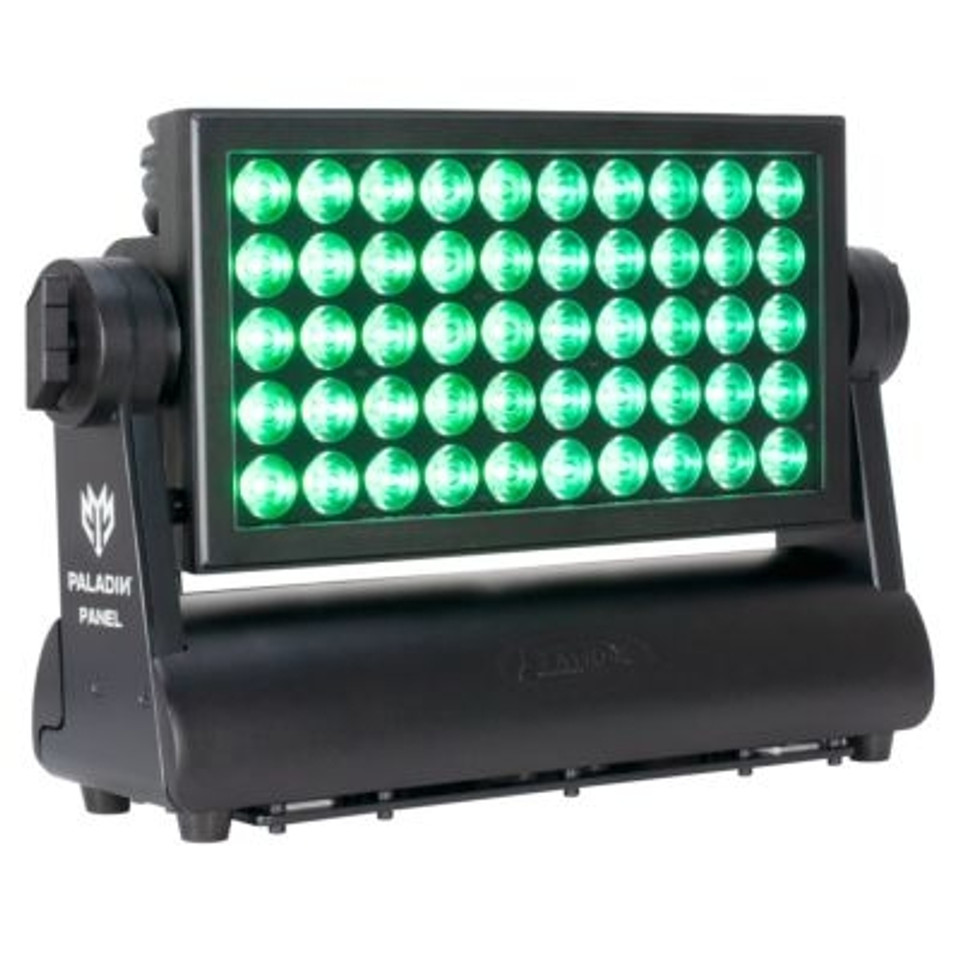

The PALADIN Panel™ is a compact and powerful outdoor floodlight for a wide variety of applications. Using 50x15W RGBW cells it provides a total output of 21,300 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or be hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Panel also a versatile effects fixture or audience blinder.

Features

• 750W RGBW Flood Light
• Multicell Control
• Rugged IP65 Design for Outdoor Events
• Floor Standing or Mountable in any Orientation

Specifications

SOURCE

• 50x 15W RGBW LED Emitters
• 50,000 Hour Average LED Life*

PHOTOMETRIC DATA (estimated)

• 6,000K Color Temperature
• 21,300 Total Lumen Output, CRI 71
• 14° Beam 23° Field Angle (without diffuser)
• 22° Beam 45° Field Angle (with diffuser)

CONTROL / CONNECTIONS

• 11 DMX Channel Modes
• 5x2 cell control
• DMX, RDM Protocol Support
• Standalone and Master / Slave Operation
• 4 Button OLED Control Display
• 5pin IP65 DMX In/Out
• Seetronic IP65 Power In
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 20.5” (522mm)
• Height: 14.2” (360mm)
• Depth: 5.5” (140mm)
• Weight 33.0 lbs. (15kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 800W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• APPROVALS / RATINGS
• CE | cETLus (pending) | IP65
