Overview

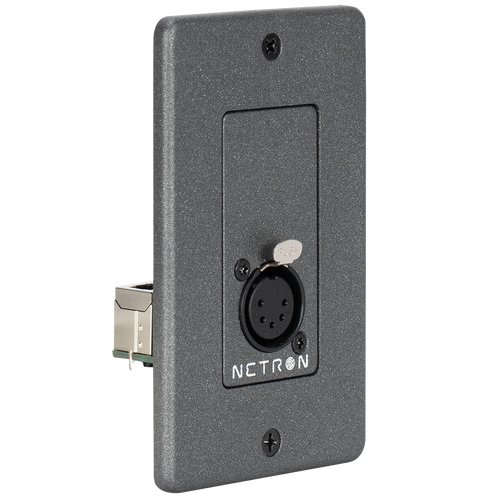

The NETRON WP1DO provides a 5pin DMX Output connector in a Decora insert plate.Designed as a simple DMX passthrough it is easy to integrate into any DMX infrastructure. 3pin Phoenix, 3pin IDC and RJ45 ESTA compliant DMX are all provided to offer the most flexibility to system integrators.
A matching NETRON Decora wall plate is included for a seamless and clean installation.
Features
1-Gang DMX Output connectorTerminal and RJ45 DMX input
Powder-coated aluminum
For technical details and documentation of NETRON devices please visit
https://obsidiancontrol.com/netron
Specifications
Mounting
In-Wall 1-Gang (US)
Connections
Front
(1) 5pin DMX Out
Back
(1) Terminal Block
(1) RJ45 DMX
Physical
1-Gang
Length: 2.3 in. (60mm)
Width: 1.64 in. (34.8mm)
Height: 4.3 in. (108.5mm)
Weight: 0.22 lbs. (0.1kg)
Approvals / Ratings
CE / CETLUS / UKCA / IP20
Included Items
Netron Decora 1-Gang wall plate
(1) Screw Terminal with security screws
(1) IDC Connector with security screws
Specifications and documentation subject to change without notice.
