Overview

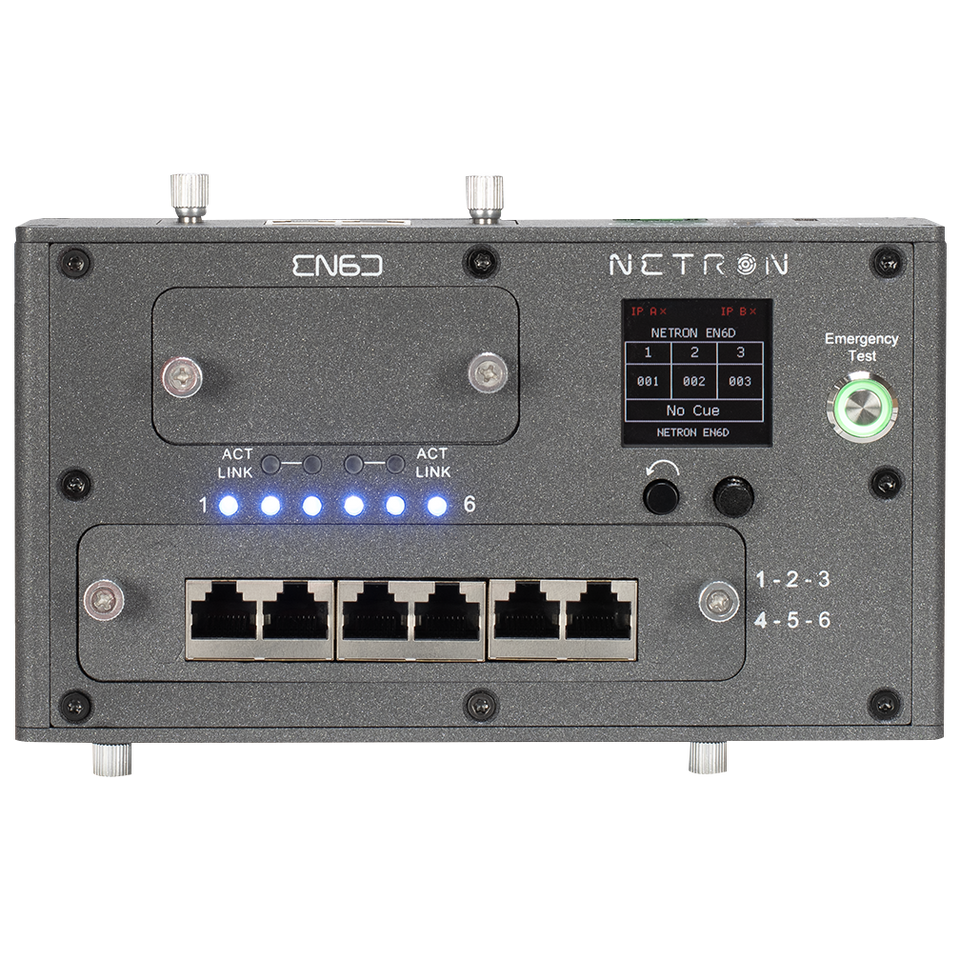

The Netron EN6D is a powerful DIN Rail or Wall Mount Ethernet to DMX gateway with six RDM compatible wire terminal or RJ45 outputs.Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for permanent installations requiring a compact design and flexible wiring options.
The innovate connector configurations allow the NETRON EN6D to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the EN6D, depending on installer preference or space considerations.
Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON EN6D can be powered by POE or the wide range DC Input from 9-48V.
The innovate connector configurations allow the NETRON EN6D to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the EN6D, depending on installer preference or space considerations.
Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON EN6D can be powered by POE or the wide range DC Input from 9-48V.
The NETRON EN6D is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue or set all DMX channels to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.
Features
RJ45, screw terminal or IDC connectivity
Configurable Top, Bottom and Front ports
RDM, Artnet and sACN support
Factory and user presets for plug and play setup
POE or 9-48V DC power
1.3” OLED Display with rotary knob
99 Internal cues with fade and delay time
Emergency Cue System with test button and contact closure
Remote configuration via internal webpage
Powder-coated aluminum DIN Rail housing
Unlocks ONYX NOVA 4-Universe License
For technical details and documentation of NETRON devices please visit
https://obsidiancontrol.com/netron
Specifications
Mounting
DIN Rail
Wall-mount
Connections
Front
Full color 1.3" OLED display
Encoder w. Push to Select / Exit Button
6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate
Top
(2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate
DC In (2pin Terminal Block)
USB-C (5V/2A)
Bottom
6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
Emergency Contact (3pin Terminal Block, Dry Contact or 12V)
Physical
Length: 116 mm (4.7 in.)
Width: 143mm (5.6 in.)
Height: 52 mm (2.1 in.)
Weight: kg ( lbs)
Electrical
POE 802.3af
DC 9-48V
USB-C (5V/2A)
Approvals / Ratings
cETLus / CE / IP20 / UL924
Included Items
(2) DIN Rail clamps
(2) Wall mount plates
6-port RJ45 Connection plate
6-port Terminal Block Connection plate
(6) Screw Terminal with security screws
(6) IDC Connector with security screws
Specifications and documentation subject to change without notice.
