Overview

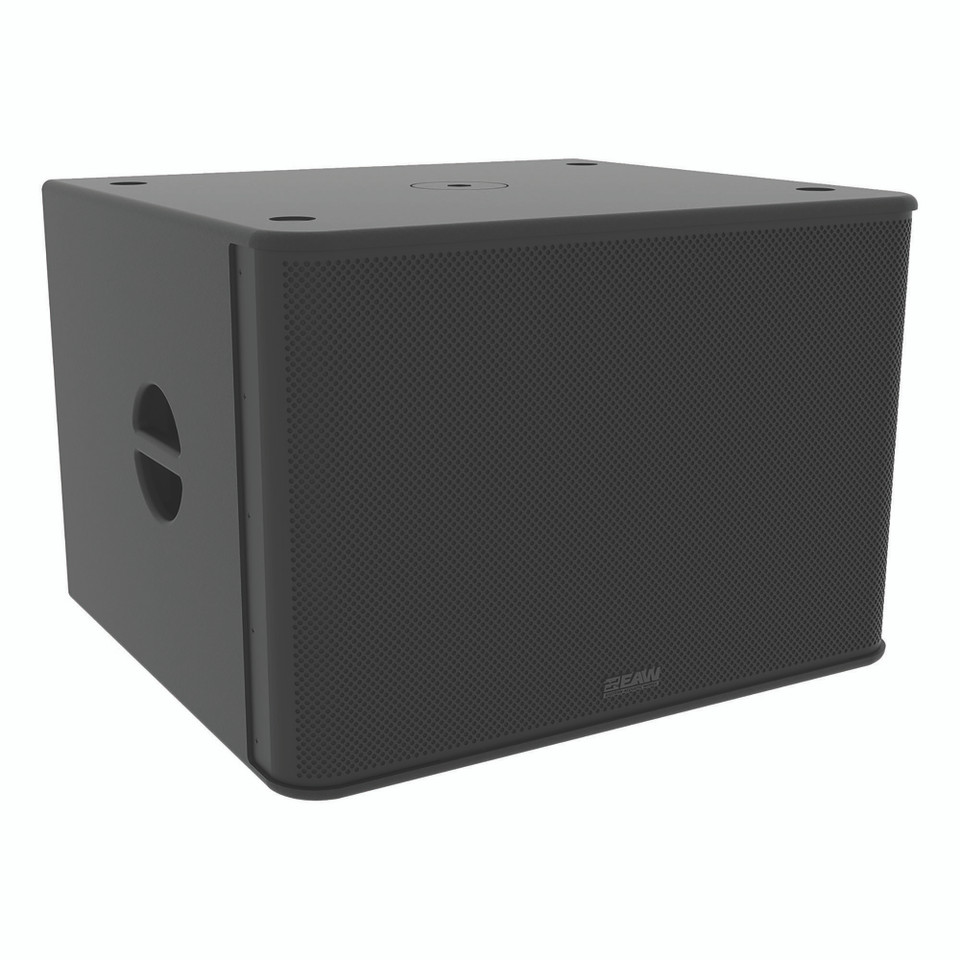

The RS Series low frequency enclosures deliver EAW signature performance in a portable and lightweight package. Each enclosure in the series is first designed around the latest powerful transducers with enhanced motor strength that optimizes system weight and low frequency output. The RS Series low frequency enclosures include on-board 1500 watt (RS115) and 2500 watt (RS118HP) amplified electronics engineered to meet the demanding performance needs of professionals.

• Premium transducers and signature EAW DynO™ dynamic optimization processing
• 1500 or 2500 watts of Class-D Power Factor Corrected amplification
• Ergonomic handles, rugged grille, RoadCoat enclosure, pole cup, and optional casters
• Companion products RS Series loudspeakers

The RS Series low frequency enclosures deliver EAW signature performance in a portable and lightweight package. Each enclosure in the series is first designed around the latest powerful transducers with enhanced motor strength that optimizes system weight and low frequency output. The RS Series low frequency enclosures include on-board 1500 watt amplified electronics engineered to meet the demanding performance needs of professionals.

The RS Series features meticulously tuned vented enclosures, as well EAW signature DynO™ algorithms optimize the power transfer from amplifiers to transducers for improved headroom and integrity of sound at maximum output.

Our Resolution software platform is a powerful and easy-to-use simulation tool that accurately predicts the performance of one or multiple RS Series low frequency enclosures within a venue or performance space.

Applications

• Concerts
• Corporate AV
• Live Clubs
• Concert Halls
• Theaters
• Auditoriums
• Houses of Worship
• Festivals

Accessories

• Caster Kit
• Soft Cover
• M20 Positive Threaded Pole Mount

Specifications

Frequency Response

40 Hz -125 Hz

Max SPL

132dB (peak, half space)

Operating Mode

VLF

Subsystem

15in Cone, 3 in Voice Coil, Vented

Nominal Beamwidth

Horizontal 360°
Vertical 360°

Power Handling

1500W

Connections

IEC AC Mains Connector
XLR Input L/R
XLR Thru/Xover

Dimensions

Height: 17.7 in (450 mm)
Width: 24.8 in (630 mm)
Depth: 23.6 in (599 mm)

Weight

70 lbs (32 kg)
