Overview

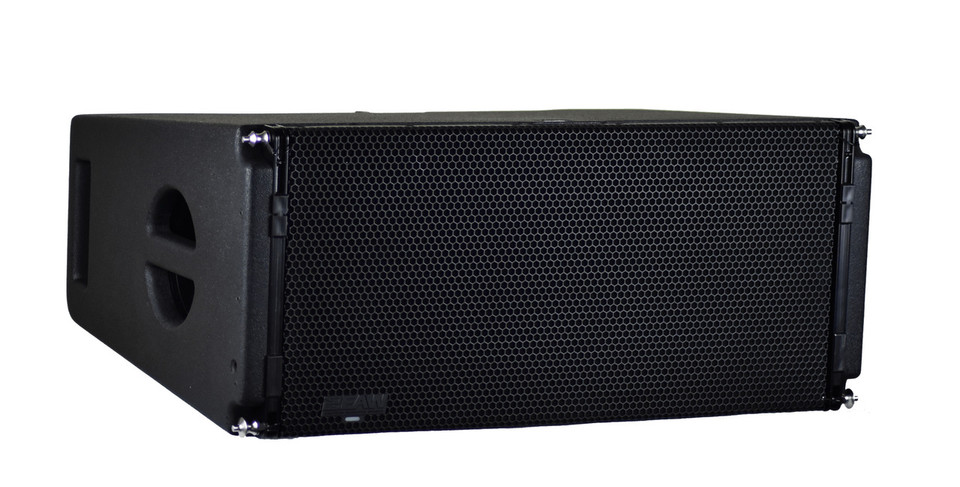

NTX210L is designed to help modern production and integration companies successfully conduct more business by being fast to deploy while delivering high performance.

Different from other powered line array products, patented Optilogic technology allows each loudspeaker to communicate with the loudspeakers around it.  This reduces setup and tuning time, opportunities for errors, all while maximizing array performance.

Features

• Optilogic array technology
• Dante loop through
• High output per line-length
• Clean professional look
• Isophasic wave guide

Specifications

Frequency Response

55HZ–18kHz

Max SPL

140 dB

Operating Mode

Bi-amp LF,HF

Subsystem

LF 2×10″ cone, 2.5″ VC Vented
HF 1×1.4″ exit, 3″ VC compression drivers Isophasic Wave Guide

Nominal Beamwidth

Horizontal: 90°
Vertical: 12°

Power Handling

LF:1200W
HF:400W

Connections

AC Mains: Neutrik PowerCON TRUE1 TOP
Ethernet/Dante
XLR/Analog

Dimensions

Height: 12.3in (314mm)
Width: 28.3in (720mm)
Depth: 20.5in (520mm)

Weight

64Ibs
